18
Component Detailed Description
Camera Unit Front Components
Area D - Optical Link Signal Strength Indicator & Power Switch

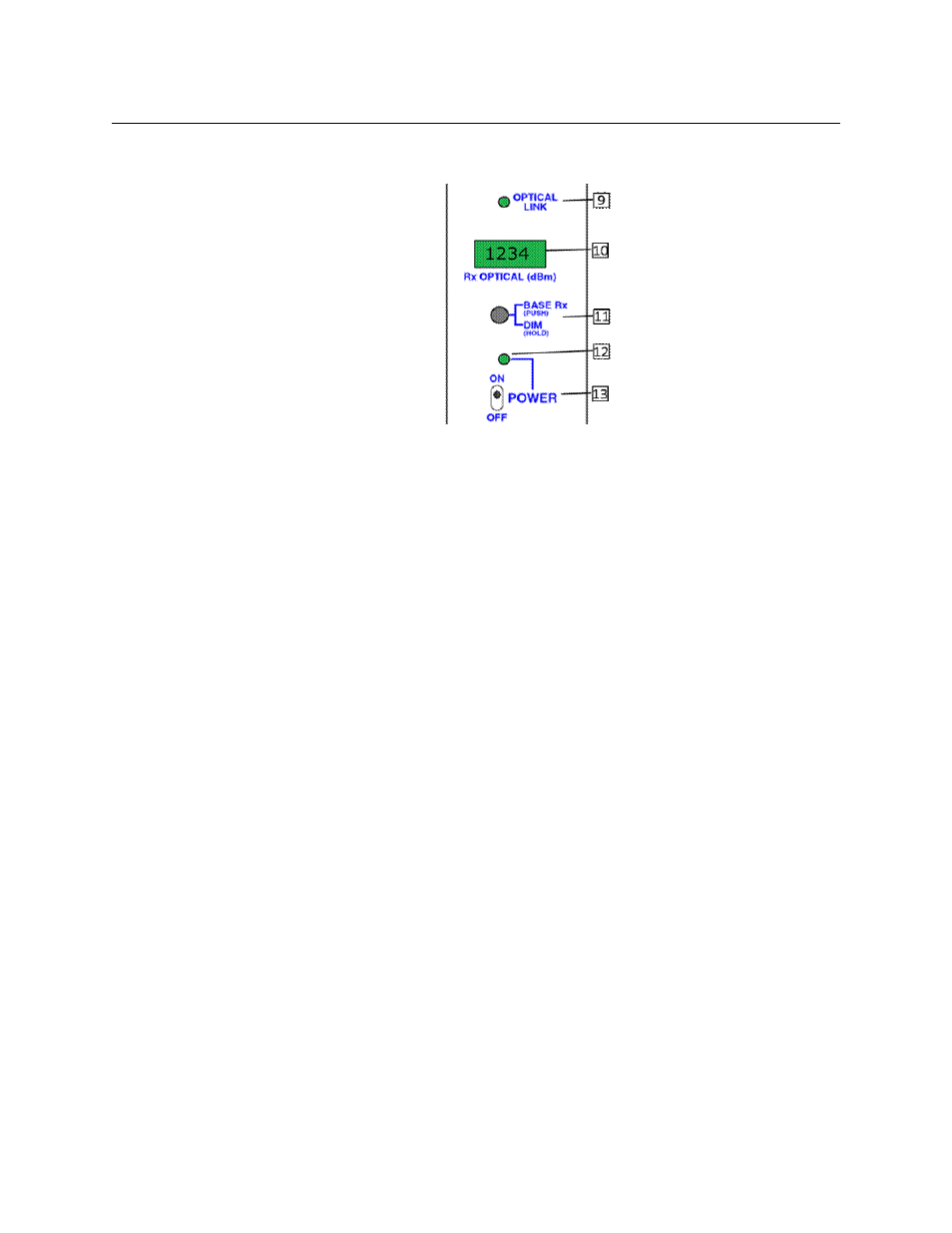

Fig. 3-6: Optical Link Signal Strength Indicator & Power Switch
• 9 - Optical Link Indicator: indicates the status of the optical connection from base to
camera and camera to base.
• Green: both the Base Station and camera control unit have optical power within
normal range.
• Red: either the Base Station or camera control unit optical power is not within
normal range.
• 10 - Rx Optical Display (Digital Status Display): the four-character display in one of five
modes. See A Brief Guide to Measurement of Fiber Optic Signal Strength on page 69 for
use of this Digital Status Display.
• 11 - Base Rx/Dim Push Button: Change four-character display mode. Push and release
changes display mode. Push and hold adjusts LED indicator brightness.
• 12 - Power Indicator LED:
• Green indicates power is applied to the camera control unit.
• Blinking Green indicates a Camera Unit error. Refer to DIAG display mode for
details ( The CopperHead 3400 Camera Unit Digital Display on page 74).
• 13 - Power On/Off Switch: Toggle switch to enable or disable camera power.
• When used with the high voltage Base Station, this enables or disables camera
power.
• When used with the low voltage Base Station, this turns camera power on and off.
