33
CopperHead 3400
User Guide
Rear Panel Section D – Audio/Intercom Connectors

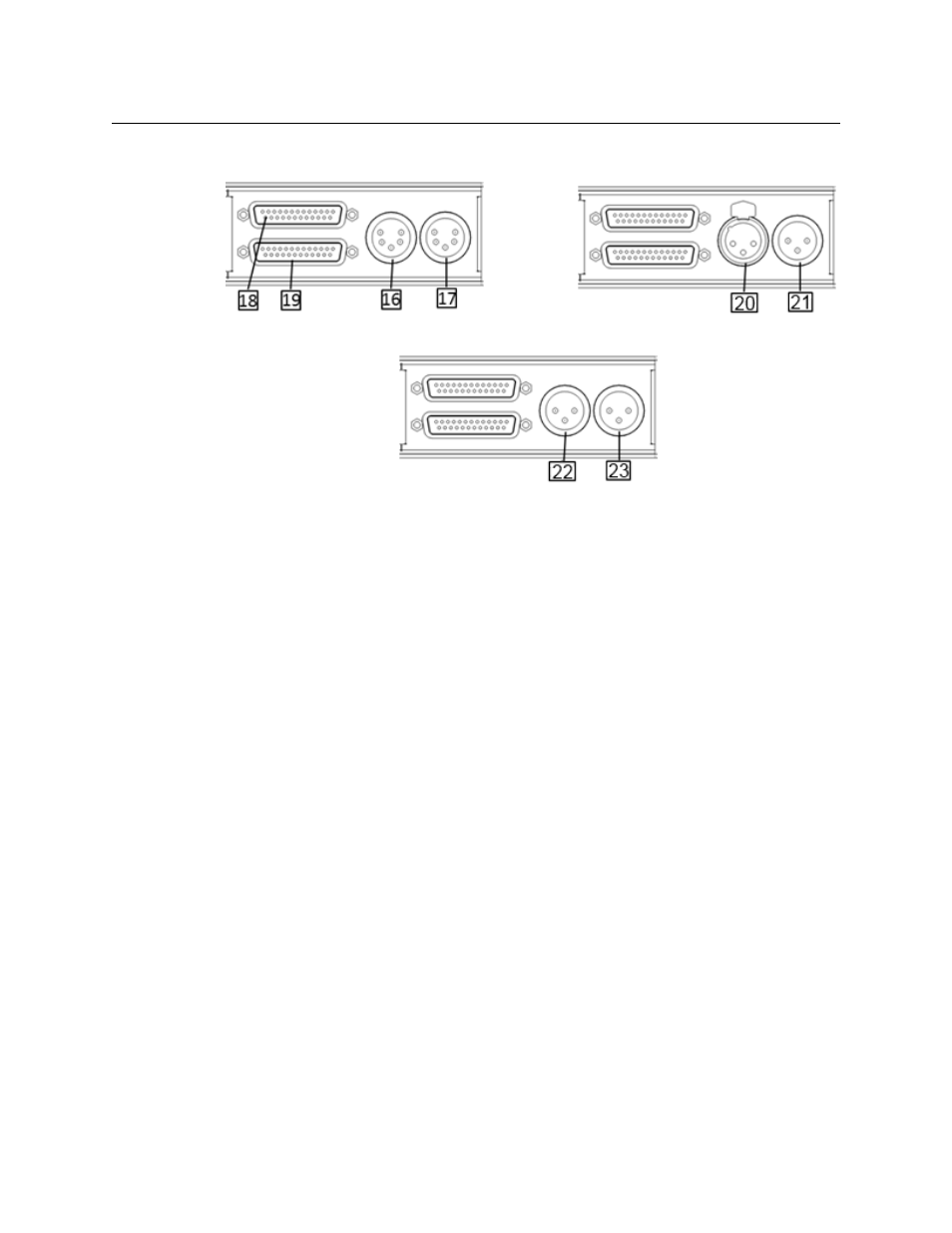

Fig. 3-26: Audio/Intercom Connectors
The CopperHead 3400 Base Station can be configured with one of three different Intercom
Options. The connection and practical use of each of these options is covered in
Multi-Pin
Connectors: Suggested Wiring on page 92.
• Four Wire Intercom Module
• 16 - Ch-1 Intercom connector
• 17 - Ch-2 Intercom connector
• 18 - Audio In Multi-pin connector
• 19 - Audio Out Multi-pin connector
• RTS TW Intercom Module
• 20 - Intercom Input
• 21 - Intercom Loop Through
• Clear-Com Intercom Module
• 22 - Ch-A Intercom Connector
• 23 - Ch-B intercom Connector
Four Wire Intercom Module RTS TW Intercom Module
Clear-Com Intercom Module
