27
CopperHead 3400
User Guide
• 9 - Genlock: monitors Genlock signal (one way from Base Station to Camera).
• 10 - Prompter: monitors Prompter Feed (one way from Base Station to Camera).
• 11 - GPI: monitors the GPI signals to and from Base Station and Camera Unit.
• 12 - Time Code: monitors the time code signal generated by the Camera coming to the
Base Station, and monitors the Base or House time code from the Base Station to the
Camera Unit.
Front Panel Section D – Signal Strength Indicators/Setup

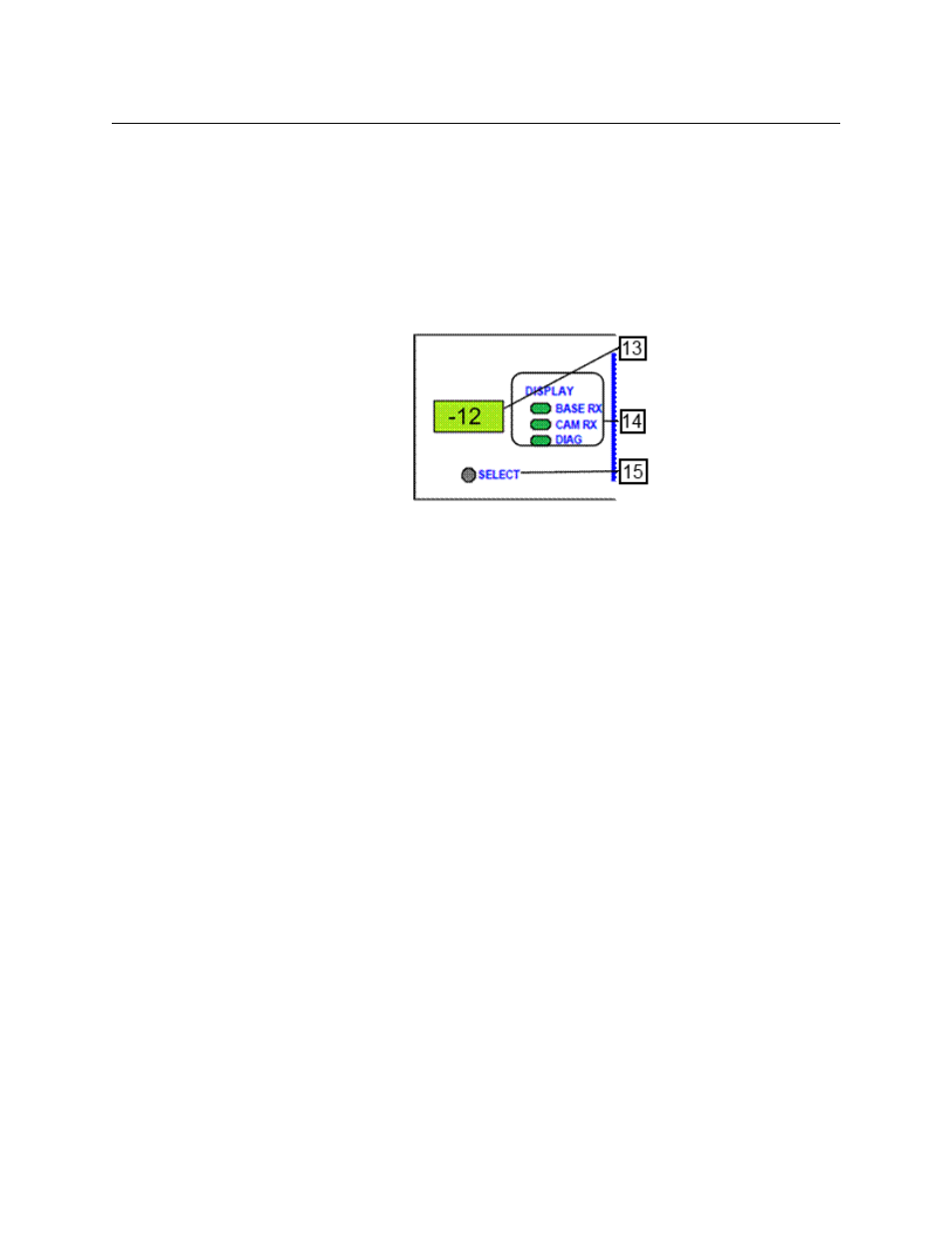

Fig. 3-19: Signal Strength Indicators/Setup
• 13 - Signal Strength Readout in dBm : display changes between display modes when
selected.
• 14 - Readout Function Indicator
• BASE RX – Optical Link signal strength received at Base Station from Camera Unit
• CAM RX – Optical Link signal strength received at Camera from Base Station
• DIAG – Digital display is in Diagnostic mode
• 15 - Select Button : chooses between three modes of operation.
For details on how the setup/Diagnostic functions operate, see A Brief Guide to
Measurement of Fiber Optic Signal Strength on page 69.
