31

CopperHead 3400

User Guide

Rear Panel Section A - Internal Power Options

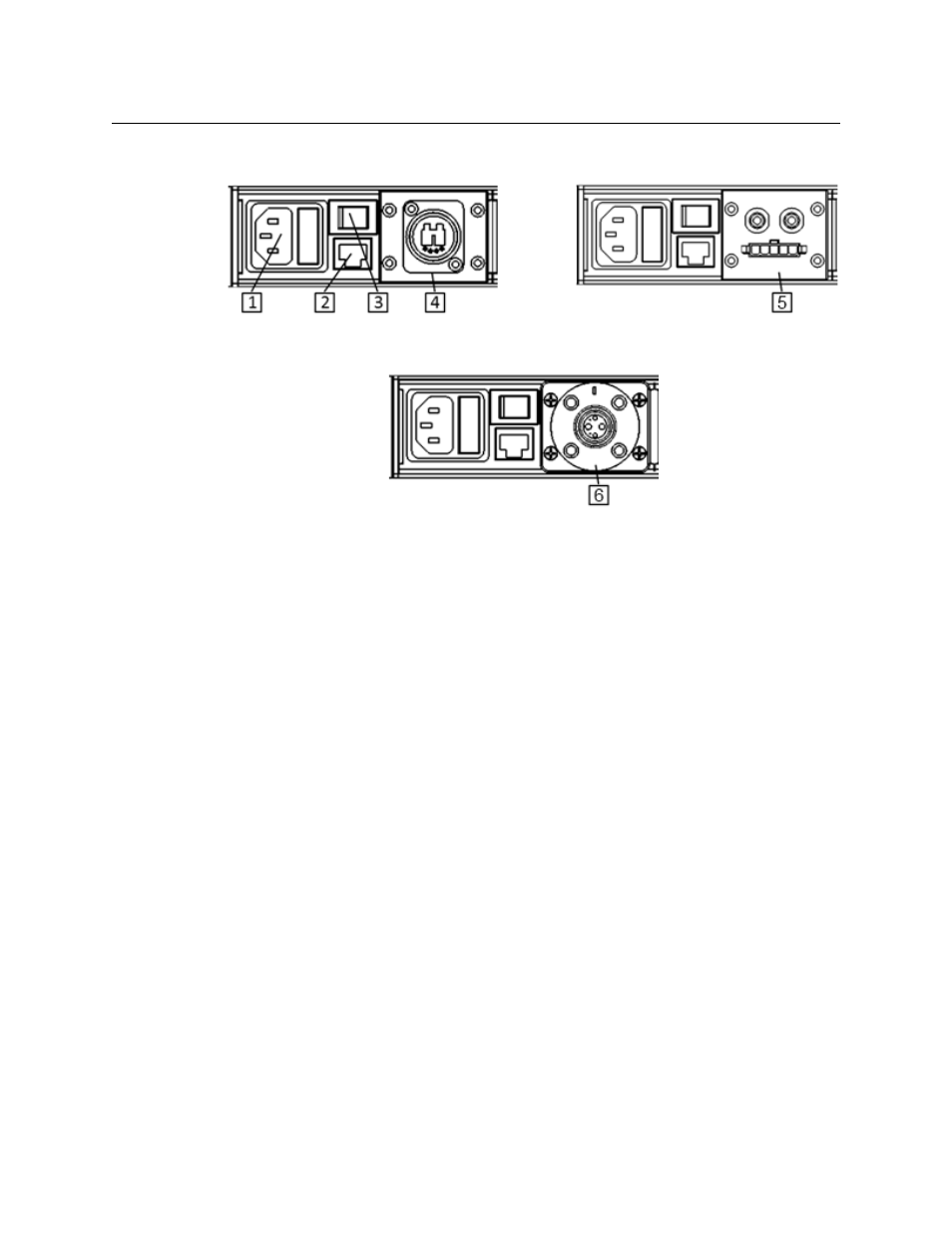

Fig. 3-23: Internal Power Options

• Internal Power with OpticalCON Connector

1 - AC Power Receptacle and 4AMP Dual Fuse Assembly 100-240V 50/60 Hz: see

Power Fuses

on page 4 for the Fuse Specification.

• 2 - For Future Use

• 3 - AC Mains Switch

• 4 - OpticalCON Connector

• Internal Power with STs and Molex Connectors

• 5 - STs Connector with Molex for Camera power

• Internal Power with SMPTE 304M Connector

• 6 - SMPTE 304M Connector

Internal Power with
OpticalCON Connector

Internal Power with STs
and Molex Connectors

Internal Power with
SMPTE 304M Connector
