25
CopperHead 3400
User Guide
Base Station
The CopperHead 3400 Base Station is available with a number of options. The unit is
ordered with a specified Power Module, Audio/Intercom Module, and Fiber Connector.
For an overall view of component location, see the overall diagrams in Diagrams on
page 106.
Base Station Front Panel

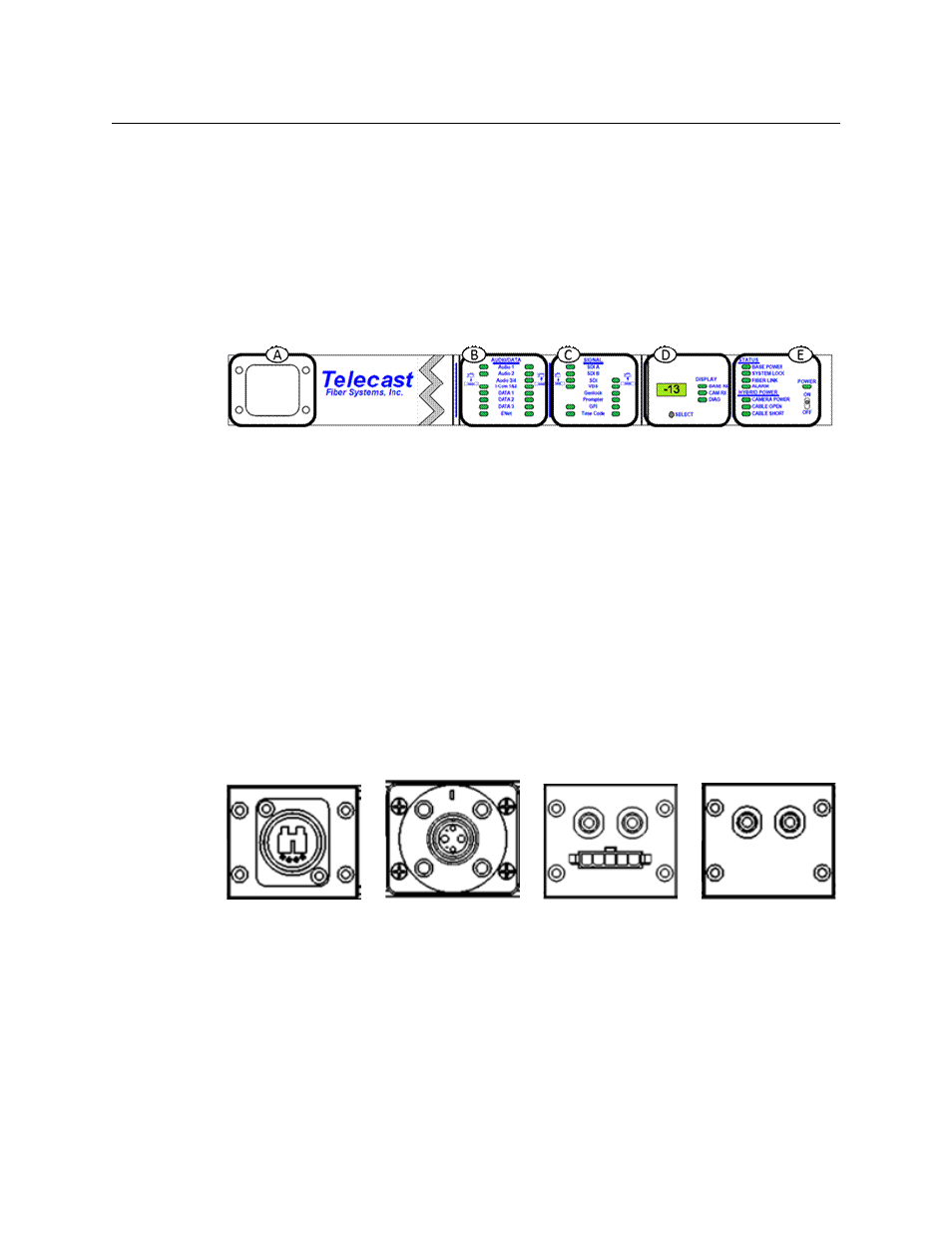

Fig. 3-15: - CopperHead 3400 Base Station Front Panel
• A - Optical Connector (see Front Panel Section A – Optical Connector (Optional) on
page 25)
• B - Audio Indicators (see Front Panel Section B – Audio Indicators on page 26)
• C - Video/Data Indicators (see Front Panel Section C – Video/Data Indicators on
page 26)
• D - Signal Strength Indicators/Setup (see Front Panel Section D – Signal Strength
Indicators/Setup on page 27)
• E - Status/Power Indicators (see Front Panel Section E – Status/Power Indicators on
page 28)
Front Panel Section A – Optical Connector (Optional)
Area A of the CopperHead 3400 Base Station provides for the optional mounting of the
Fiber Optical Connector on the front of the Base Station instead of the rear of the Base
Station.
Fig. 3-16: Fiber Connector Types
For information on how to relocate the Base Station’s optical connector from the front to
the rear, contact Grass Valley, a Belden Brand (see
Contact Us on page 83).
Three types of Fiber Connectors are available for use with the CopperHead 3400 Base
Station. Typically one of these Fiber Connectors is pre-configured at the time of delivery.
OpticalCON SMPTE 304M Molex and STs ST Connectors
