48
Connecting the Transceiver System
SMPTE Hybrid Fiber between Base Station and Camera Unit (Infra. Wiring)
SMPTE Hybrid Fiber between Base Station and Camera Unit (Infra. Wiring)

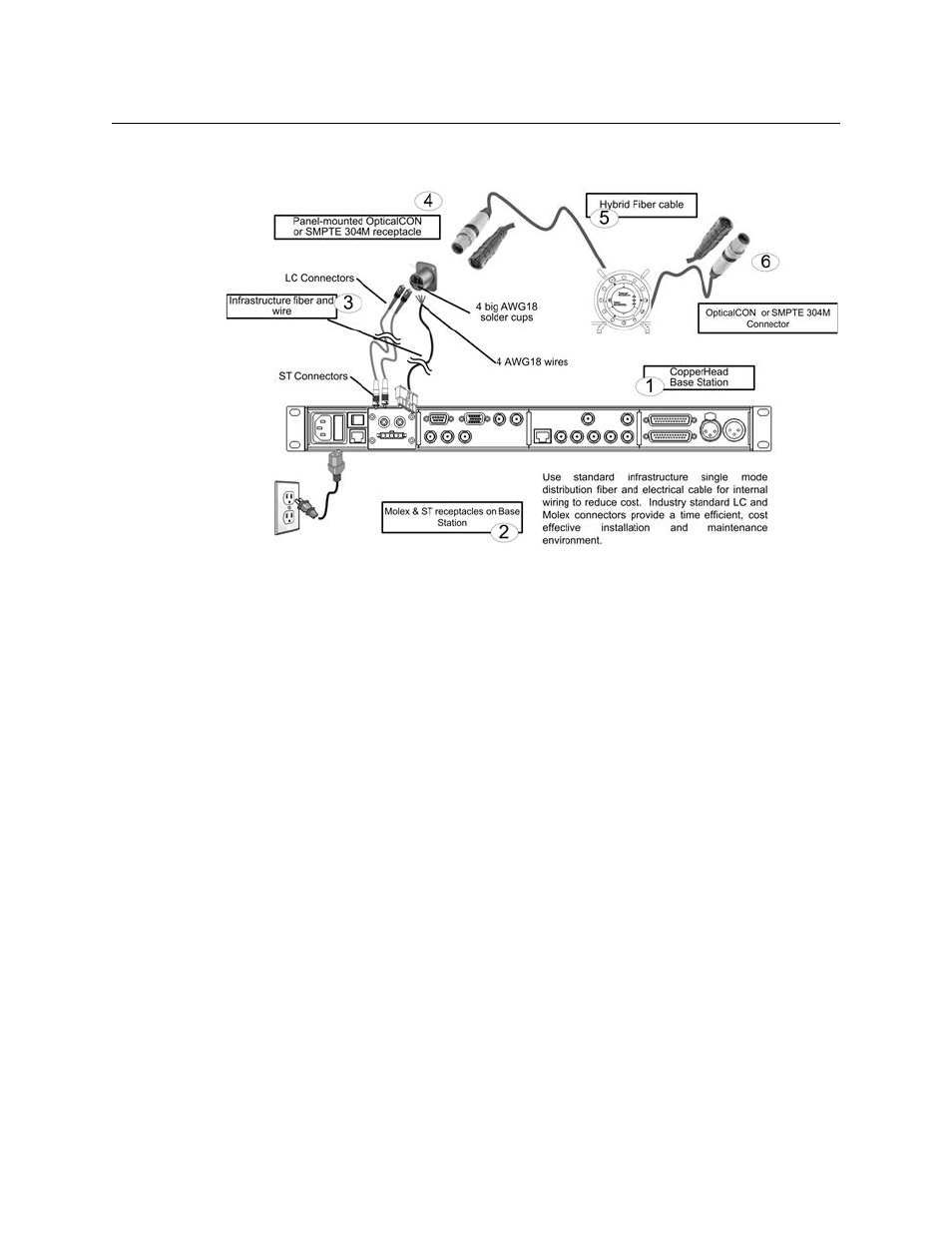

Fig. 5-3: Hybrid Fiber between Base Station and Camera Unit (Infrastructure Wiring)
• Panel mounted fiber connectors can be used for permanent installations such as
communications closets, truck connector panels, and sports facilities.
• A panel-mounted OpticalCON or SMPTE 304M receptacle (4) is connected to the Base
Station (1) through infrastructure grade wiring.
• Two LC Fiber Optic connectors and four soldered AWG18 copper power wires (3)
connect to the Base Station through a Molex and ST receptacle (2).
• Between the panel-mounted receptacle and the Camera Unit is the standard Hybrid
Fiber Optic cable (5). This cable is matched to the panel mounted receptacle with either
an OpticalCON or SMPTE 304M connector (4) to (6).
