28
Component Detailed Description
Base Station Front Panel
Front Panel Section E – Status/Power Indicators

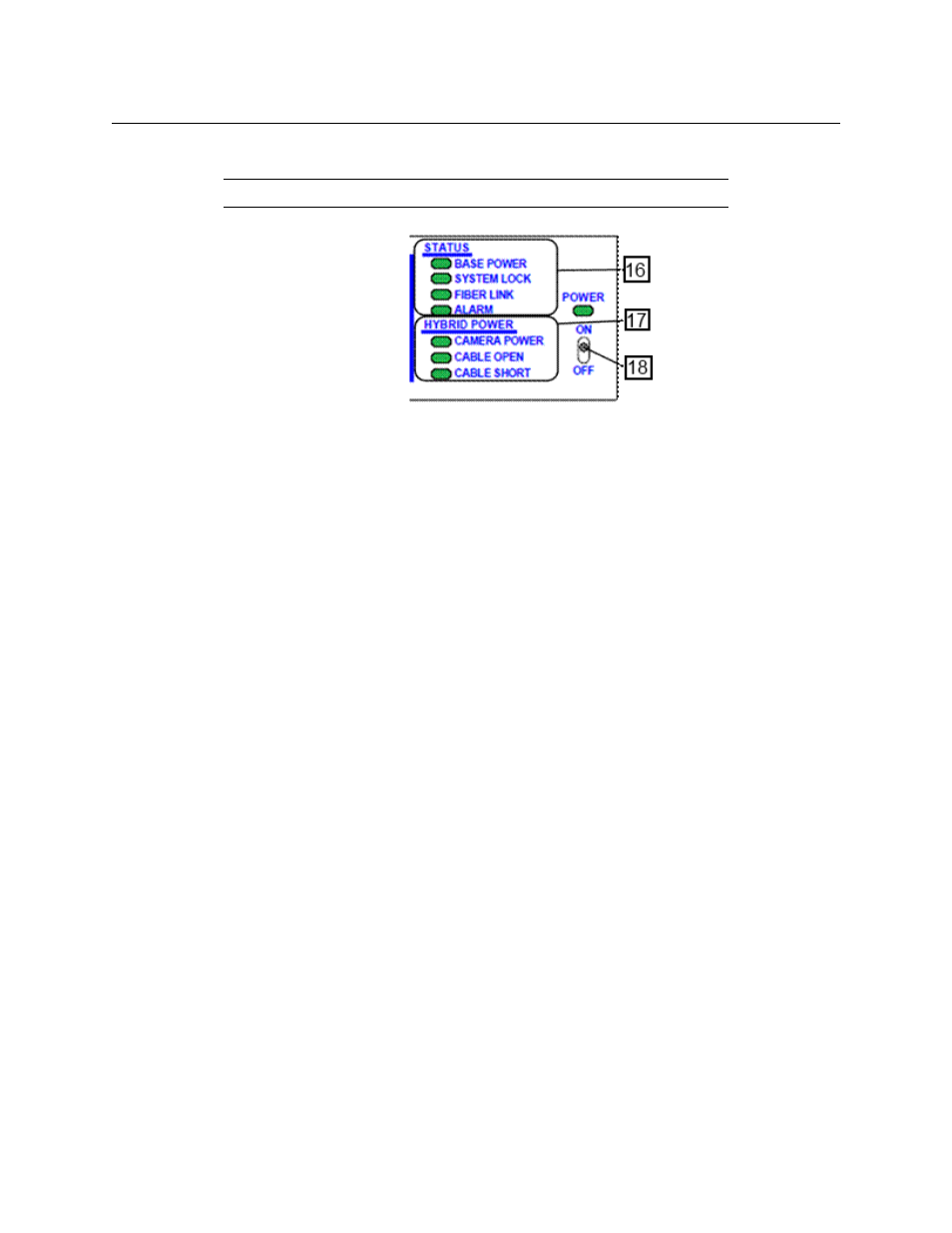

Fig. 3-20: Status/Power Indicators
• 16 - Status Indicators
• BASE POWER - indicates the status of all power levels in the Base Station.
• Green when all power levels are normal.
• Red when any power level is not normal.
• SYSTEM LOCK - indicates that the Base Station is communicating with the Camera
Unit.
• Green when communicating with Camera Unit.
• Red when it is not communicating with the Camera Unit.
• FIBER LINK - indicates the optical power status of the Base Station and camera (see
A Brief Guide to Measurement of Fiber Optic Signal Strength on page 69).
• Green when both the Base Station and Camera Unit optical power are within
the specified operating power range. (-4 to -22 dBm).
• Orange when the Base Station’s received optical power is below the specified
operating power range and video quality may be affected (-22dBm to -23dBm).
• Red when both the Base Station and camera optical power are below specified
optical power range (less than -23 dBm).
• ALARM - indicates that some error condition exists in either the Base Station or the
Camera Unit.
• Red if there is a Base Station error (see The CopperHead 3400 Base Station
Digital Display on page 70).
• Orange if there is a Camera Unit error (see The CopperHead 3400 Camera Unit
Digital Display on page 74).
• 17 - Hybrid Power Indicators: Hybrid Power indicators are only applicable to units with
the internal power supply (for configurations using the HDX or MPS power supplies –
see
Connecting the Transceiver System on page 45).
• CAMERA POWER - indicates that high voltage is applied to power the camera.
• Green when high voltage is being supplied to the camera.
• Off when there is no high voltage applied to the camera
Note: Hybrid Power Indicators are present only on a hybrid power unit
