20
Component Detailed Description
Camera Unit Rear Components
Camera Unit Rear Components

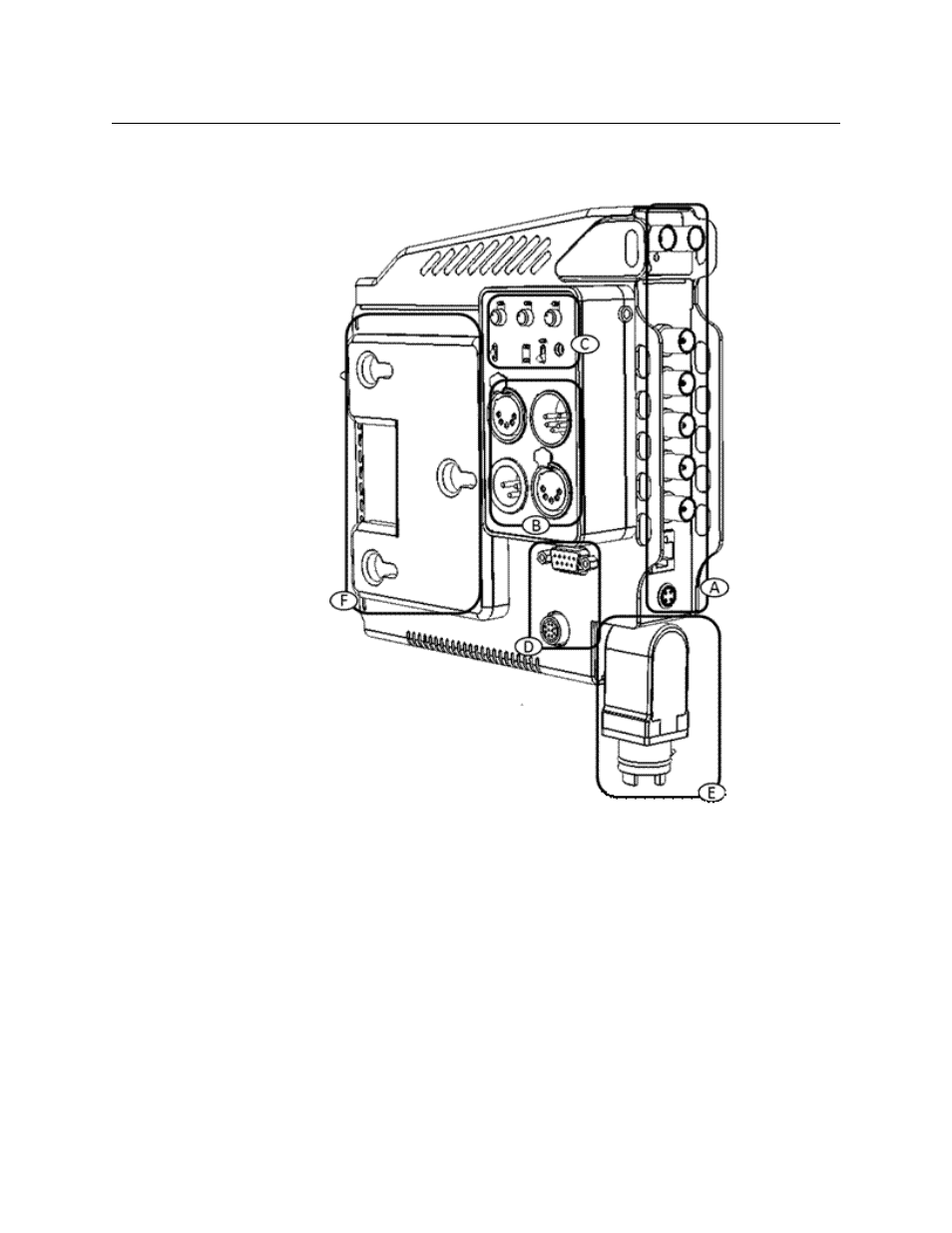

Fig. 3-8: CopperHead 3400 Camera Unit Back Side
The rear of the Camera Unit has six features:
• A - Connector Panel: see Area A – Connector Panel on page 21.
• B - Audio/Intercom Connector Panel: see Area B - Audio/Intercom Connector Panel on
page 22.
• C - Audio/Intercom Controls: see Area C - Intercom Controls on page 22.
• D - Misc. Connectors: see Area D - Miscellaneous Connectors on page 23.
• E - Fiber Connector: see Area E – Fiber Connector on page 23.
• F - Battery Mount: see Area F – Battery Mount on page 24.
