Welltech FXS SIP Gateway V.2.9 - Manual (Page 39)

- 27 -
FXS Gateway Overview

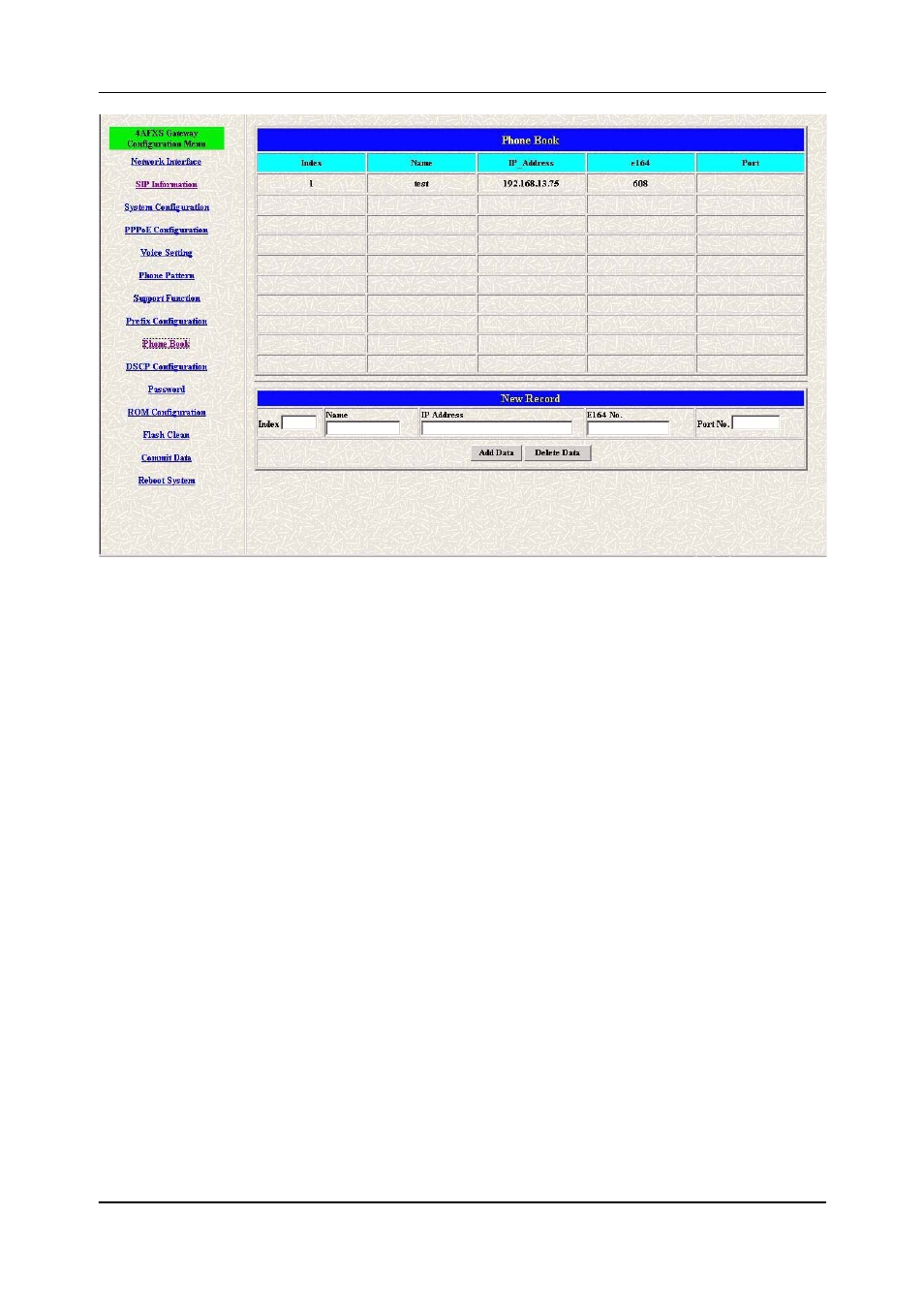

Figure 4-4 Phone Book
Step 5. Click [Commit Data] on the navigation panel. In the Commit
Configuration
Data screen, click the [Commit] button.
Step 6. Click [Reboot System] on the navigation panel. In the FXS Gateway screen,
click the [Reboot] button. It will take 40 seconds to reboot.
4.2 Configure the gateway into the Proxy routed mode
Step 1. Configure the FXS Gateway SIP Configuration. Click SIP Information on
the navigation panel. In the SIP Information screen, select Proxy
routed Mode function.
Step 2. To change the SIP information from your service provider Proxy IP Address,
Line1 Number, Line1 Account, Line1 Password, (e.g. Proxy IP
Address:
192.168.14.155, (e.g. Line1 Number: 1001, Line1 Account: 1001, Line1 Password:
1001, Line2 Number: 1001, Line2 Account: 1001, Line2 Password: 1001),
and click the OK button.
