FXS Gateway Overview
Chapter 4
Making a VoIP Call
This Chapter covers the basic configuration the gateway for making VoIP calls. One is
the Peer-to-Peer mode, Proxy routed mode and Gateway mode. The configurations
and functions are different. Please make sure about the mode you want and follow up
the step to configure your gateway.
4.1
Configure the gateway into the Peer-to-Peer mode
Step 1. Configure the FXS Gateway SIP information. Click [SIP information] on
the navigation panel. In the SIP information screen, select Peer-
to-Peer Mode function, set line number (e.g. Line1 Number 1001,
Line2 Number: 1002) and
click the [OK] button.

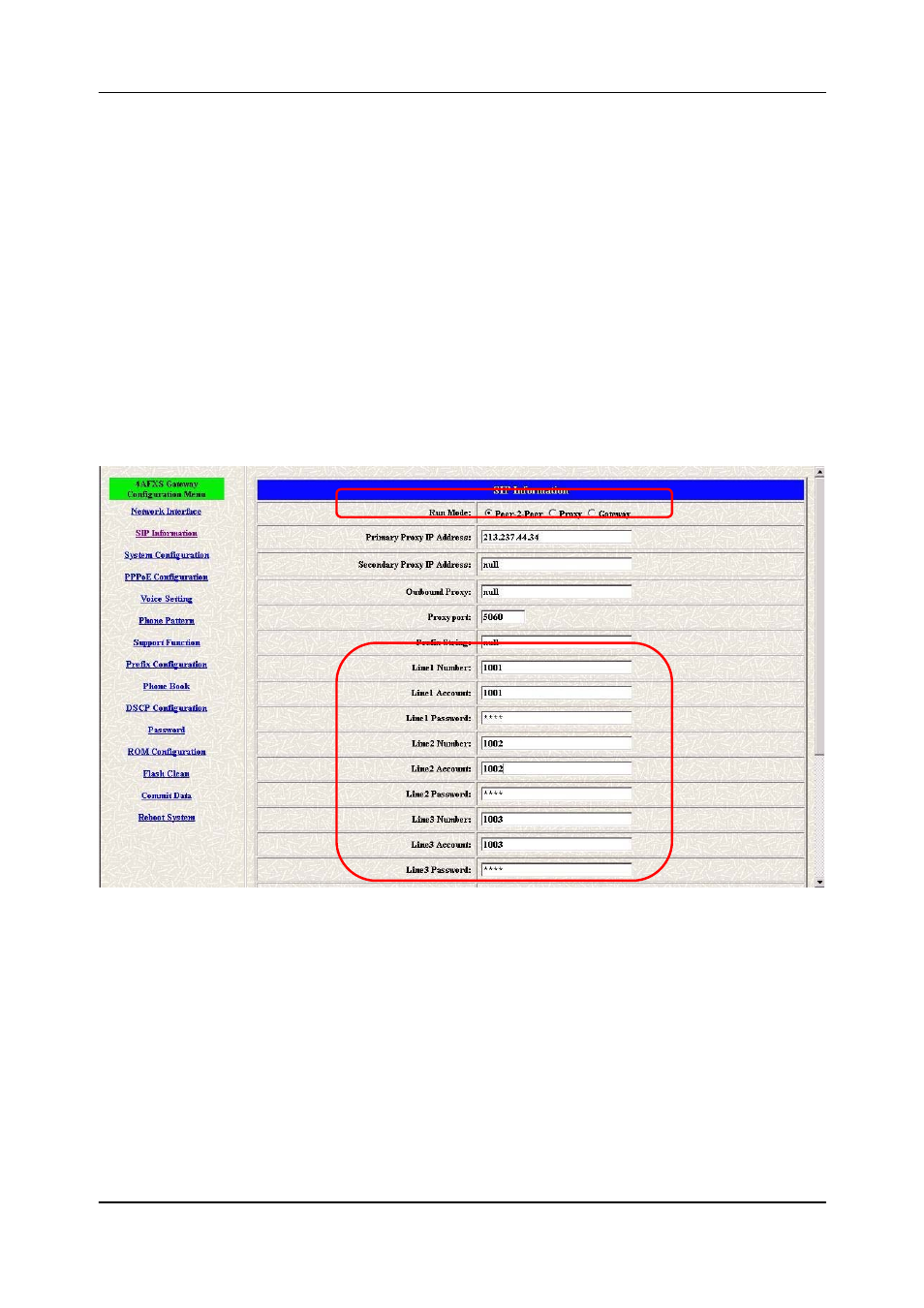

Figure 4-1 SIP Configuration – Peer to Peer mode Screen
Step 2. Configure the FXS Gateway Phone Book. Click [Phone Book]
on the navigation panel. In the Phone Book screen, enter the Index, Name, IP
address
and e164 (phone number) of the destination and click the Add Data button.
