[Notes]
ƒ If the value of m is out of the specified range, nL and data following are processed as
normal data.
ƒ If the bit-image data input exceeds the number of dots to be printed on a line, the excess
data is ignored.
ƒ d indicates the bit-image data. Set a corresponding bit to 1 to print a dot or to 0 to not
print a dot.
ƒ After printing a bit image, the printer returns to normal data processing mode.
ƒ This command is not affected by print modes (emphasized, double-strike, underline,
character size or white/black reverse printing), except upside-down printing mode.

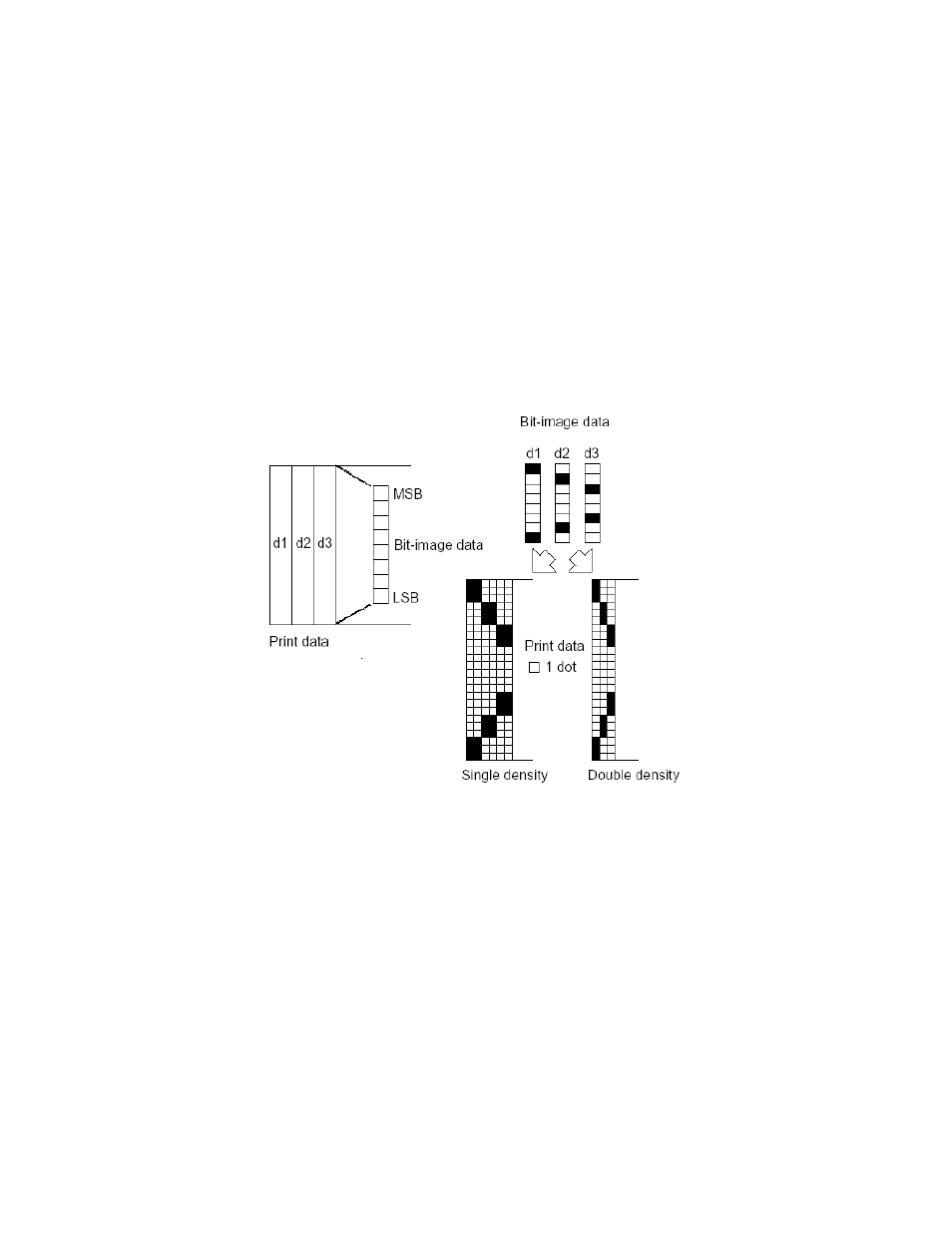

ƒ The relationship between the image data and the dots to be printed is as follows:
ƒ When 8-dot bit image is selected:
When 24-dot bit image is selected:
