XSAT7080 X-Band Transceiver Revision 0
5-25W Installation MN/XSAT7080.IOM
A–7

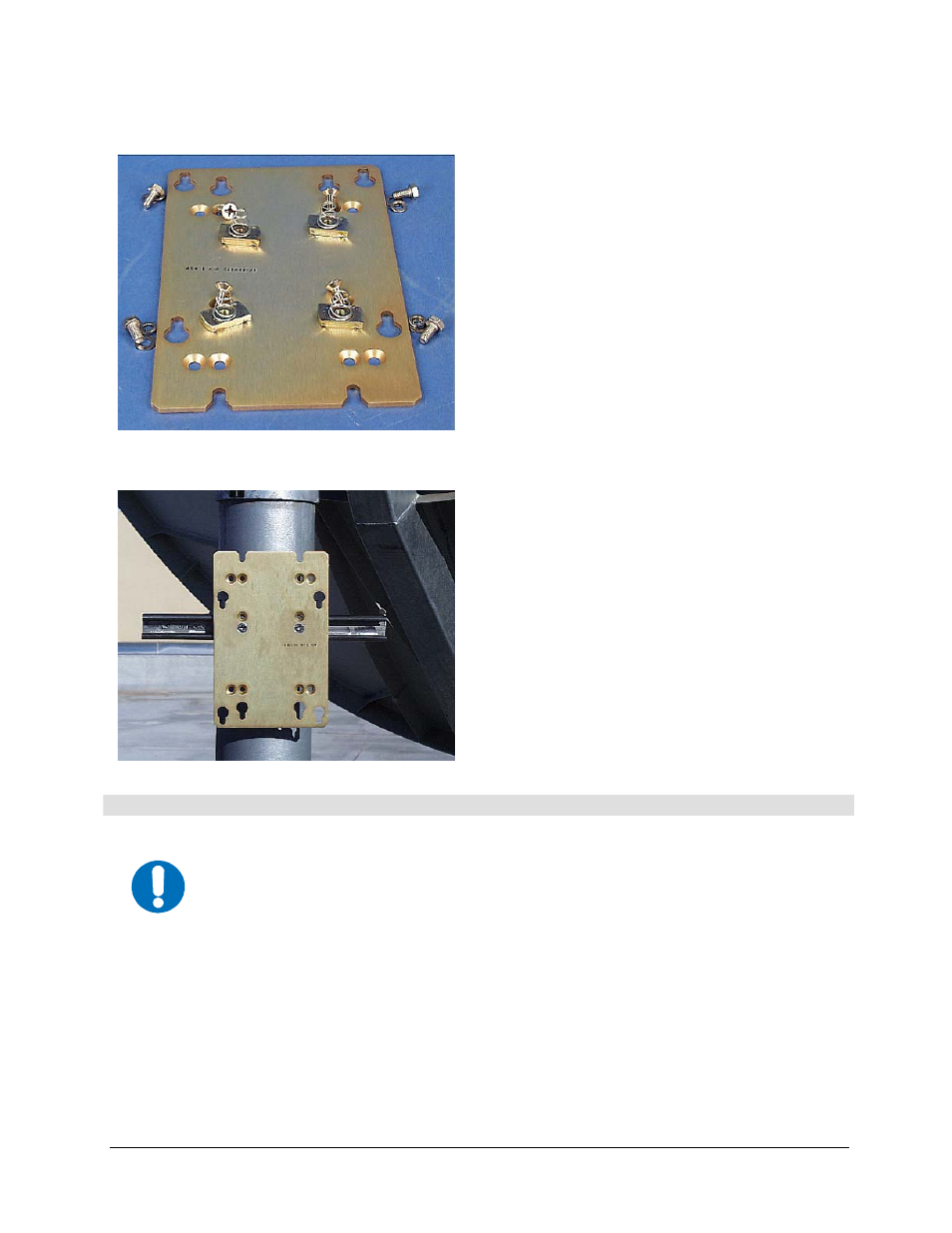

Figure A-5. XSAT Single-Thread
Bracket with Hardware
Figure A-6. Installing XSAT Single-
Thread Bracket
Step Procedure
10 Place bracket (1, Figure A-2) over springnuts and secure using screws (3).
Observe the orientation of the “Key” slots used for mounting the XSAT
Transceiver.
11 Mount the unit as follows:
a. Loosely install four bolts (4 Figure A-2), four flat washers (4), and four
split washers (6) into bolts hole located on the rear side of the unit.
b. Position unit against the bracket and hook the bolts into the key slots.
Tighten bolts to secure.
IMPORTANT
