XSAT7080 X-Band Transceiver Revision 0
50 and 100-Watt Installation MN/XSAT7080.IOM
B–7

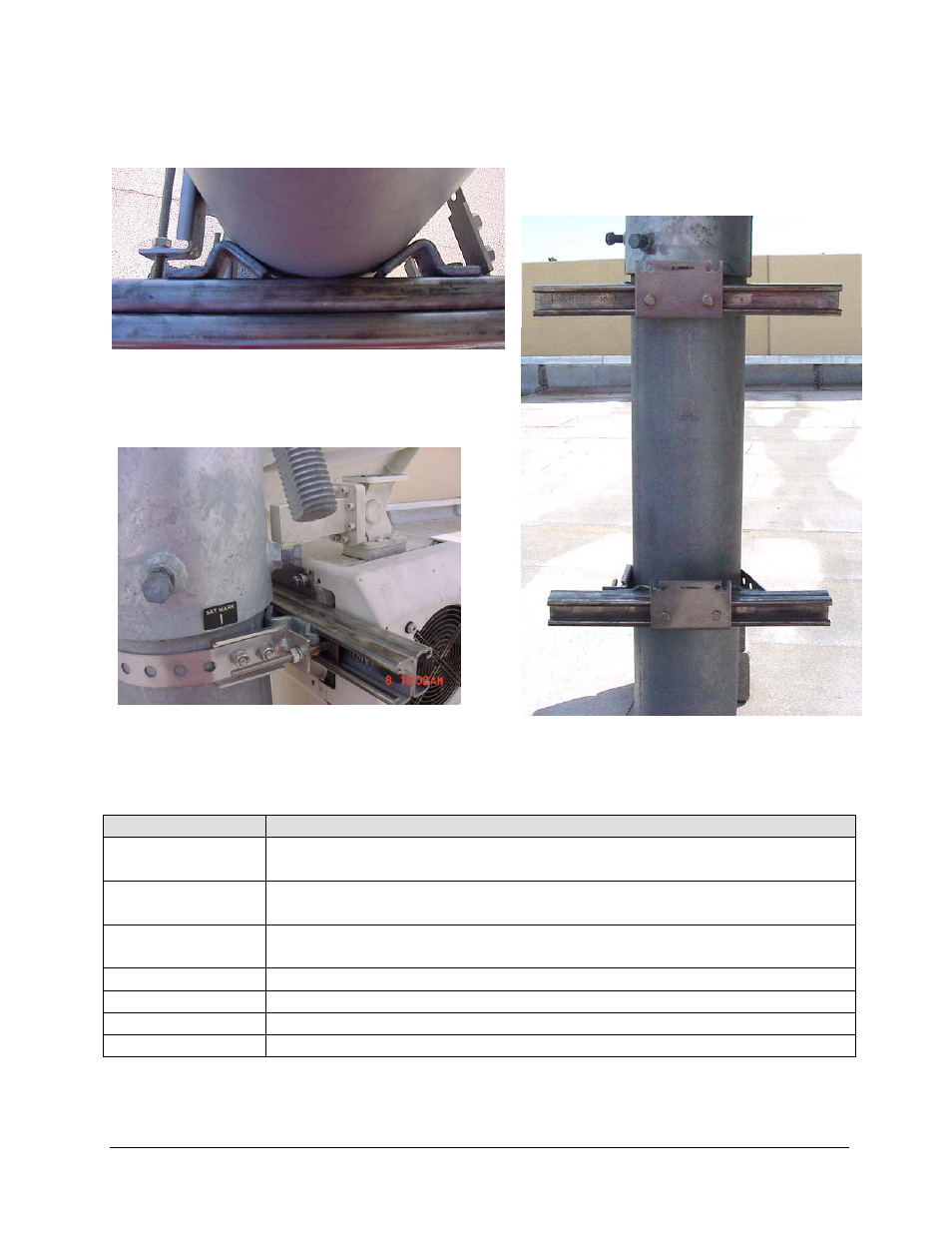

Figure B-4 Looking down
Figure B-6. Single-Thread
with Hardware
Step Procedure
6 Each bracket (5, figure B-1) to the strap (4) using two nuts (10), two flat
washers, (7), and two splitlock washers (8).
7 Place the assembly against the pole with the strap around the pole and trim
strap (4) to fit as shown in Figure B-4, using the tin snips.
8 Attach bracket (3, figure B-1) to the strap (4) using two nuts (10), two flat
washers (7), and two splitlock washers (8).
9 Slide tensioner bracket (2) into channel of the top Unistrut bracket (1).
10 Place assembly on the pole. Slide bracket (3) over bracket (2).
11 Place flat washer (7) and splitlock washer (8), and nut (10) on bracket (2).
12 Tighten nut to secure the tension strap.
B-5. Installing the Pole Bracket
