XSAT7080 X-Band Transceiver Revision 0
50 and 100-Watt Installation MN/XSAT7080.IOM
B–6
B.4.2 S
INGLE
-T
HREAD
I
NSTALLATION
Step Procedures
1 Place Unistrut brackets (1, Figure B-1) on a flat surface.
2 Slide two springnuts (9) into the each channel of the Unistrut brackets.
3 Fasten two pipe blocks (11) loosely to the springnuts using two bolts (6),
two flat washers (7), and two splitlock washer (8).
4 Position Unistrut brackets (1) with pipe blocks (11) against the mounting
pole, slide the pipe blocks (11) until they contact the mounting pole.
5 Ensure the pipe blocks (11) are centered to the Unistrut brackets (1).
Tighten the hardware.

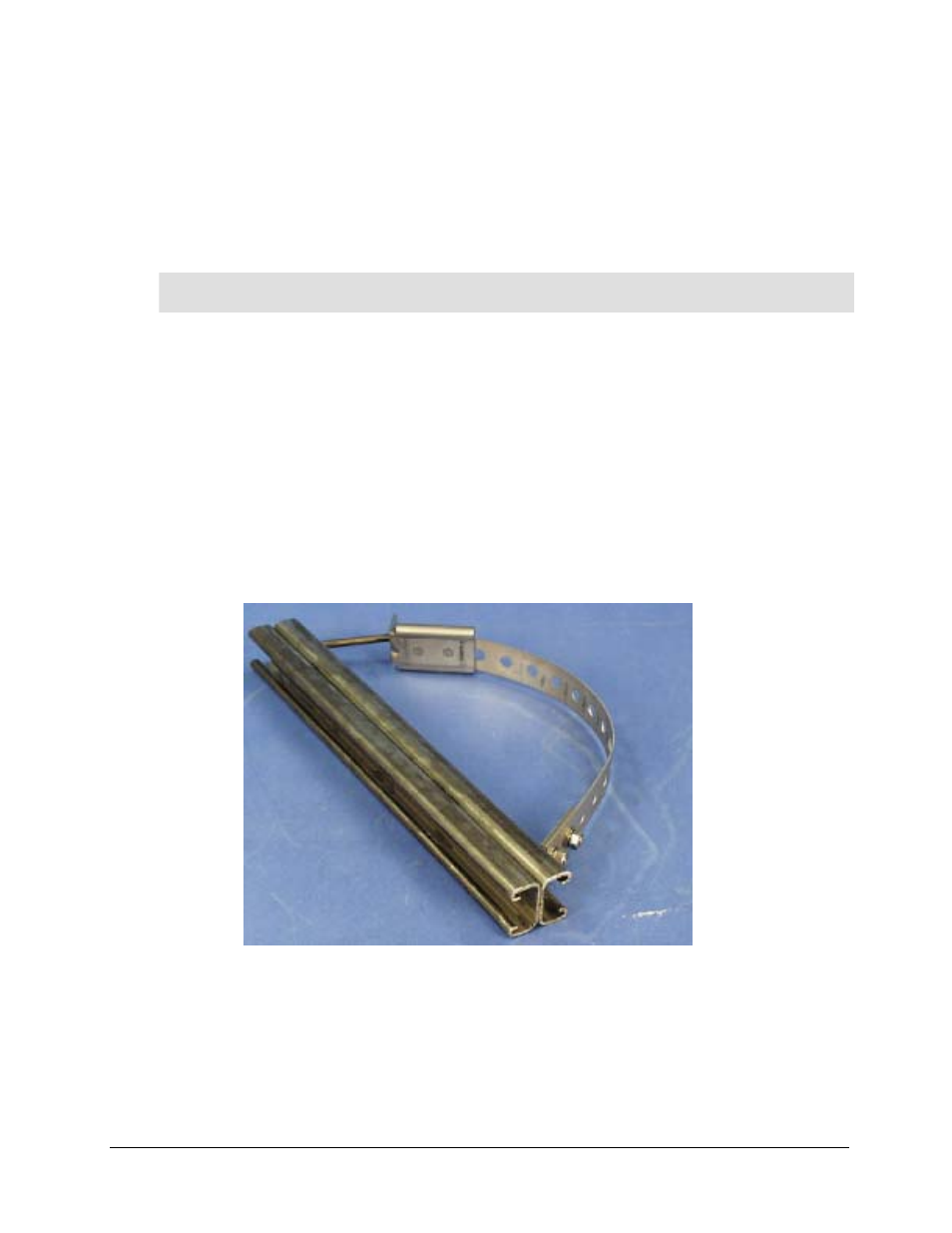

Figure B-3. Preparing the Pole Bracket
