Chapter 4 Connecting Your Array 4-23
No SFPs are plugged into the drive channels. This configuration is appropriate for
connecting to up to four hosts or fibre switches, with no connection to expansion units
(see Figure 4-19 and Figure 4-20).

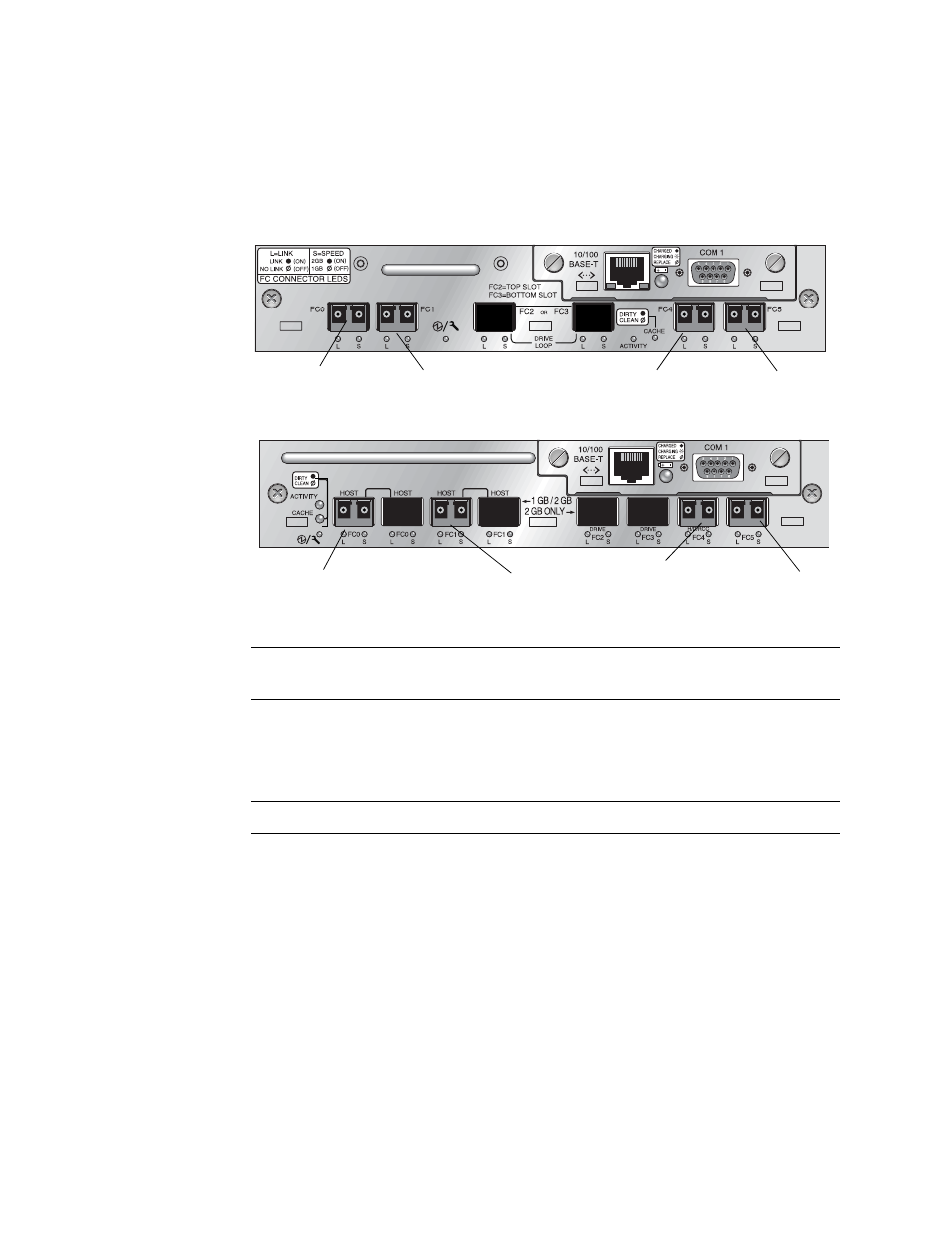

Figure 4-19 SANnet II 200 FC Array Default Single Controller SFP Placement
Figure 4-20 SANnet II 200 SATA Array Default Single-Controller SFP Placement
Note –
The SANnet II 200 SATA SE array configuration does not include SFPs. SFPs
must be ordered separately.
In a default SANnet II 200 FC expansion unit, SFPs are initially plugged into the left-
most port of the upper I/O expansion module and right-most port of the lower I/O
expansion module (see Figure 4-21).
Note – The SANnet II 200 SATA SE array does not support this configuration.
Host port FC0 Host port FC1 Host port FC4 Host port FC5
Host port FC1
H/D/RCC
Host port FC0
Host port FC4
Host port FC5
