8-20 SANnet II 200 FC, SATA, and SATA SE Array Installation, Operation, and Service Manual • March 2005

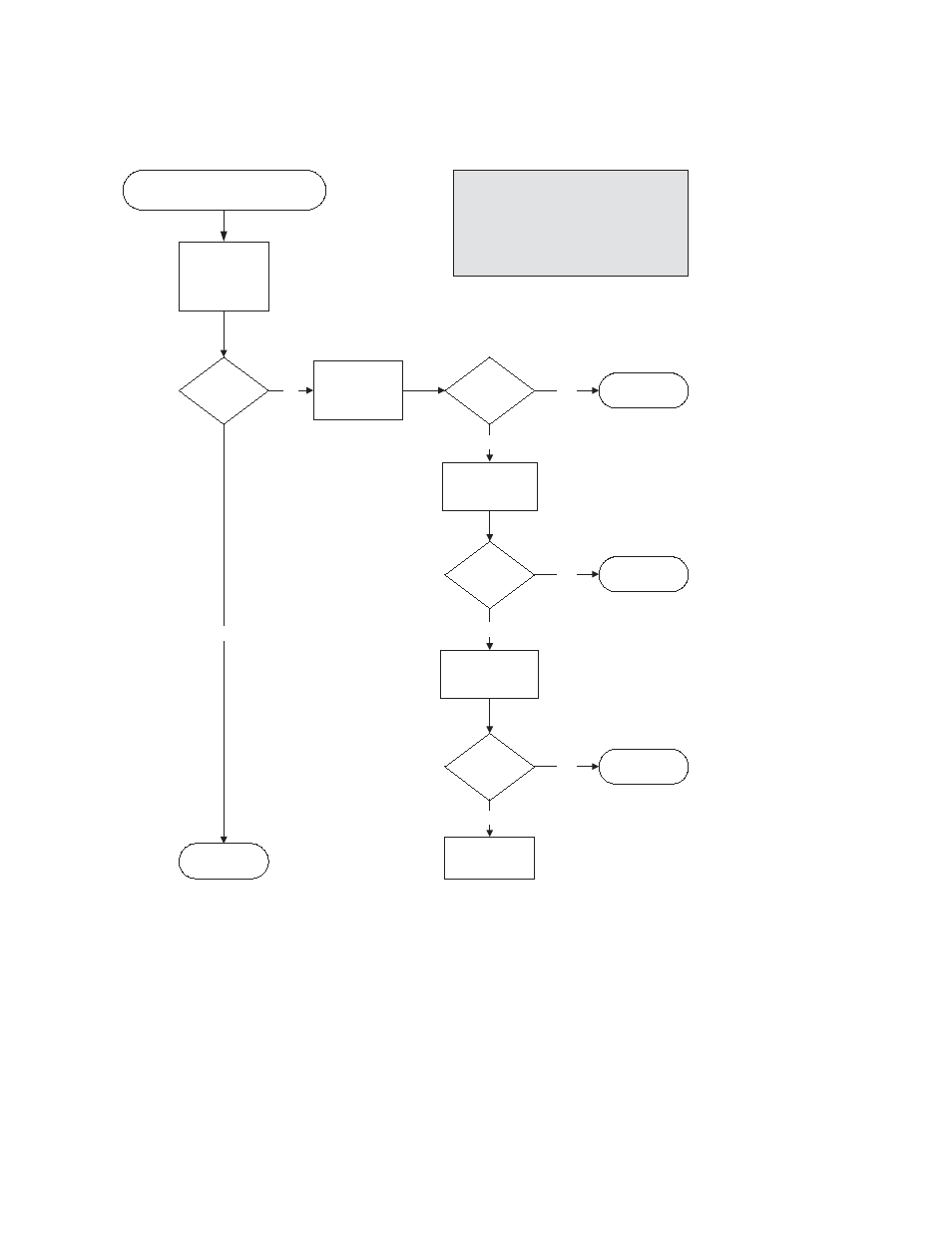

Figure 8-9 Front-Panel LEDs Flowchart, 4 of 4
3D
Front panel LEDs problem (FC)
Check that LED
ribbon cable in right
ear is not loose.
Verify the air
conditioning is
working properly.
Fix if needed.
End
Yes
Resolved?
Temp LED
Resolved?
No
No
Replace controller
that reported over
temperature error.
Resolved?
Replace chassis.
Ensure adequate
ventilation.
Resolved?
Yes
End
End
Yes
Yes
No
No
End
--Reseat the FRU that is not operating correctly.
--Swap the questionable FRU with a known-good
FRU from the same array.
Notes
55 degrees Celsius equals 131 degrees
Fahrenheit.
Prior to replacing a chassis, try the following:
