Chapter 4 Connecting Your Array 4-7
4.2.3 SANnet II 200 SATA SE Array Connections

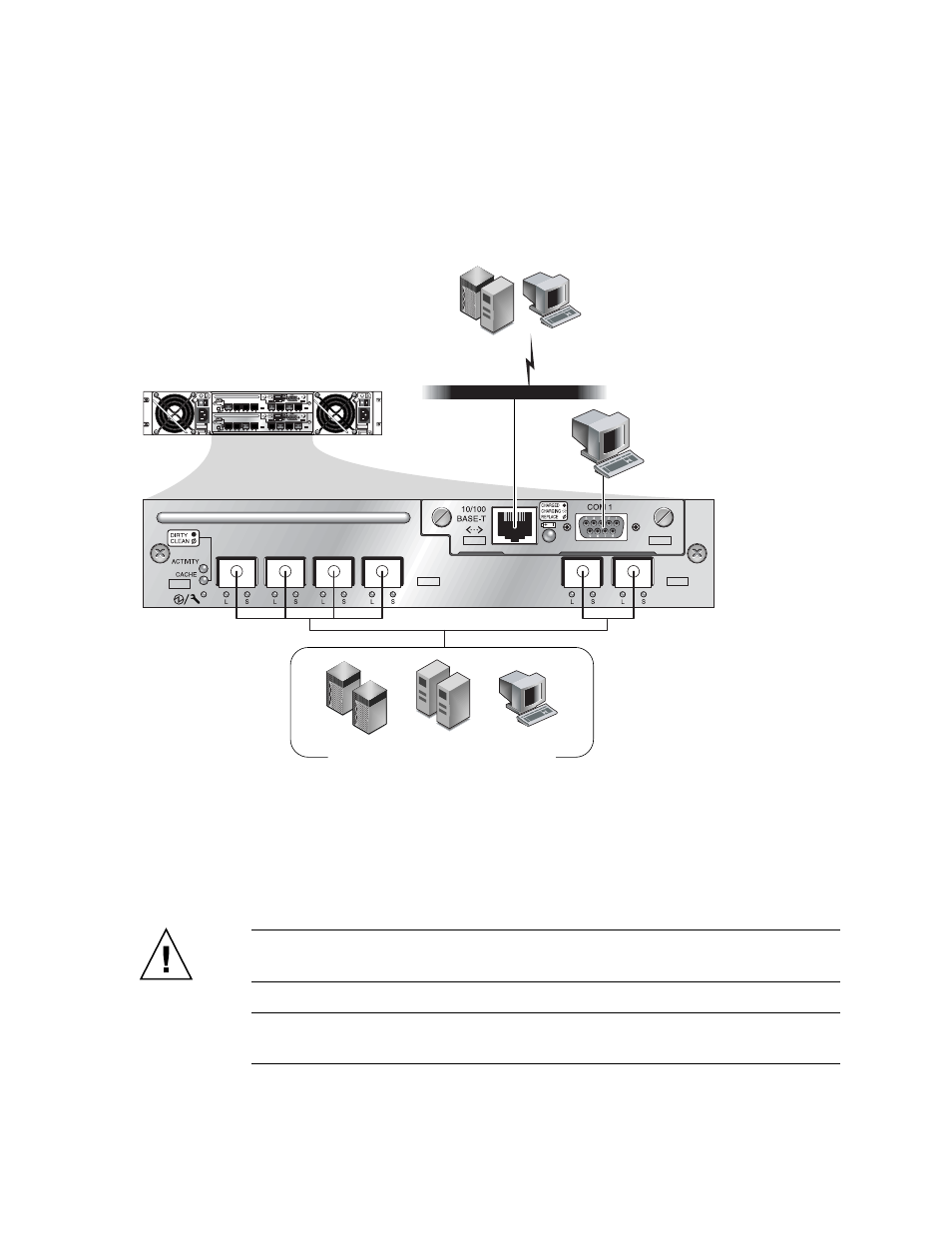

Figure 4-5 identifies the hardware connections on the back of a dual-controller SANnet
II 200 SATA SE array.
Figure 4-5 Hardware Connections on the Back of a Dual-Controller SANnet II 200 SATA SE Array
4.3 Connecting the Chassis to AC Power Outlets
When you connect the AC power cords, install the two provided cord locks at the same
time. The AC cord locks are used to securely fasten the AC cable connectors.
Caution – If the array is connected to AC power sources not within the designated
90–135 or 180–264 VAC range, the unit might be damaged.
Note – To ensure power redundancy, be sure to connect the two power supply modules
to two separate circuits (for example, one commercial circuit and one UPS).
To connect the AC power cords, perform the following procedure.
Servers and consoles
Management
console
application/data servers and consoles
FC device connections
