Chapter 4 Connecting Your Array
4-9

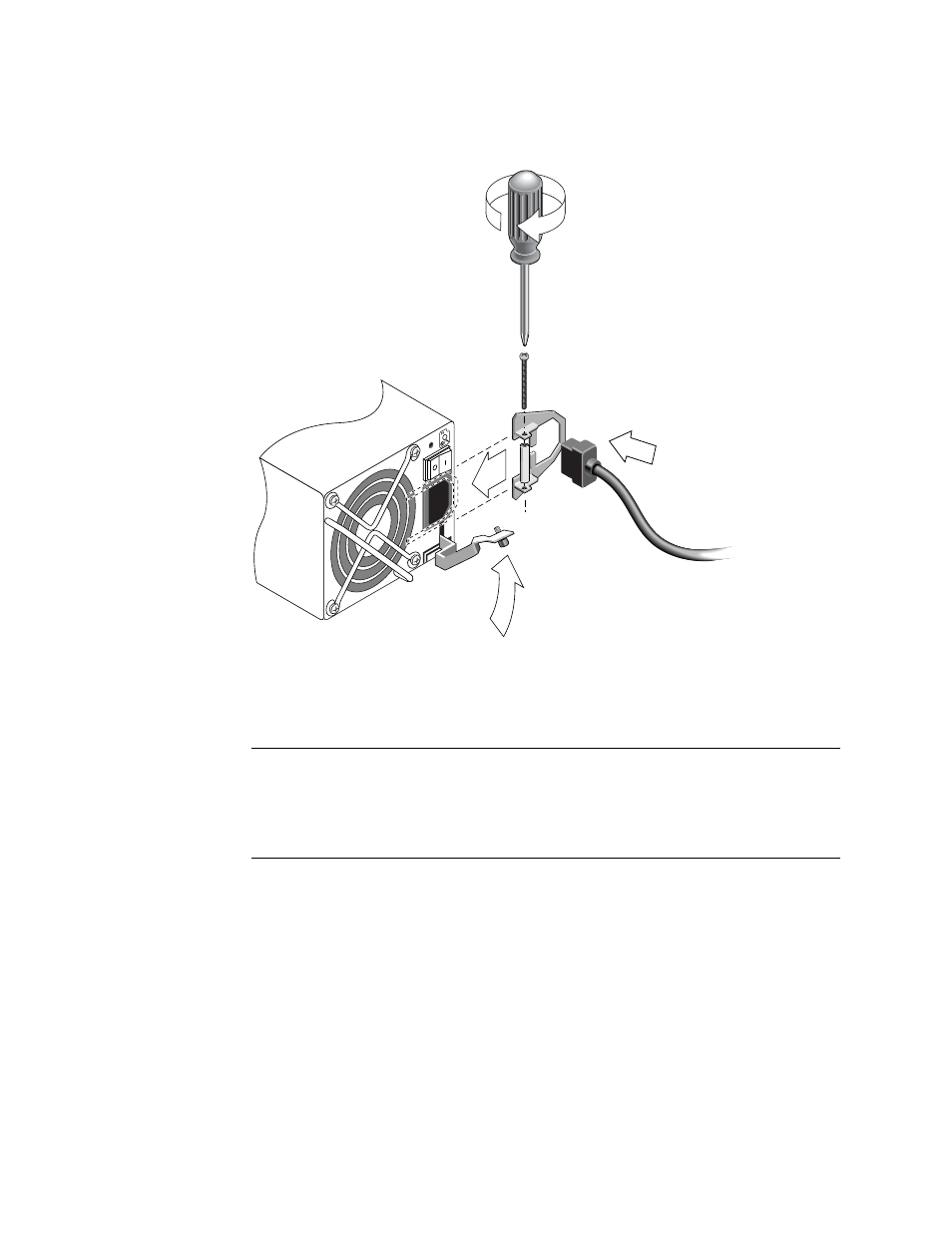

Figure 4-6 Installing a Cord Lock
4.4
Connecting the Chassis to DC Power Outlets
Note –
The SANnet II 200 SATA array can only be ordered in an AC configuration.
However, DC power supplies can be ordered in an x-option kit, and a SANnet II 200
SATA array can be reconfigured using the DC power supplies. Refer to the SANnet II
Family FRU Installation Guide for a procedure for removing and replacing power
supplies.
Two DC power cords are packaged with each DC array. To connect the DC power
cords, perform the following procedure.
1. Check the DC cable part number and wire labels carefully before connecting the cable
to the source.
1
3
2
4
