6-2 SANnet II 200 FC, SATA, and SATA SE Array Installation, Operation, and Service Manual • March 2005
6.2 Front-Panel LEDs
The drive LEDs are located between the rows of drives on the front-panel, as shown in
Figure 6-1. The system operation LEDs are located on the right ear of the chassis and
shown in Figure 6-2.

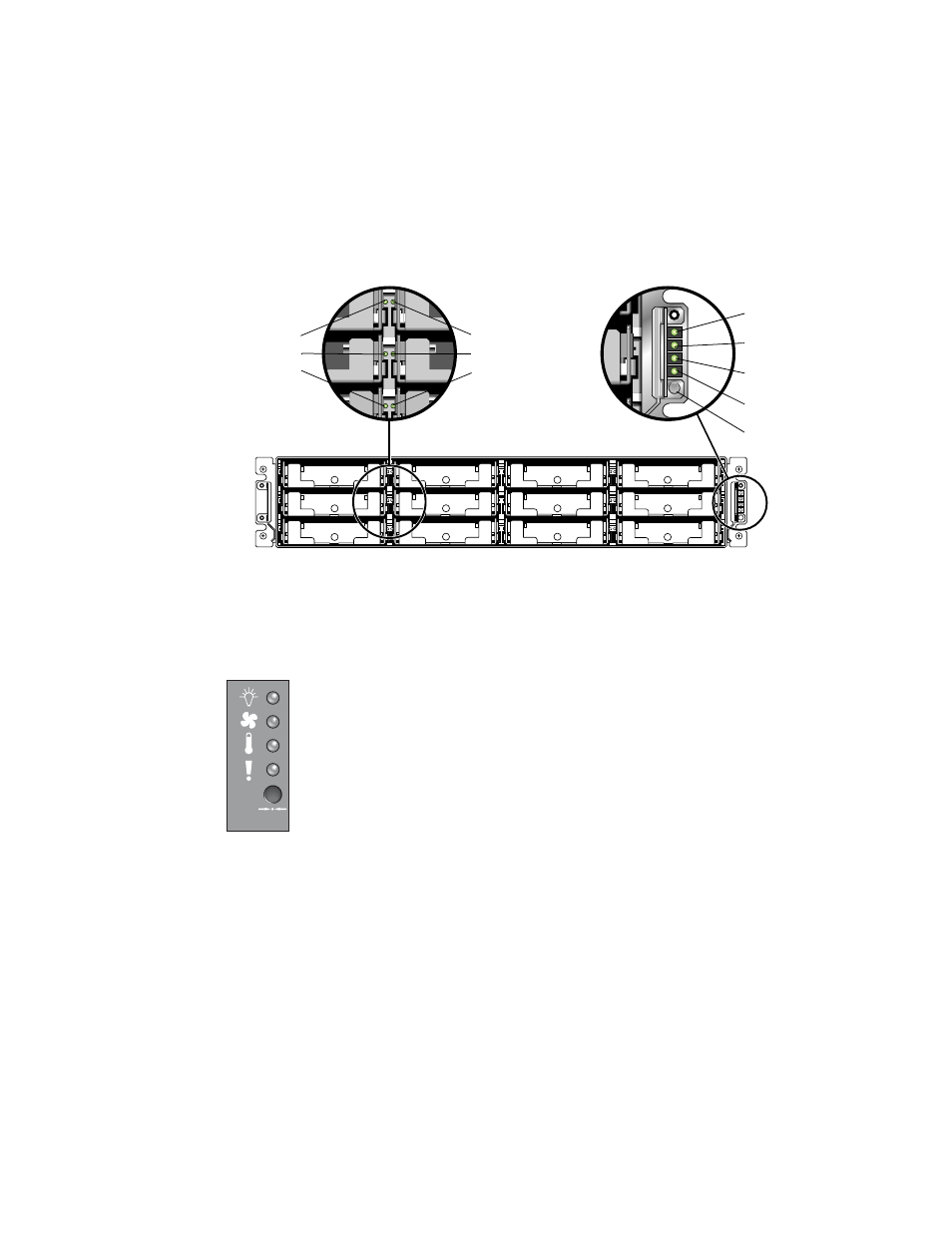

Figure 6-1 Front-Panel LEDs
Figure 6-2 shows the chassis ear LEDs and reset push button. Use a paper clip to push
the Reset button to silence a failed component alarm. See “Silencing Audible Alarms”
on page 8-5 for more information about silencing audible alarms.
Figure 6-2 Chassis Ear LEDs and Reset Button on Front Panel
• Reset
Disk 0
Disk 1
Disk 2
Disk 3
Disk 4
Disk 5
Disk 6
Disk 7
Disk 8
Disk 9
Disk 10
Disk 11
LED 4 LED 1
LED 0
LED 2
Drive
LED 3
LED 5
Drive
• Power
• Fan
• Temp
push button
• Event
• Reset
Power
Fan
Temp
Event
Reset push button
