Page 24: Hardware preparation and installation
Hardware Preparation and Installation
MVME6100 Single Board Computer Installation and Use (6806800D58H)
24
1.5.1
SCON Header (J7)
A 3-pin planar header allows the choice for auto/enable/disable SCON VME configuration. A
jumper installed across pins 1 and 2 configures for SCON always enabled. A jumper installed
across pins 2 and 3 configures for SCON disabled. No jumper installed configures for auto
SCON.
1.5.2
PMC/IPMC Selection Headers (J10, J15 – J18, J25 – J28)
Nine 3-pin planar headers are for PMC/IPMC mode I/O selection for PMC slot 1. These nine
headers can also be combined into one single header block where a block shunt can be used as
a jumper.

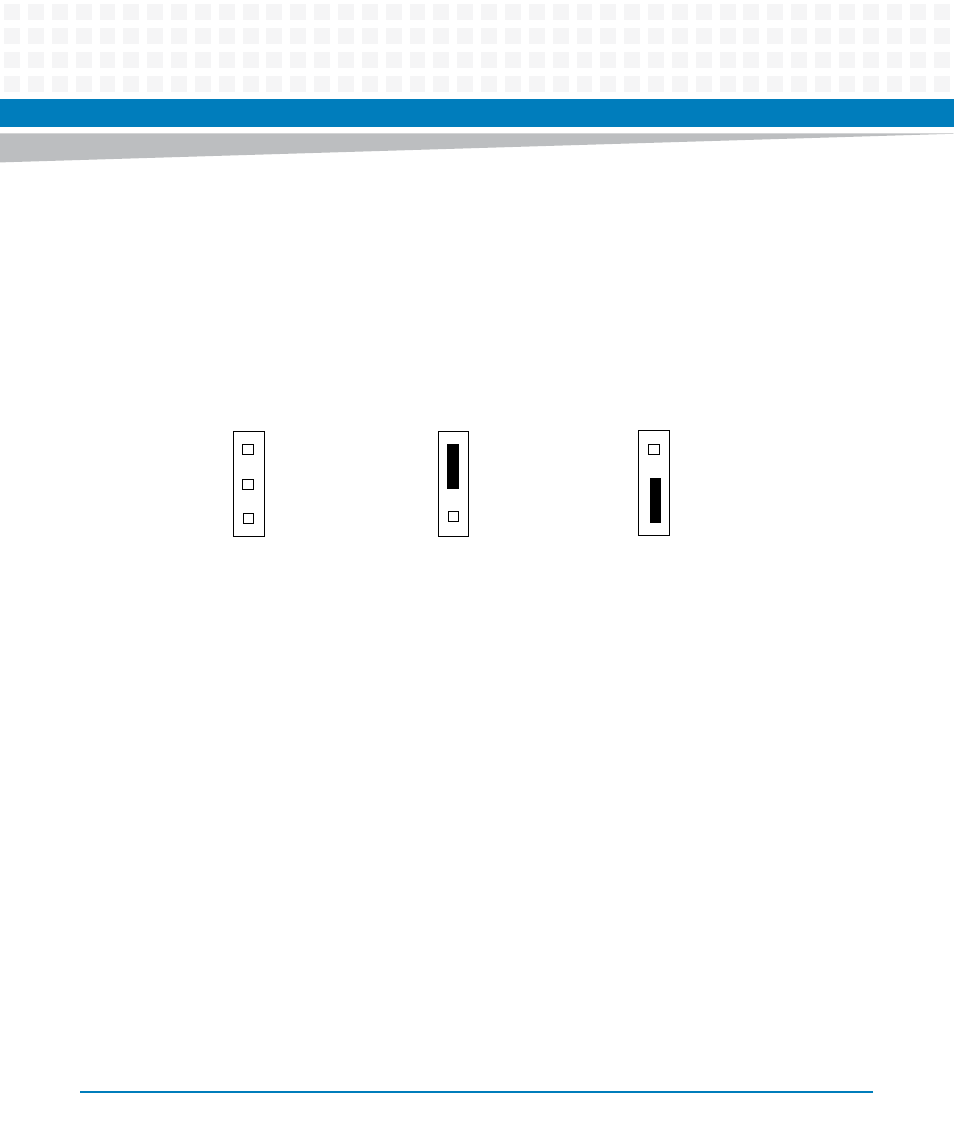

Figure 1-3
SCON Header Settings
J7
1
2
3
1
2
3
Always SCON
J7
J7
1
2
3
(factory configuration)
No SCON
Auto-SCON
