8–16 Altera Corporation
Stratix GX Transceiver User Guide January 2005
Design Examples

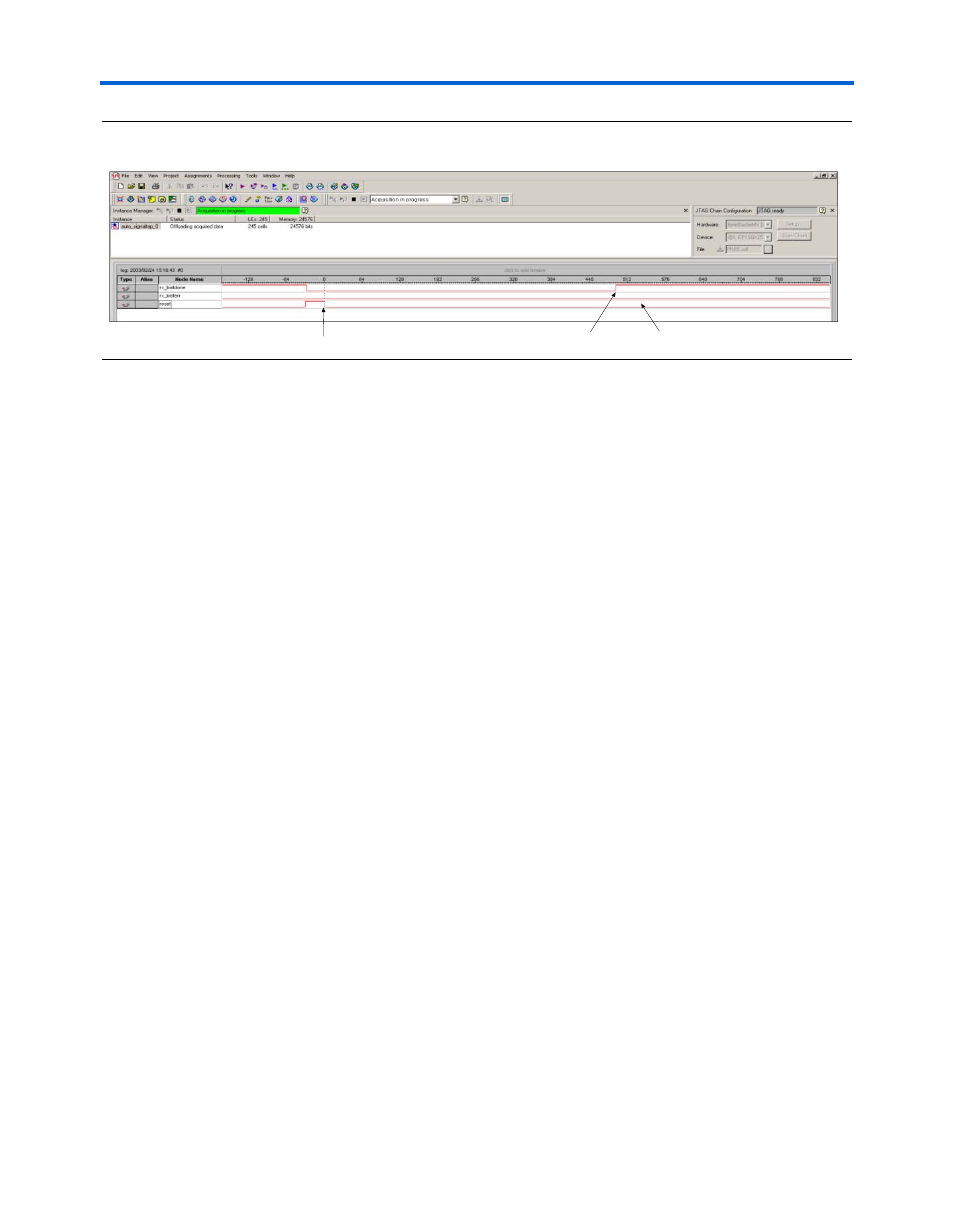

Figure 8–6. SignalTap II Results for PRBS BIST Test Design (Resets the Verifier)
Design 3: High-Frequency Transmitter Generator Design
This design shows how to instantiate the altgxb megafunction in the
high-frequency BIST mode. Because this design consists only of a single
transmitter design, only the altgxb instantiation is shown. The top level
simply consists of calling the megafunction instance.
altgxb Instantiation (High_Freq_BIST.v)
module high_freq_BIST (
inclk,
tx_out,
coreclk_out);
input [ 0:0] inclk;
output [0:0] tx_out;
output [0:0] coreclk_out;
wire [0:0] sub_wire0;
wire [0:0] sub_wire1;
wire [0:0] tx_out = sub_wire0[0:0];
wire [0:0] coreclk_out = sub_wire1[0:0];
altgxb altgxb_component
(
.inclk (inclk),
.tx_out (sub_wire0),
.coreclk_out (sub_wire1));
defparam
altgxb_component.force_disparity_mode = "OFF",
altgxb_component.channel_width = 16,
(1)
(2)
(3)
resets the verifier
rx_bistdone signifies that the
verification cycle is complete rx_bisterr remains low,
signifying no bit errors
