Figure 5–27 – Altera Stratix GX Transceiver User Manual
Page 145
Altera Corporation
5–33
January 2005
Stratix GX Transceiver User Guide
XAUI Mode
For example, if a refclkb pin is required to feed a transmitter PLL using
an IQ line, the refclkb pin cannot be in transceiver block 1, because IQ2
only feeds the receiver PLLs.

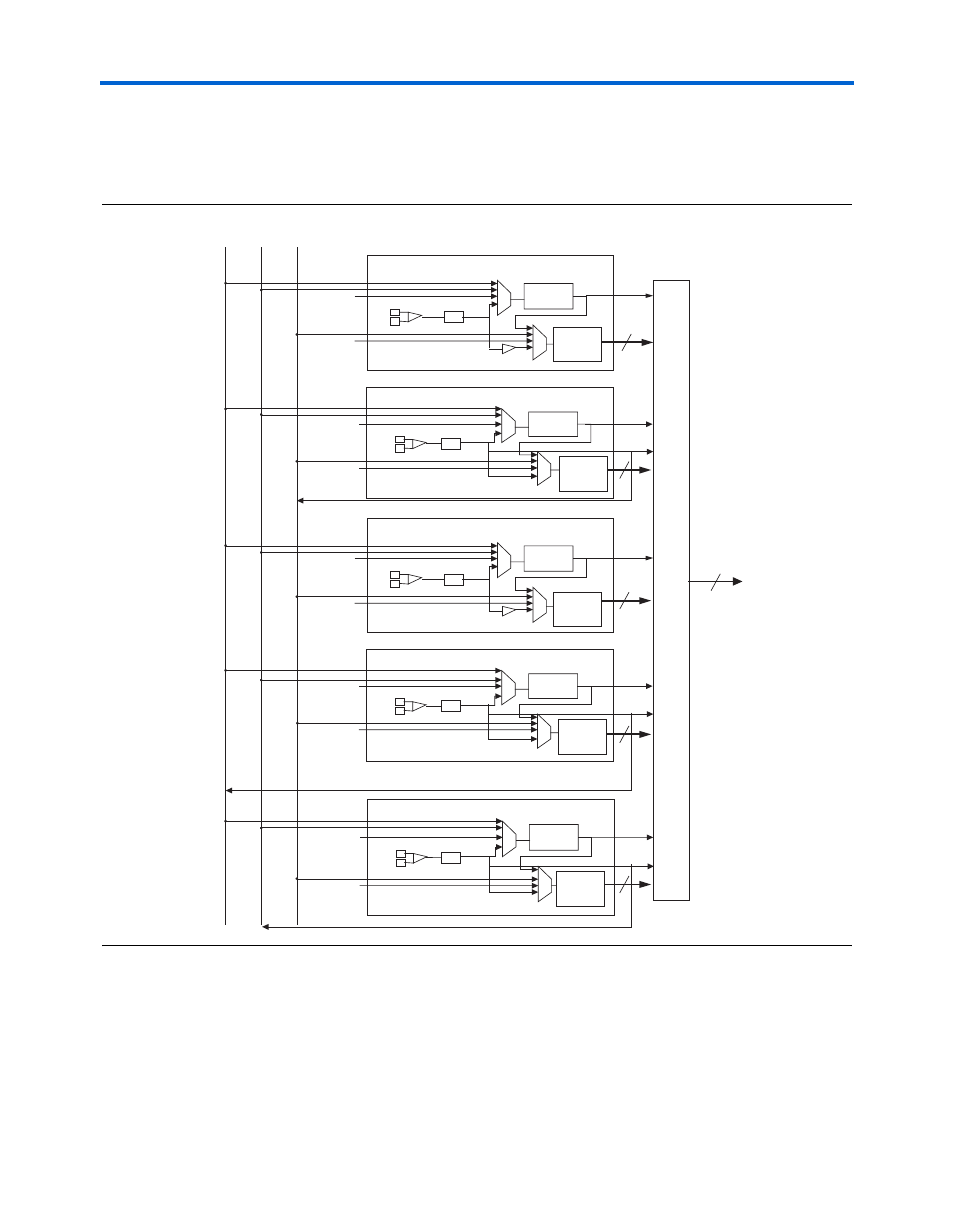

Figure 5–27. IQ Line Connections for EP1SGX40G
