Getting Started with Your High Speed Power Meter
16 IQS-1600
Starting the High Speed Power Meter Application
Title Bar
The title bar is located at the top of the main window. It displays the
module name and its position in the controller or expansion unit. The
module position is identified as follows:

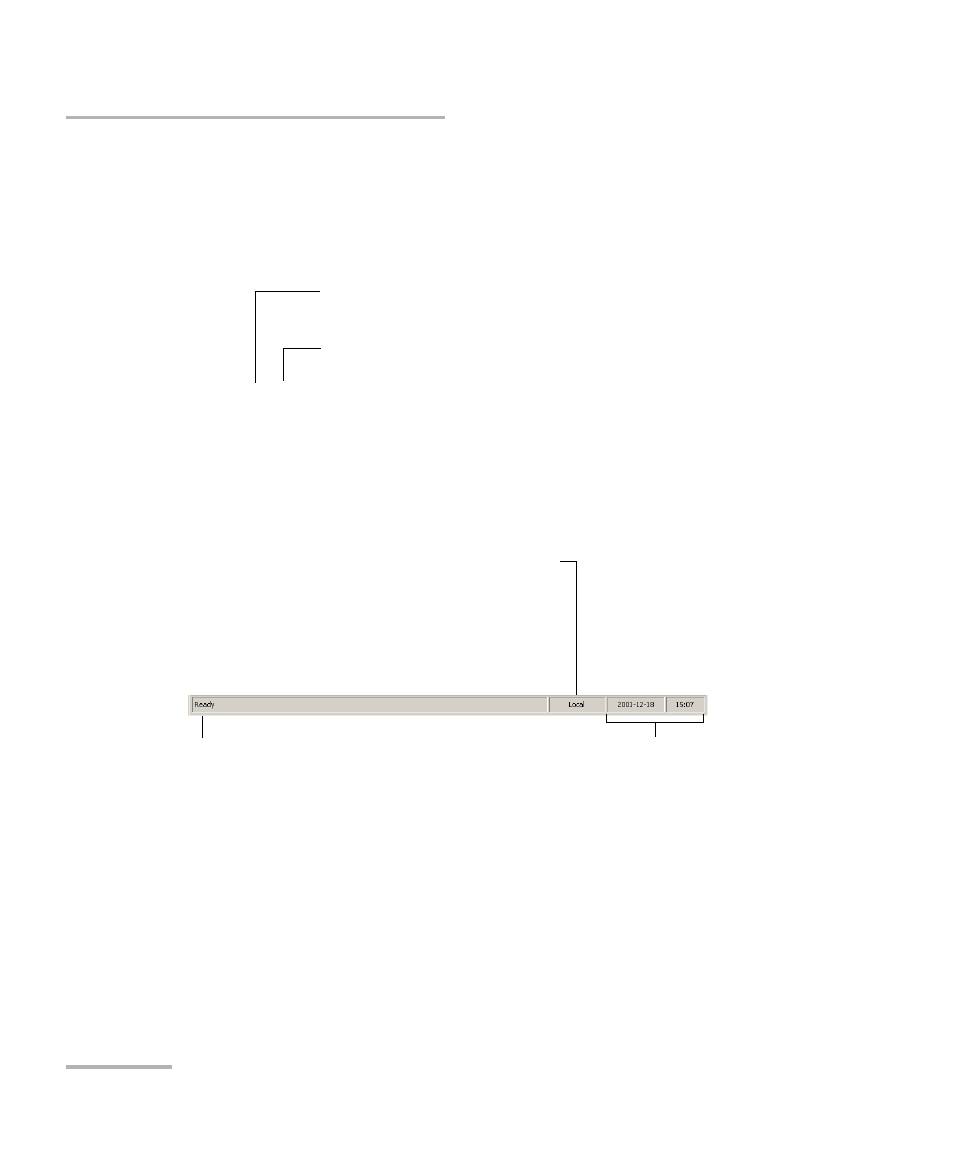

Status Bar
The status bar, located at the bottom of the main window, identifies the
operational status of the IQS-1600 High Speed Power Meter.
For more information about automating or remotely controlling the
IQS-1600 High Speed Power Meter, refer to your platform user guide.
Slot number in which module is inserted
(0 identifies first slot)
Controller unit or expansion unit (1 to 999) housing
the module
[ 999 – 1 ]
Current date and time Module/unit status
Local: Module controlled locally only.
Remote: Module controlled remotely, but
local commands can also be used.
Lockout: Module controlled remotely only.
Control mode
