Introducing the IQS-1600 High Speed Power Meter
2 IQS-1600
Main Features
It features a high sampling rate and fast stabilization, and comes in one-,
two- or four-channel options (each detector is independent). It also
provides you with power level and TTL voltage synchronization triggers.
The synchronization triggers will operate simultaneously on dual- and
quadruple-channel models.
The graphical display mode shows all channels on a real-time graph,
which you can analyze afterwards.
The IQS-1600 High Speed Power Meter supports local control (via the
IQS Manager software) and remote control (through GPIB, RS-232, or
Ethernet TCP/IP using SCPI commands or the provided LabVIEW drivers).
For more information, refer to the IQS platform user guide.

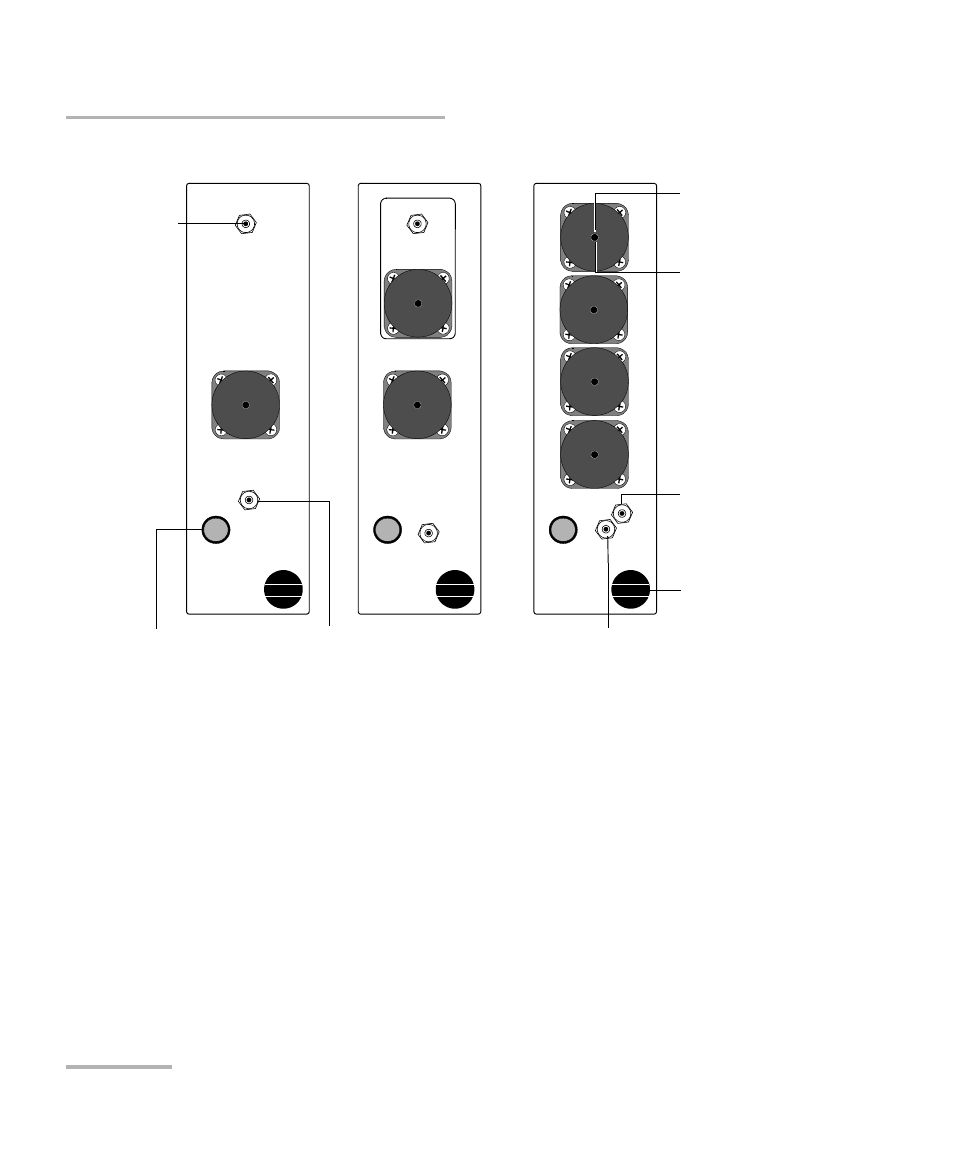

Power Meter
