Getting Started with Your High Speed Power Meter
10 IQS-1600
Inserting and Removing Test Modules
3. Position the module so that its front panel is facing you and the top and
bottom protruding edges are to your right.
4. Insert the protruding edges of the module into the grooves of the unit’s
module slot.
5. Push the module all the way to the back of the slot, until the retaining
screw makes contact with the unit casing.
6. While applying slight pressure to the module, turn the retaining screw
knob (located at the bottom of the panel) clockwise until the knob is
horizontal.
This will secure the module into its “seated” position.

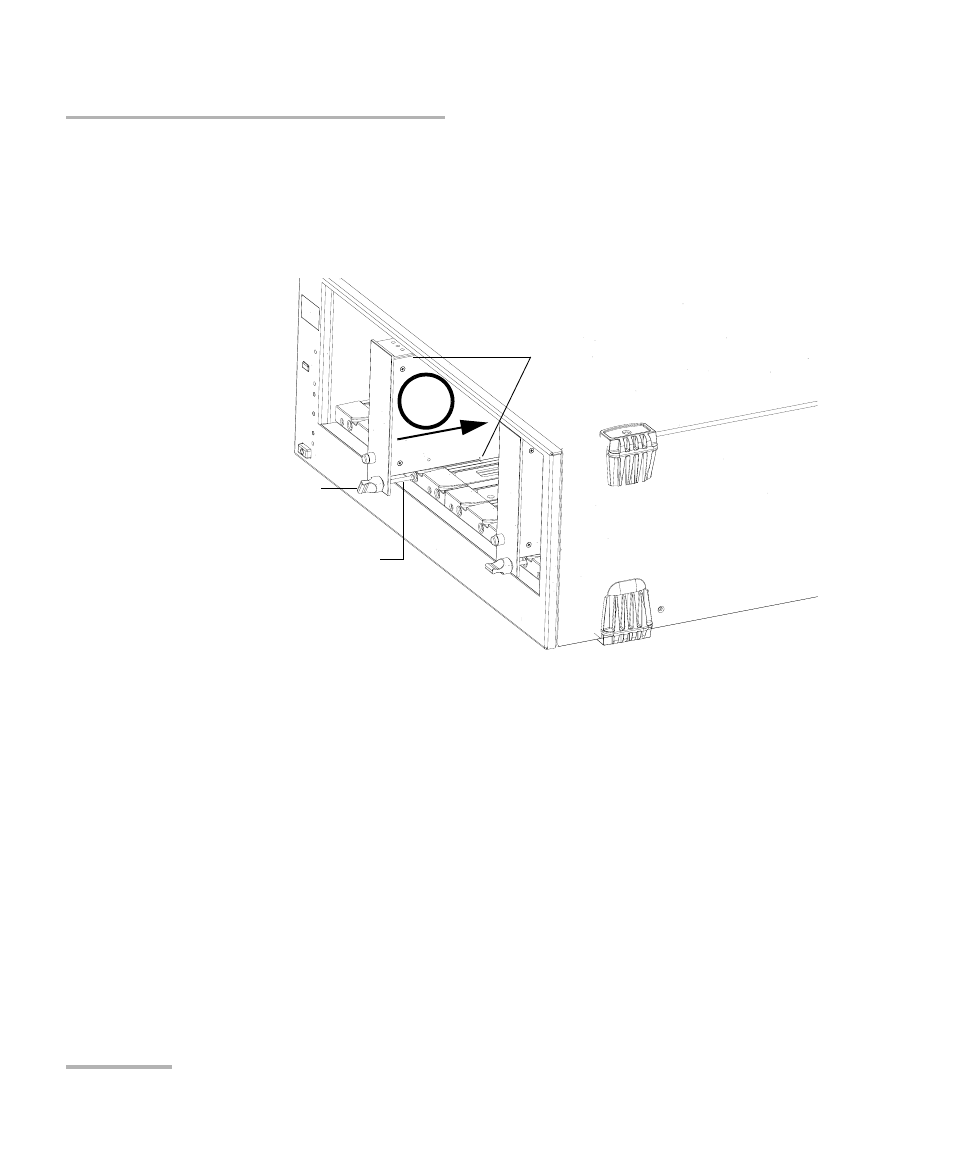

Retaining screw
Retaining screw knob
Protruding edges
(right side of module)
5
