Managing EDFA Test Results
Managing EDFA Test Results
The application allows you to view and manage your EDFA test results. You
can view the graph of your acquisition, results for a single channel, global
results and information about the trace.
EDFA Graph Tab

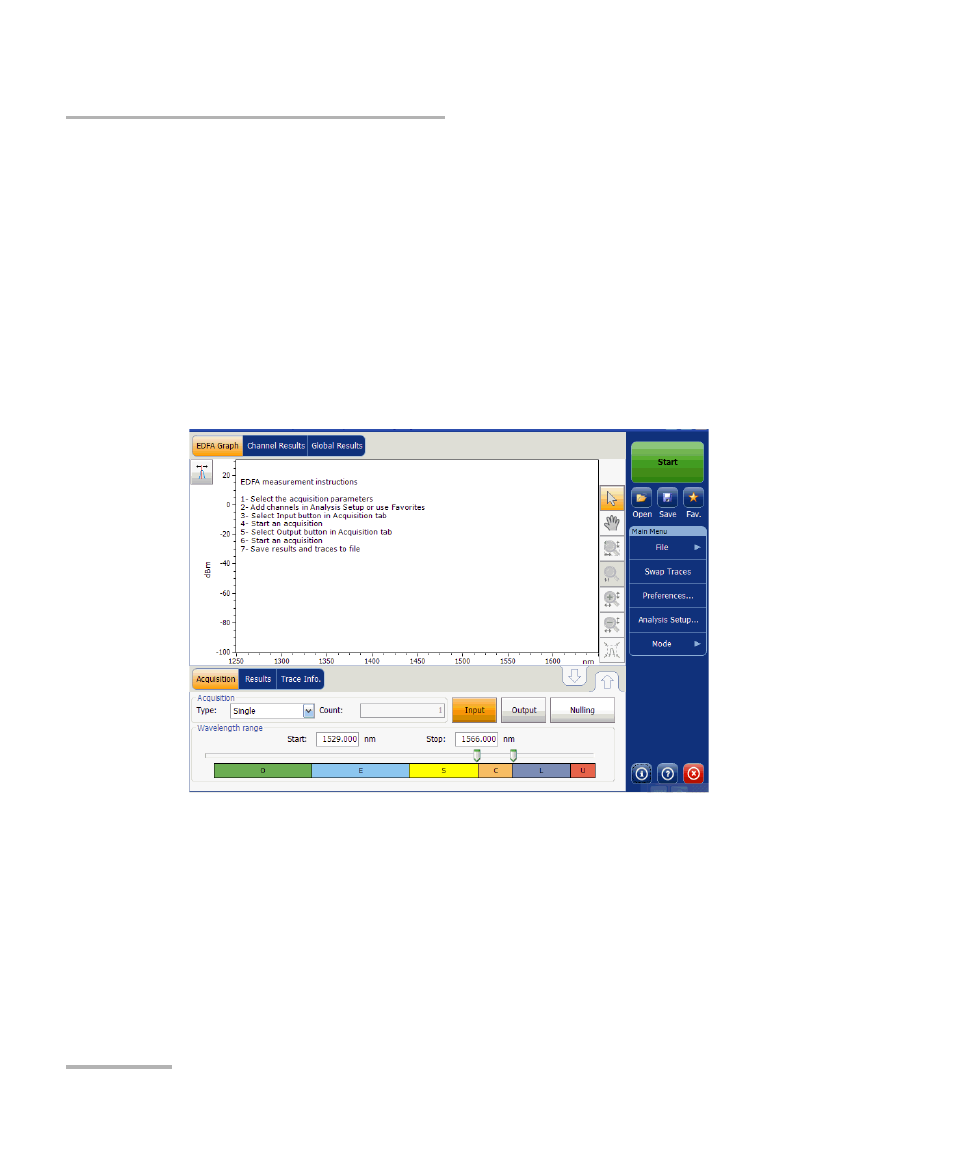

The EDFA Graph tab allows you to view the spectrum of the input trace
and the output trace. This graph represents the optical power against
wavelength or frequency.
