EXFO FTB -5240S/5240BP Optical Spectrum Analyzer User Manual
Page 247
Managing Files and Test Configurations
OSA
241
Using the Discover Feature
To start an automatic setup measurement:
Note: You cannot do a setup measurement in offline mode.

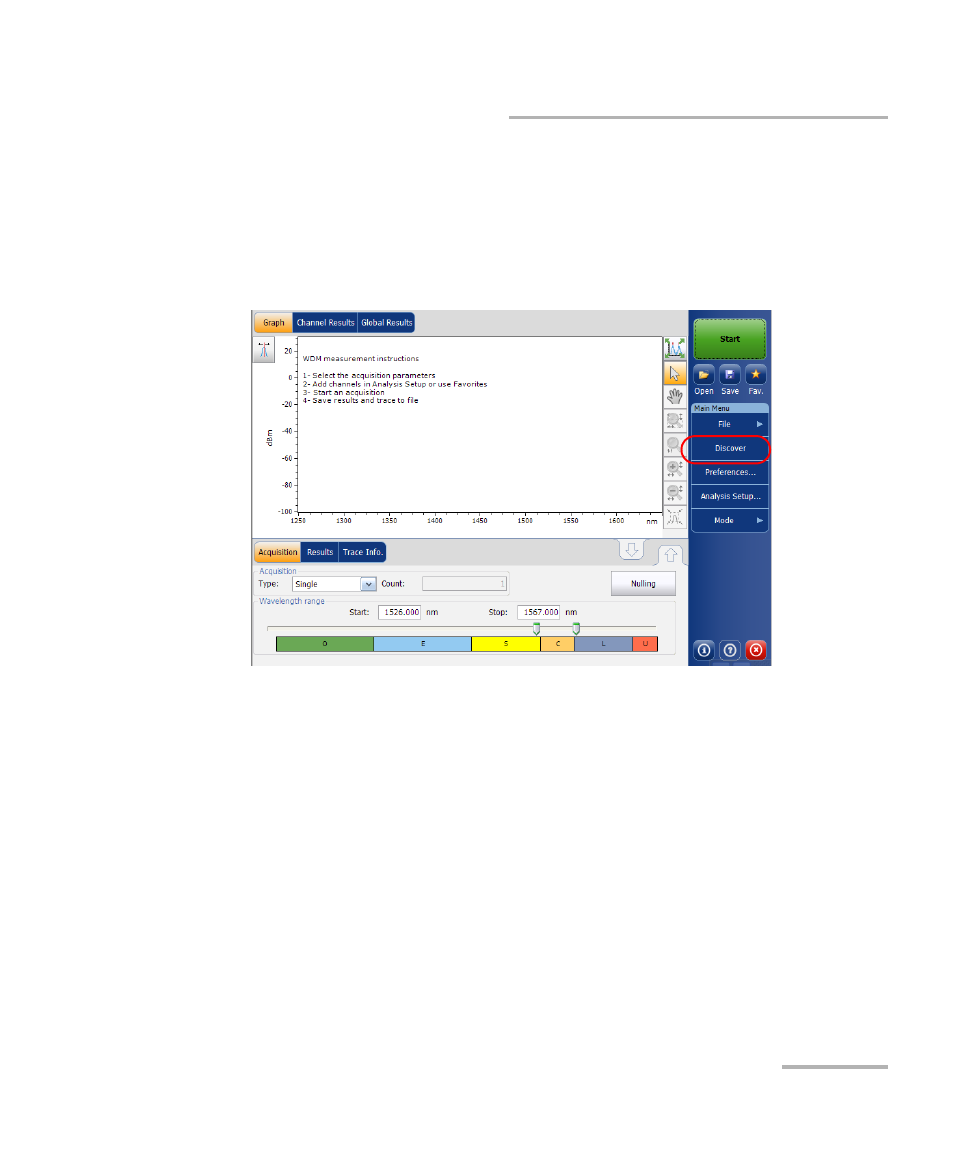

From the Main Menu, press Discover. The Start button turns into a Stop
button and the first scan of the discover starts.
Note: If you already have an active trace on screen that was modified, you will be
prompted to save it. Any reference trace will be cleared.
You are notified that the discover acquisition is in progress in the status bar.
When the automatic setup measurement is complete, you can start using
these newly detected parameters. Simply press Start to perform another
measurement with the newly found settings.
