Results tab – EXFO FTB -5240S/5240BP Optical Spectrum Analyzer User Manual
Page 299
Managing Results
OSA
293
Managing FP Test Results
Results Tab
You can view the analysis of the FP laser source from the Results tab.
To view results:
From the main window, select the Results tab.

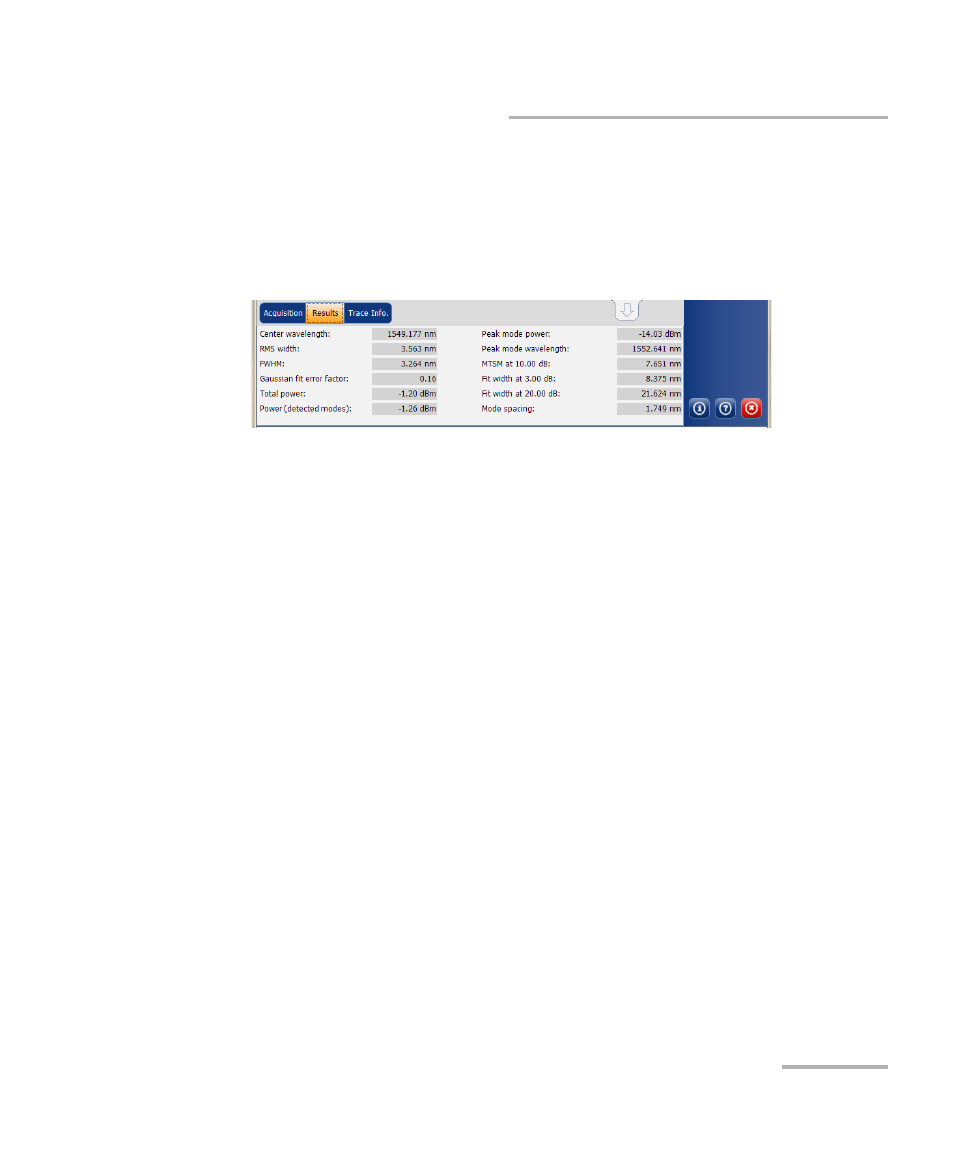

The following information related to the FP measurement is displayed in
the Results table:
Center wavelength/frequency: spectral center-of-mass for the peak.
RMS width: indicates the second moment of the spectral distribution.
FWHM: indicates the full width at the half-maximum position.
Gaussian fit error factor: indicates the normalized RMS error factor in
the Gaussian fit.
Total power (dBm): indicates the integrated power of the acquisition
window.
Power (detected modes) (dBm): indicates the integrated power from
the starting point of the first mode to the ending point of the last mode.
Peak mode power (dBm): indicates the power of the peak mode of the
Fabry-Perot laser.
