Managing Results
262
FTB-5240S/S-P/BP
Managing WDM Test Results
Managing WDM Test Results
The application allows you to view and manage your WDM test results. You
can view the graph of your acquisition, results for a single channel, global
results and information about the trace.
Graph Tab

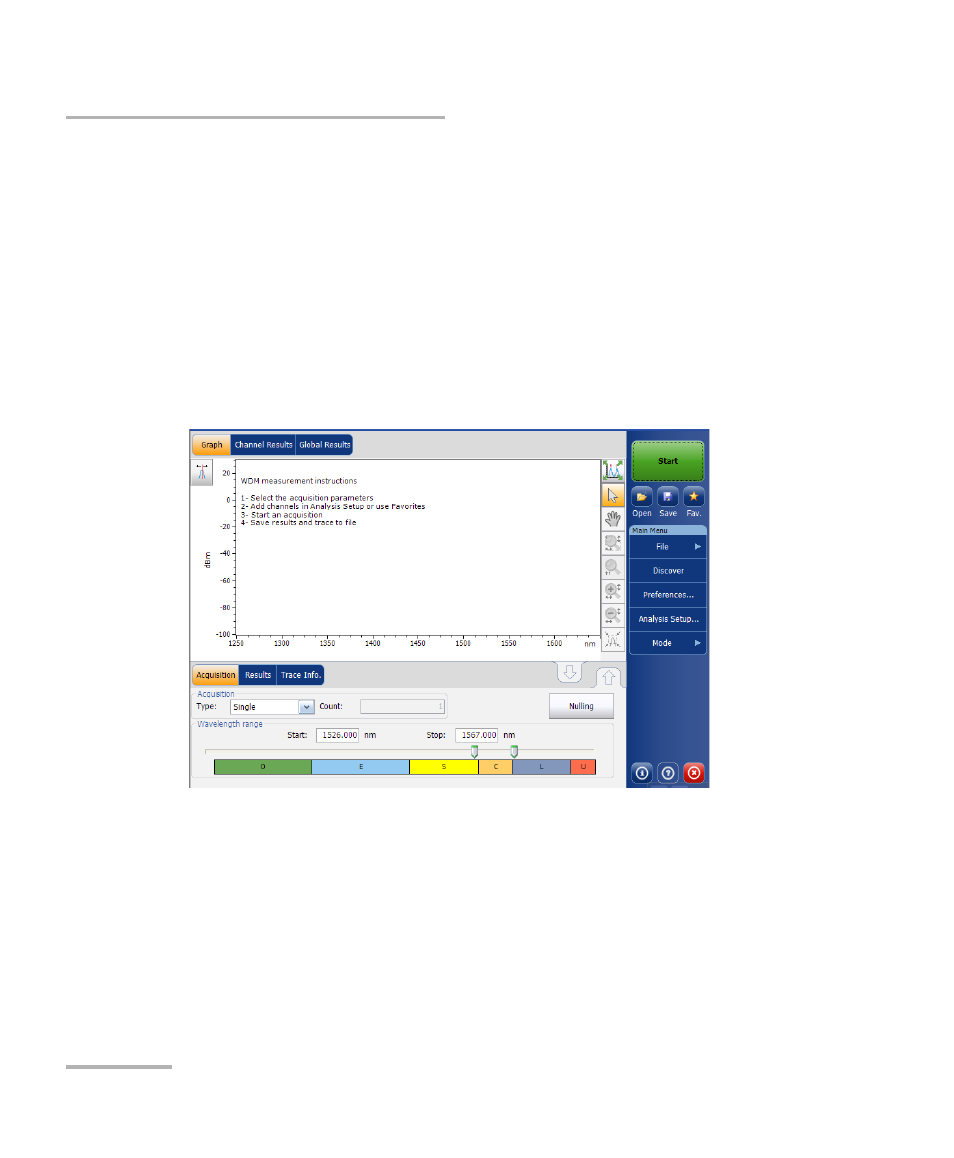

The Graph tab allows you to view the spectrum of the active and reference
traces. This graph represents the optical power against wavelength or
frequency.
