DI-206 ISDN Remote Router

84

Configuration and

Management

192.168.100.2

192.168.100.3

192.168.100.5

192.168.100.4

192.168.100.1

Single

Global

IP Address

176.220.22.1

LAN

LAN

Port

Local IP

ISDN

Port

WAN

Router

NAT

Translator

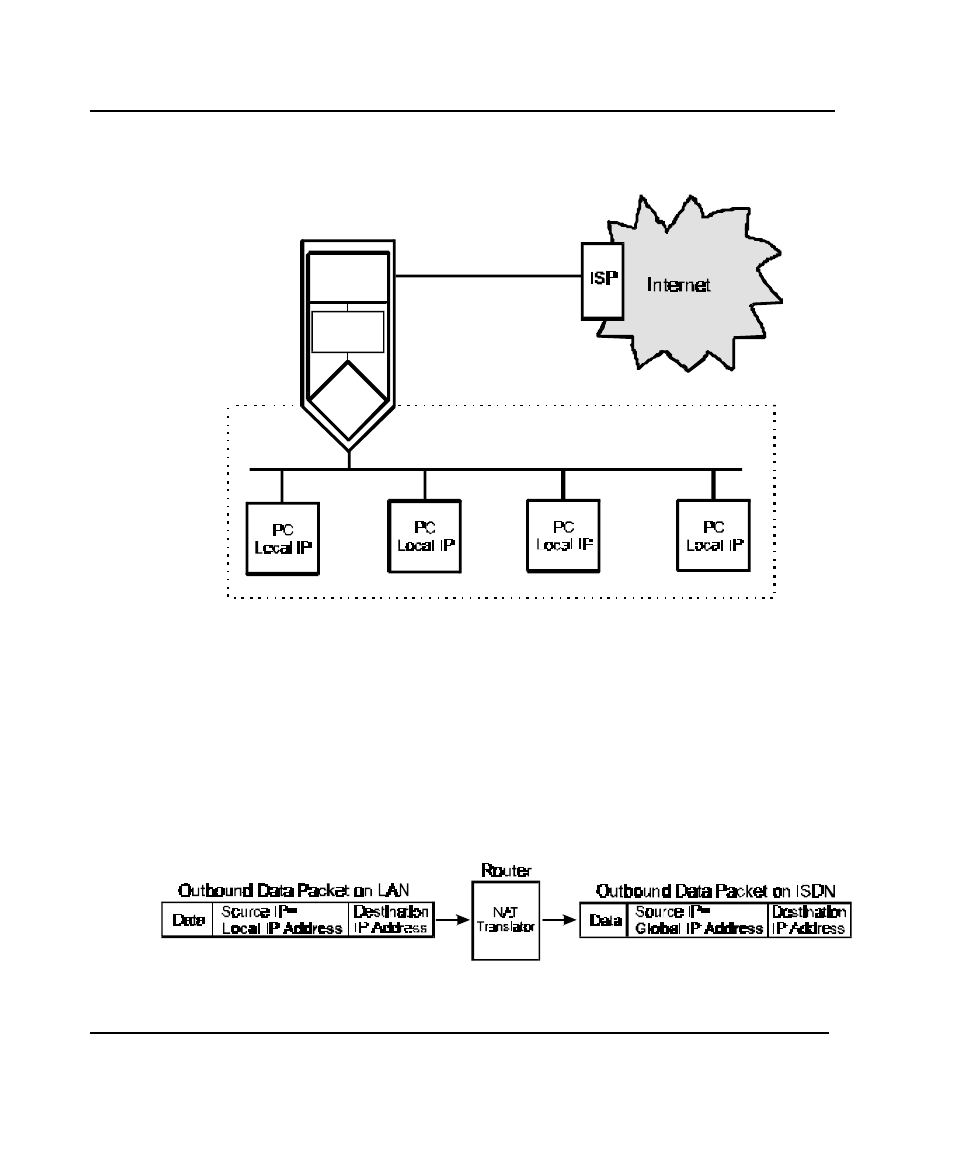

Please note that in the above diagram, the Gateway IP address settings
for the local PC’s needs to be set to 192.168.100.1, the LAN IP
address of the router.

NAT manipulates the IP addresses in packet headers on a one-to-one
basis. An outgoing data packet (a packet originating from a computer
on the local LAN and destined for a computer outside the private
network) will have its IP address translated as shown below.
