DI-206 ISDN Remote Router

70

Configuration and

Management

Configuring a Filter Set

Under the Advanced Functions menu, select Filter Configuration.

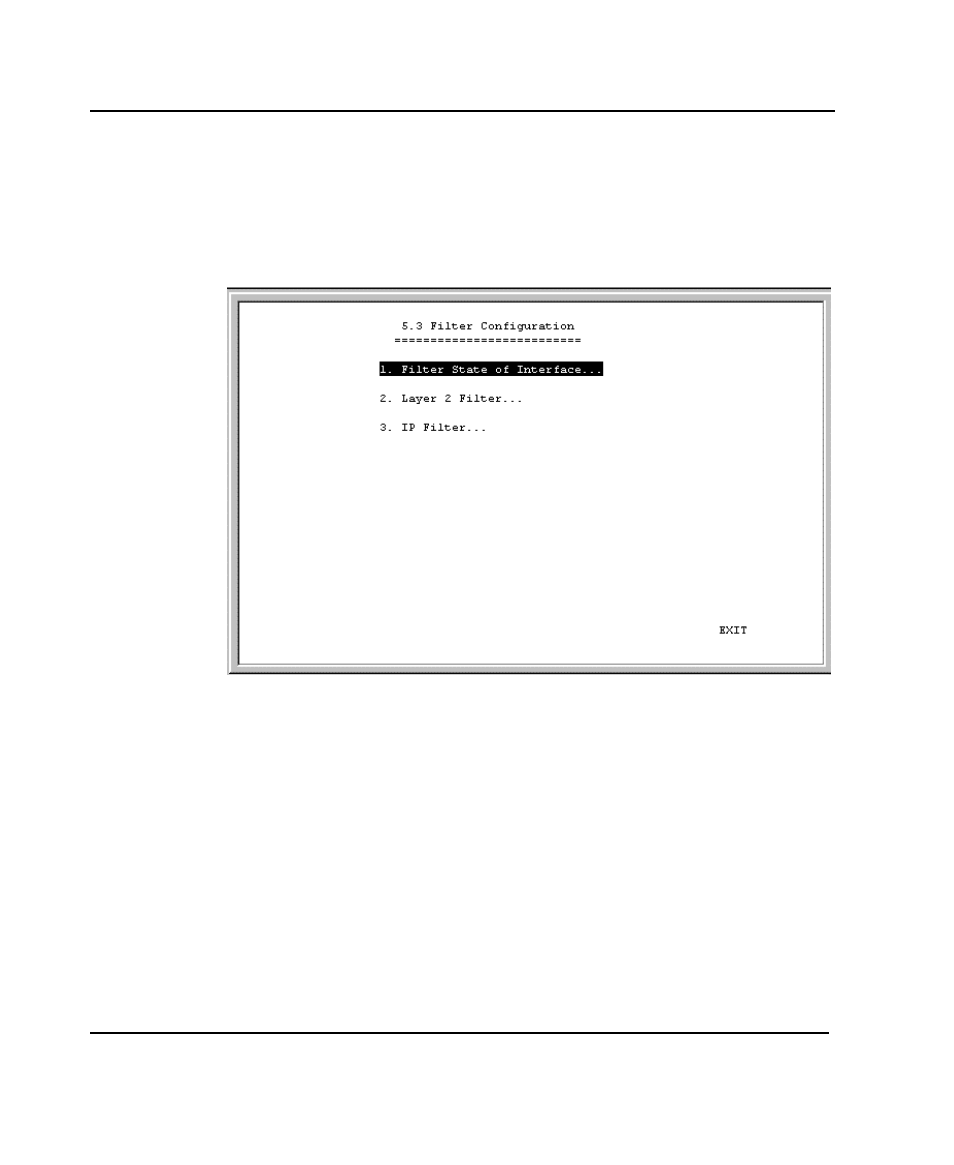

You will see the following screen:

The three sub-menus are described as follows:

Filter State of Interface – This is used to choose the default,

routing decisions for packets, not meeting the criteria for specific
filters.

Layer 2 Filter – This is a data-link layer (protocol independent)

filter. Foreknowledge of the specific protocol, used on the interface
(LAN or WANs), is needed to make effective use of this filter.

IP Filter – This is an IP protocol specific filter, allowing you to,

among other things, prohibit specific packets from entering the LAN.
