D-Link DI-206 - Manual (Page 64)

DI-206 ISDN Remote Router
52 Configuration and
Management

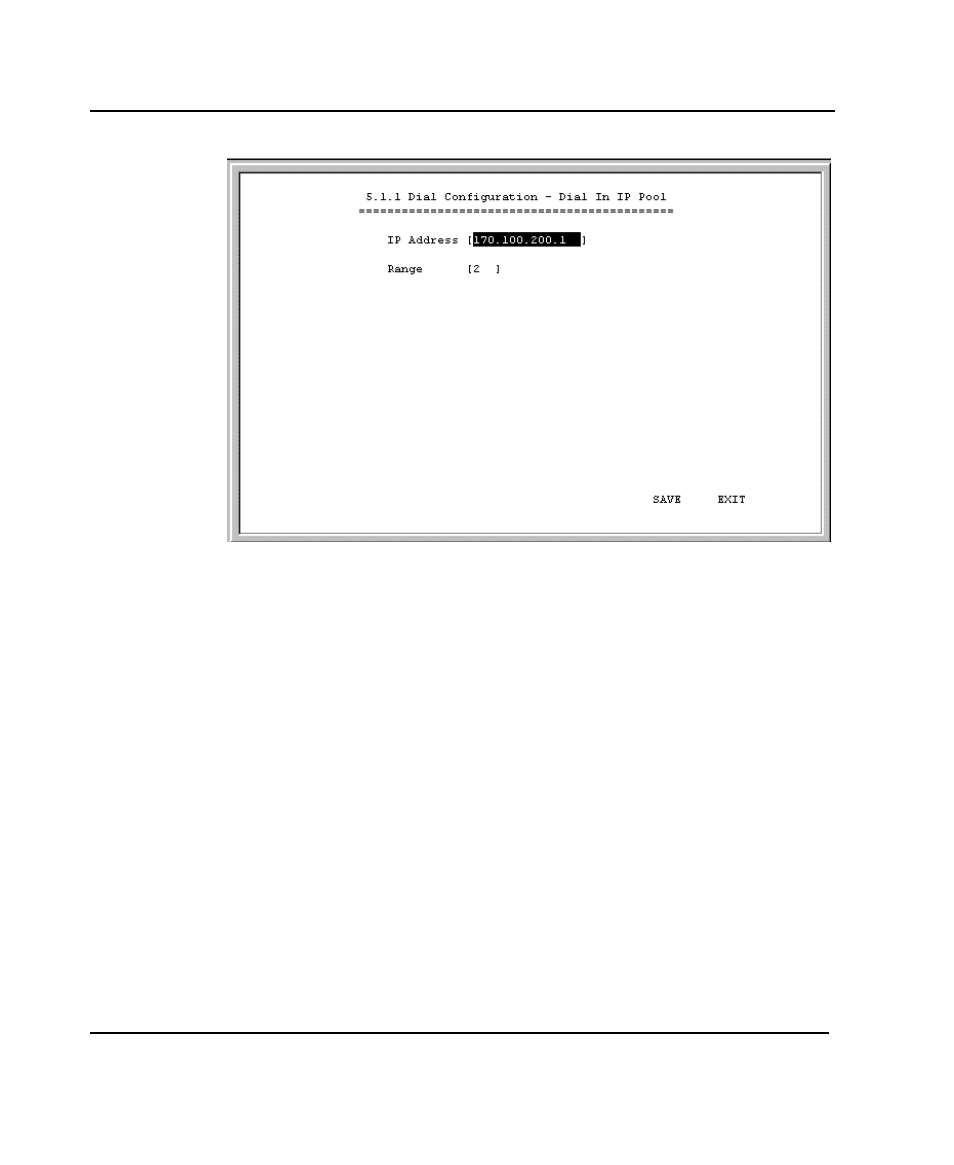

The items are described as follows:
•
IP Address – This is the first IP Address that will be assigned to a
dial-in user.
•
Range – This is the number of IP Addresses that can be assigned.
In the window shown above, dial-in users will be assigned the IP
Addresses 170.100.200.1 or 170.100.200.2 (only two are
necessary since the router used in the examples has only two ISDN
ports).
ISDN Link 1
This submenu contains a number of settings (shown below) which allow
you to configure the router to dial out.
