DI-206 ISDN Remote Router

58

Configuration and

Management

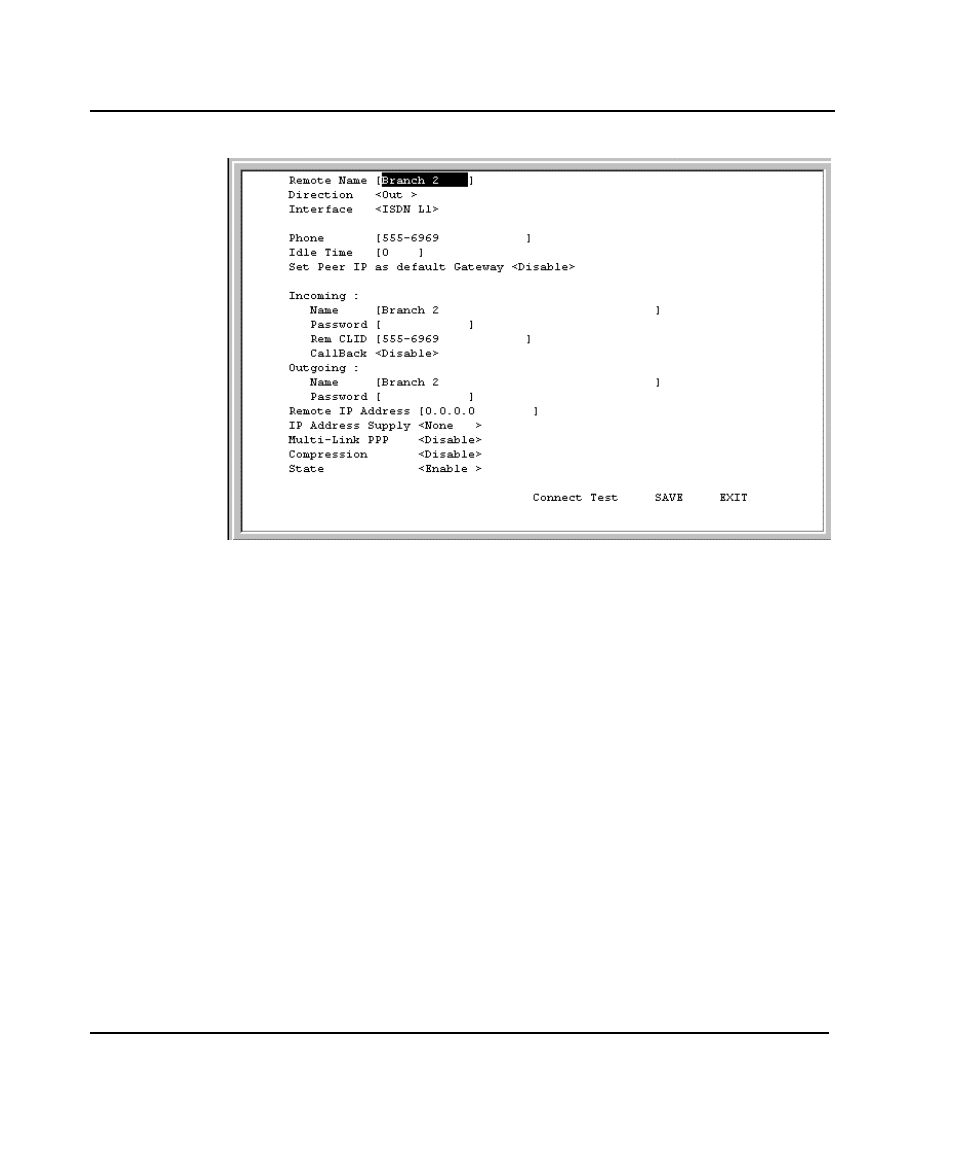

The parameters in the above window are described as follows:

Remote Name – Name for the remote network that the DI-206 is

being set up to connect with.

Direction – Dial-[In], dial-[Out], or [Both]. This field defines

whether the router on the other network will dial-[In] to the DI-206
to establish a connection, the DI-206 will dial-[Out] to the other
network, or a connection can be established [Both] ways.

When this is set to In, the DI-206 will only establish a connection
with the other network by receiving calls on the ISDN port specified
in the Interface field below. Also, the incoming calls will be subject
to the Name, Password and Rem CLID fields in the Incoming
section below.

When this is set to Out, the router will only make calls on the ISDN
interface specified in the Interface field below. Also, the outgoing
