DI-206 ISDN Remote Router

Configuration and Management

73

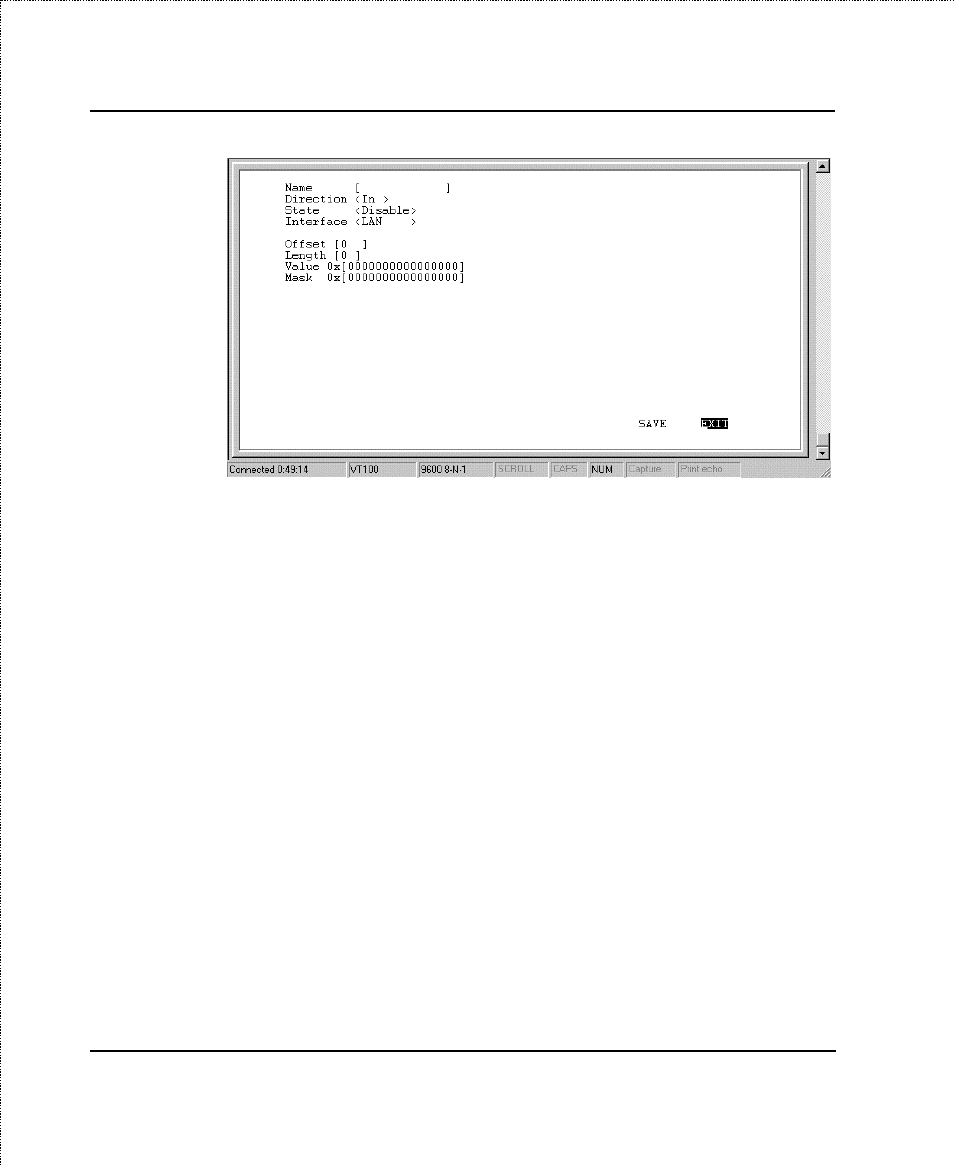

The parameters of a filter are described below:

Name – This is a 12 character (maximum), alphanumeric, user-

defined name, used to identify the filter.

Direction – This defines the direction of the frame relative to the

Interface parameter below.

State – This is used to choose the routing decision applied to the

frame. The three decisions are described:

1. forwardThis allows the routing of the frame, if it has met the

criteria of the corresponding filter.

2. drop – This drops (doesn’t allow routing for) a specific frame

that has met the criteria of the corresponding filter.

3. disable – This does not apply the protocol independent filter.

Interface – This applies the filter to a specific interface, either LAN

or one of the ISDN interfaces.
