HEATING A COOLING
5F,H
Open-Drive Compressors
DISCHARGE
SHUTOFF
VALVE
1-3/8" ODF
HIGH-PRESSURE CONTROL
CONNECTION
1/4" IPS
SUCTION MANIFOLD COVER PLATE
(REMOVE FOR ACCESS TO SUCTION
STRAINER)
1/4" IPS GAGE CONNECTION
DOWEL HOLE
OIL PRESSURE REGULATOR
SEAL COVER
1/4 IPS PNEUMATIC
CONTROL CONNECTION
OIL PUMP PRESSURE
3/8 IPS
OPENING TO CRANKCASE
CONTROL OIL PRESSURE
CAPACITY CONTROL VALVE
CRANKCASE
HEATER
CASING
(PIPE CAP 1/2" FPT)
SUCTION
SHUTOFF
VALVE
1-5/8" ODF
OIL
FILLER
PLUG
5/8"-18
NAMEPLATE
OIL
PRESSURE
CONNECTION
1/4" IPS
DOWEL HOLE.
PUMP INTAKE PLUG (MAGNETIC)5/8"-l8
1/4" IPS GAGE CONNECTION
LOW-PRESSURE CONTROL
CONNECTION TO DUAL
PRESSURESTAT 1/4" IPS
OIL PUMP ROTATION ARROWS
OIL DRAIN PLUG 5/8 -18

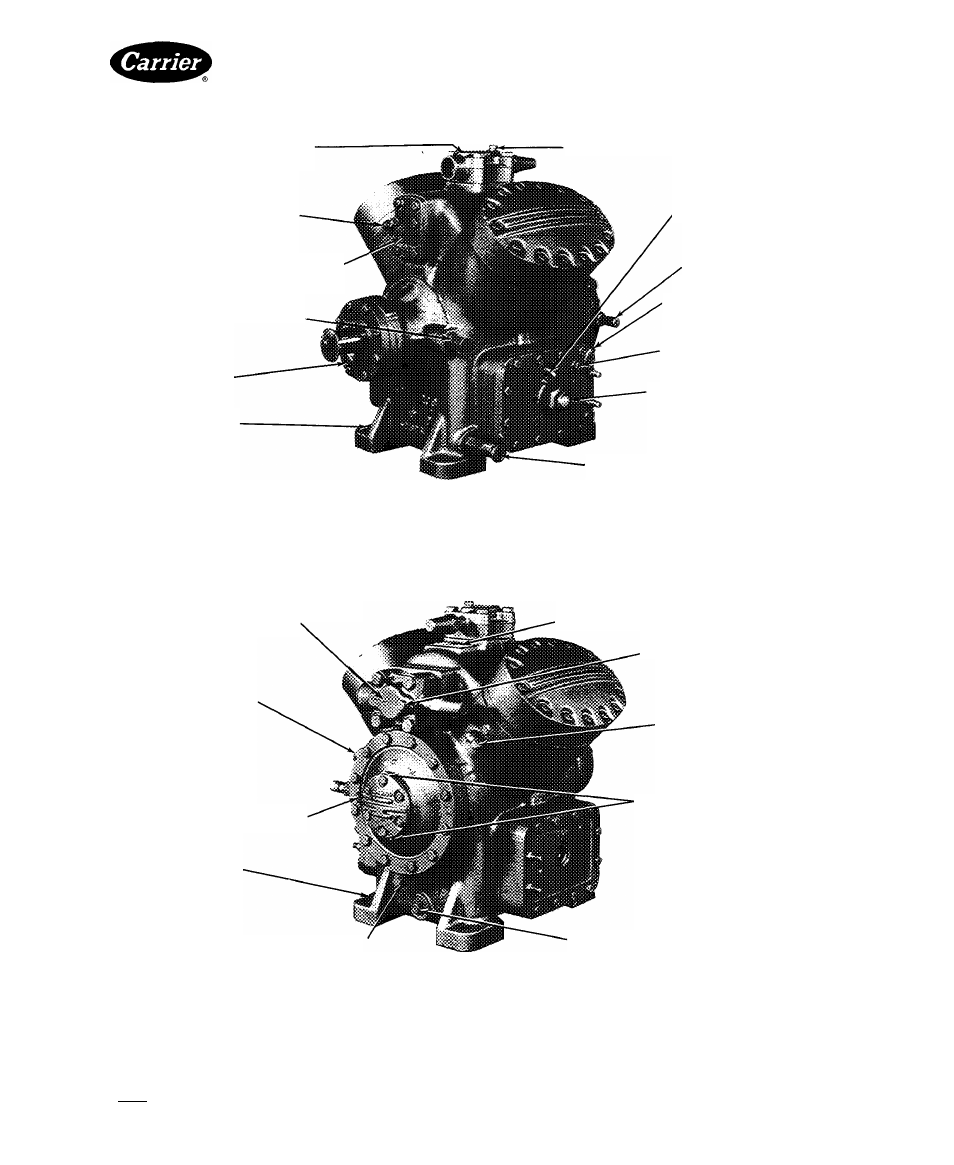

Fig. 3 — 5F40; 4-Cylinder Compressor
Bool<|2
PC 111
Catalog No 530-526
PrintedinUSA
Form5F,H-11SI
Pg4
2-86
Replaces: 5F,H-9SI
Tab 2a
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
For replacement items use Carrier Specified Parts.
