Form I-SC, P/N 207696 R11, Page 6

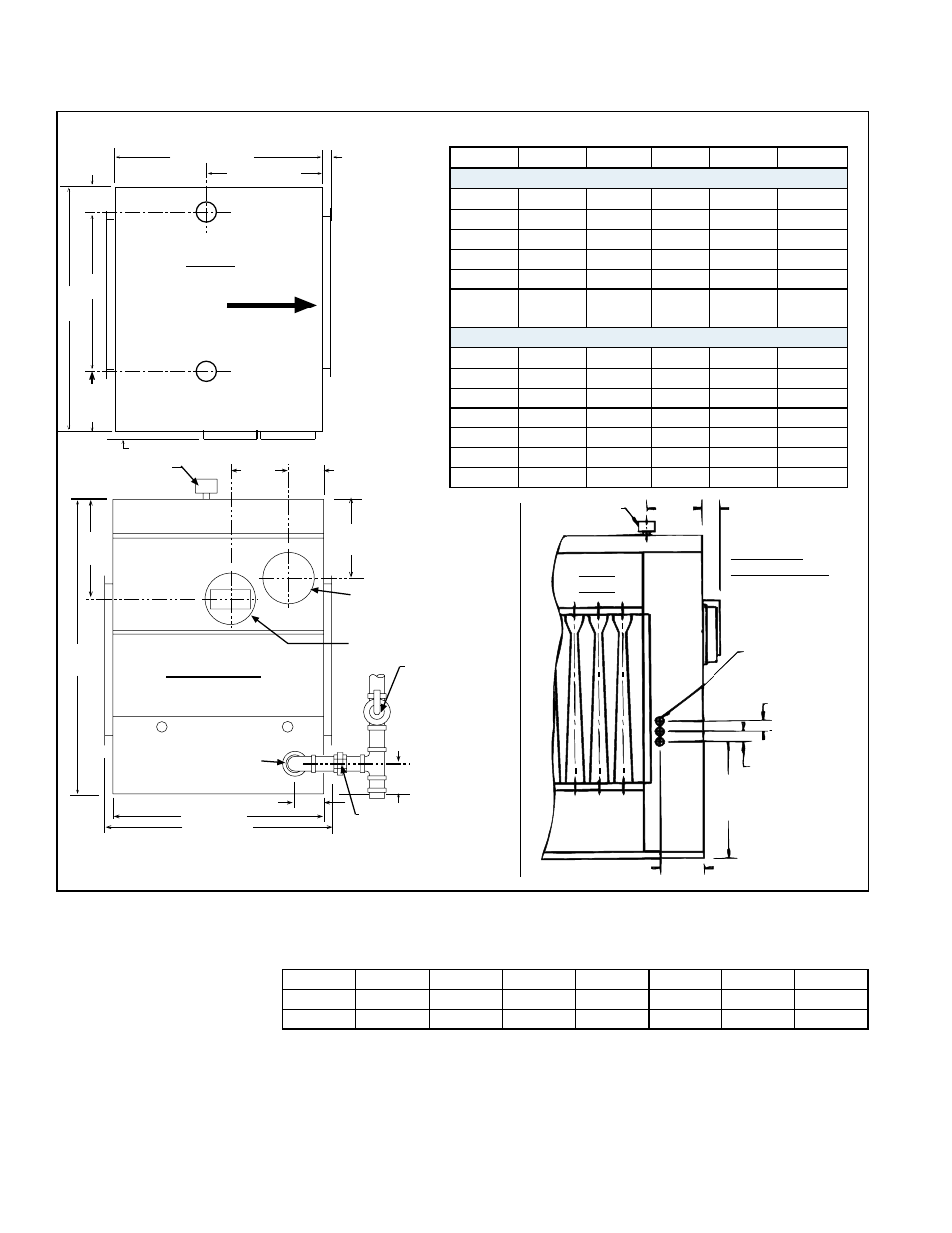

FIGURE 2 - Model SC Dimensions - inches ±1/8 (mm ±3)
NOTE: For duct connection dimensions, see FIGURE 21,
Paragraph 6.4.4.
7-1/2
(191)
4-9/16 (116)
E
D
24-1/8 (613)
26 (660)
1-1/2 (38)
Airflow
24-1/8 (613) 15/16 (24)
A
B
Mounting Socket
(1” IPS, free turning
female pipe threads)
2 (51)
2-13/16
(71)
6” I.D. Combustion
Air Inlet Collar
6”O.D. Vent Connection
A manual shutoff
valve with 1/8”
NPT plugged tap,
accessible for test
gauge connection,
must be installed
immediately up-
stream of the gas
supply connection.
Control Side View
Top View
Seal with Grommet
6-1/16
(154)
C
2-3/4
(70)
Ground Joint Union
12-9/16 (319)
4.2 Dimensions
Suspension
Point
6-1/16
(154)
2 (51)
1-1/8 (29)
1-1/8 (29)
12-23/32
(323)
4-3/4 (121)
Seal all
electrical
connection
entrances
with bushings.
Electrical
Connections Rear
View
5.0 Suspension
and Mounting
Before installing, check the supporting structure to be sure that it has sufficient load-
carrying capacity to support the weight.
Net Weight (lbs and kg)
Weights
Suspension
SC A B C D E
Dimensions (inches)
100 22-15/32 13-9/16 32-1/4 8-1/8 6-15/16
125 25-7/32 16-5/16 32-1/4 8-1/8 6-15/16
150/175 30-23/32 21-13/16 32-1/4 8-1/8 6-15/16
200/225 36-7/32 27-5/16 35-1/4 10-3/4 9-15/16
250/300 44-15/32 35-9/16 35-1/4 10-3/4 9-15/16
350 49-31/32 41-1/16 35-1/4 10-3/4 9-15/16
400 55-15/32 46-9/16 35-1/4 10-3/4 9-15/16
Dimensions (mm)
100 571 344 819 206 176
125 641 414 819 206 176
150/175 780 554 819 206 176
200/225 920 694 895 273 252
250/300 1130 903 895 273 252
350 1269 1043 895 273 252
400 1409 1183 895 273 252
Size 100 125 150-175 200-225 250-300 350 400
lbs 158 178 203 283 321 350 410
kg 72 81 92 128 146 159 186
Model SC duct furnaces have two-point suspension. See hanger centerline dimen-
sions in FIGURE 2, Paragraph 4.2.
At each suspension point, the unit is factory-equipped with a free-turning, female, 1"
NPT pipe hanger. Suspend by connecting the pipe hanger to a 1" threaded pipe. See
suspension method on the left in FIGURE 3. As an alternative method, the factory-
installed pipe hanger may be removed and the heater suspended as illustrated on the
right in FIGURE 3.
4.0 Clearances and Dimensions (cont'd)
