Page 31
RTU Open
25
Wiring specifications
Cable from sensor to controller:
If <100 ft (30.5 meters) 22 AWG, unshielded
If >100 ft (30.5 meters) 22 AWG, shielded
Maximum length:
500 feet (152 meters)
To wire the CO2 sensor to the controller
1
Wire the sensor to the controller. See appropriate diagram below.
2
Install a field-supplied dedicated 24 Vac transformer or DC power supply.
3
Wire the sensor to the controller.

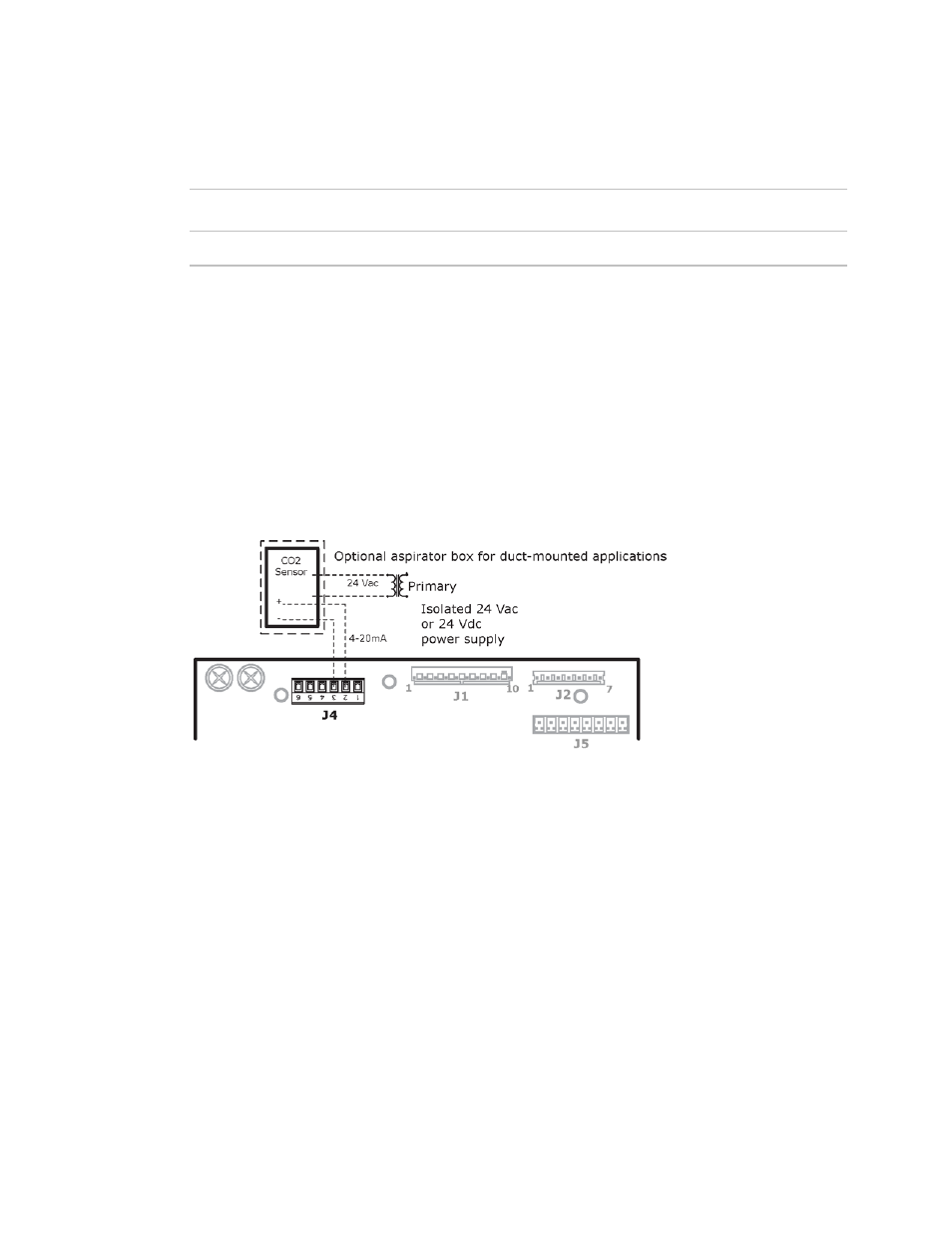

Wiring diagram for #33ZCSPTCO2:
