2.2. Description I/O expansions

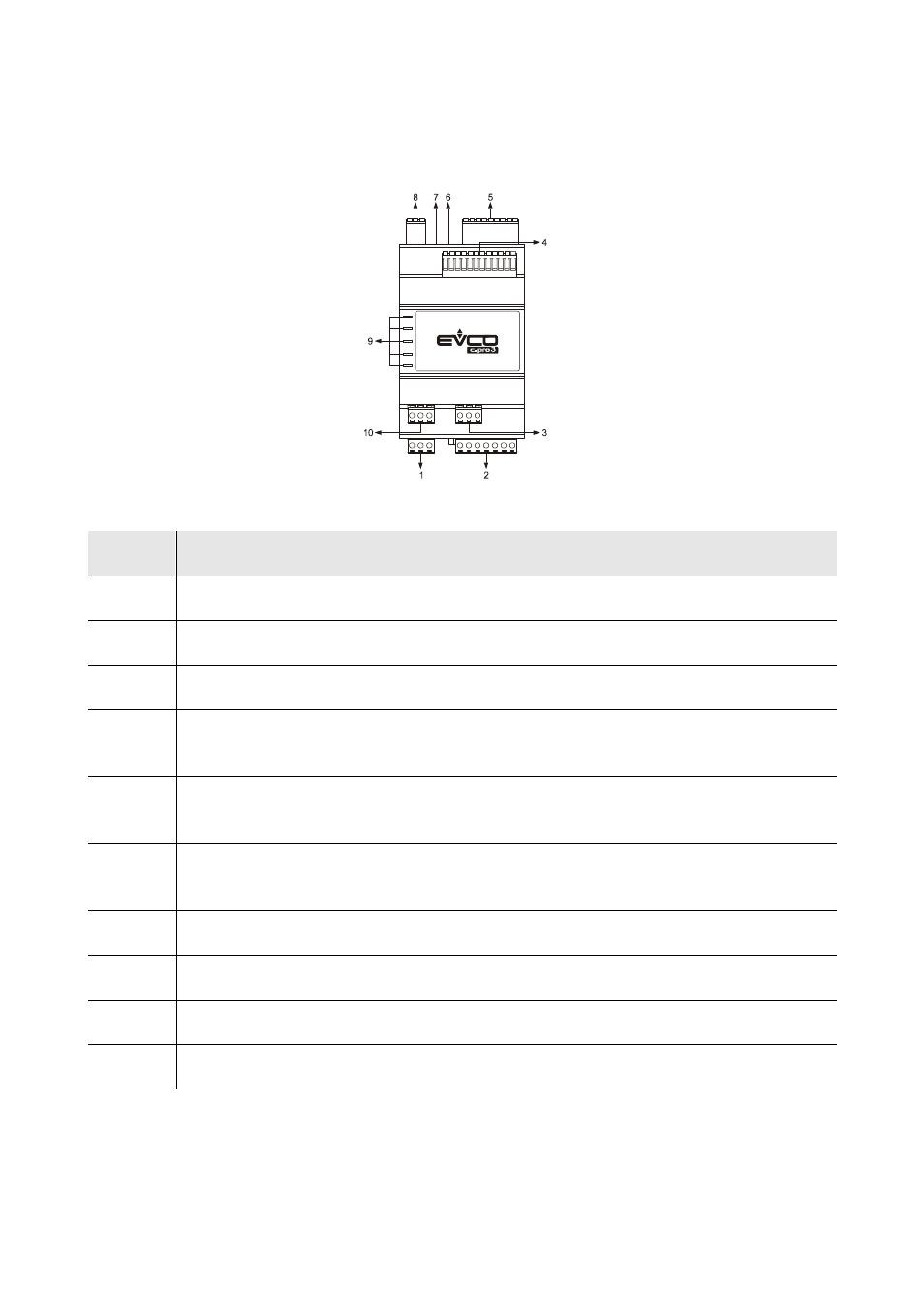

The following drawing shows the aspect of the I/O expansions.
The following table shows the meaning of the parts of the expansion.
Part Meaning
1 digital outputs 6 and 7
2 digital outputs 1 and 5
3 digital outputs 9 (available in models c-pro 3 EXP micro+ and c-pro 3 EXP kilo+ only)
4
analog inputs 7... 9, digital inputs 6... 9 and analog outputs 4... 6 (available in models c-pro 3 EXP micro+ and
c-pro 3 EXP kilo+ only)
5 analog inputs 1... 6, digital inputs 1... 5 and analog outputs 1... 3
6 OTG USB port
7 micro-switch to plug in the termination of the CAN port
8 power supply and CAN port
9 signalling LEDs
10 digital outputs 8 (available in models c-pro 3 EXP micro+ and c-pro 3 EXP kilo+ only)
