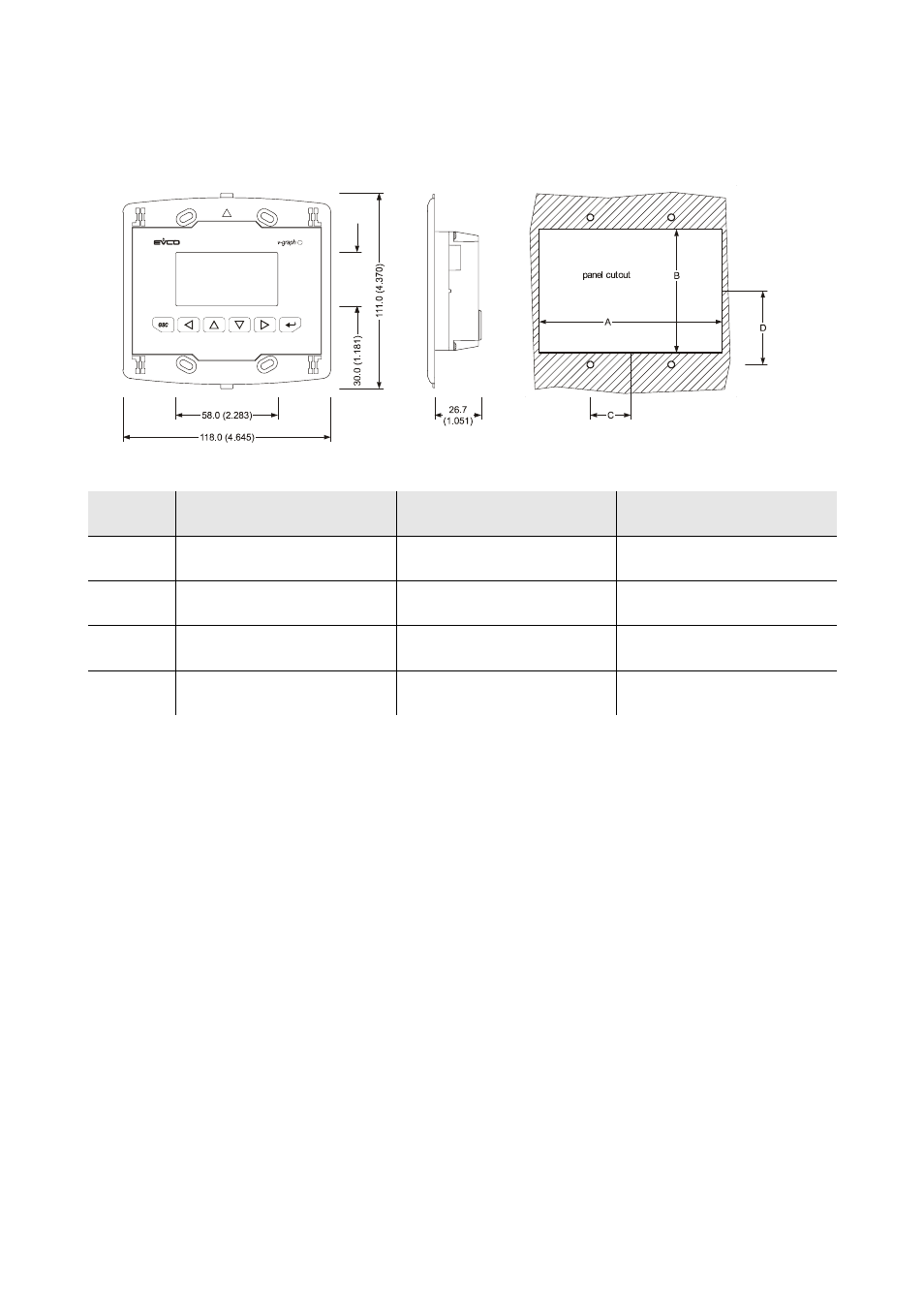

7.2.3. Size
Size in mm (in).
Size
Minimum
Typical
Maximum
A
104.0
(4.094) 104.0
(4.094) 104.8
(4.125)
B
70.0
(2.755) 70.0
(2.755) 70.8
(2.787)
C
22.0
(0.866) 23.0
(0.905) 24.0
(0.944)
D
40.8
(1.606) 41.8
(1.645) 42.8
(1.685)
