EVCO S.p.A.
c-pro 3 micro and c-pro 3 kilo | Hardware manual ver. 1.0 | Code 114CP3UKE104
page 23 of 62
4.3.1. Example of electrical connection

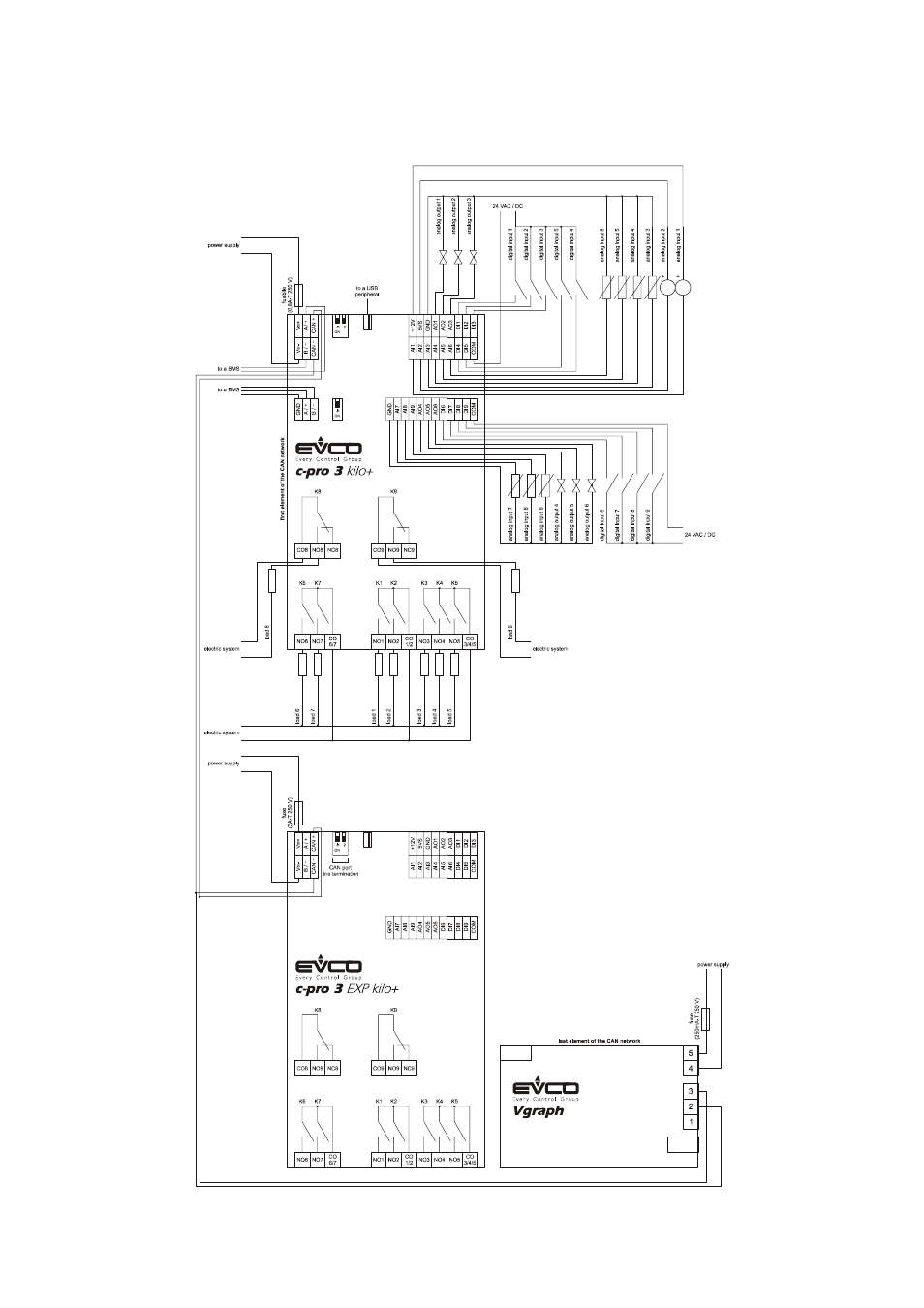

The following drawing shows an example of electrical connection of c-pro 3 kilo+ with c-pro 3 EXP kilo+ and with Vgraph.
For the devices powered at 12 VAC, the power supply of the devices in the network must be galvanically isolated one another.
