RocketLinx ES8510 and ES8510-XT User Guide: 2000513 Rev. H DSCP-Queue Mapping - 97
Configuration Using the Web Interface
DSCP-Queue Mapping

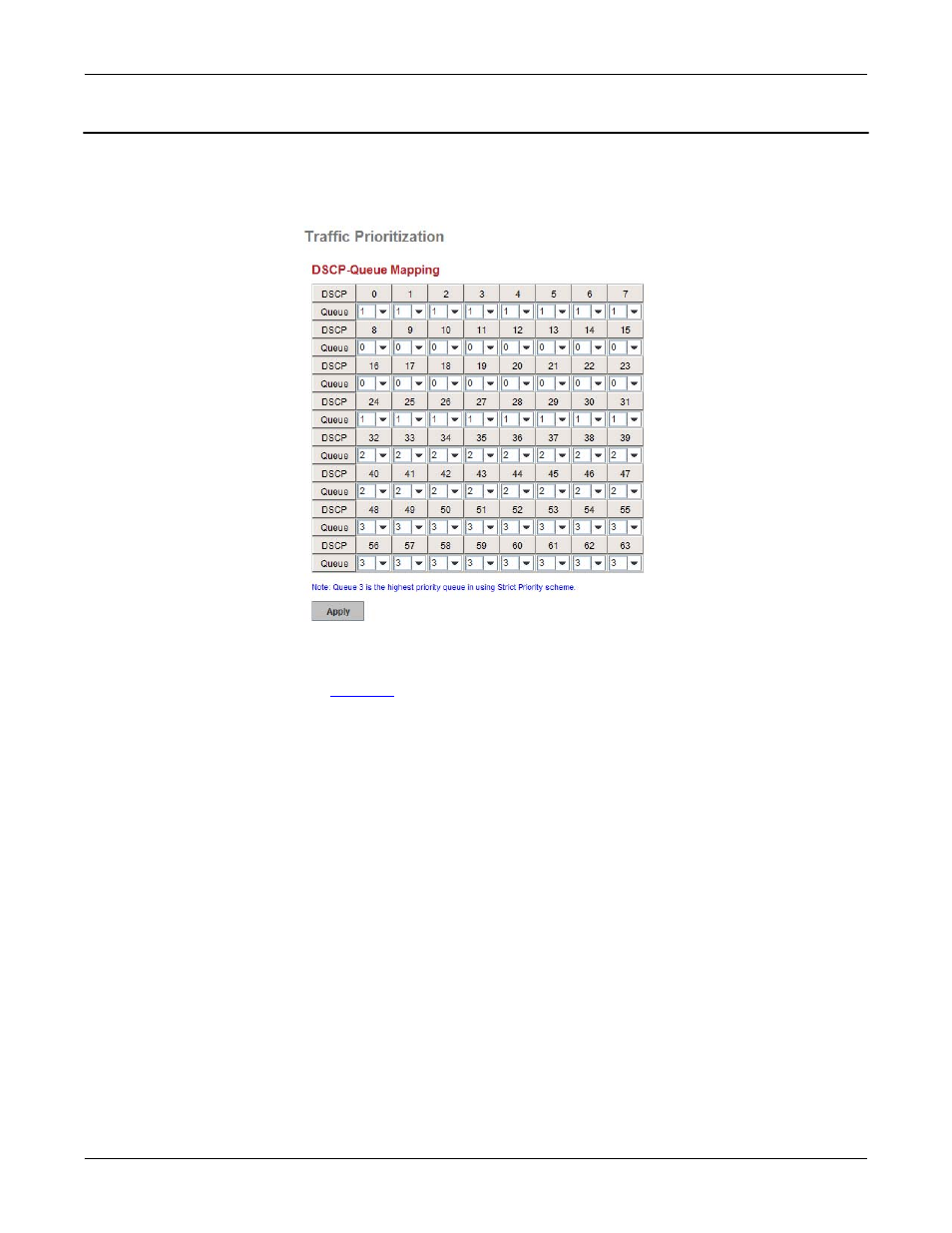

Use this page to change DSCP values to Physical Queue mapping table. Since the switch fabric of the ES8510
only supports four queues. Lowest, Low, Middle and High users should therefore assign how to map DSCP
values to the level of the physical queue. You should therefore assign how to map DSCP value to the level of
the queue. You can change the mapping table to follow the upper layer 3 switch or routers’ DSCP setting.
After configuration, press Apply to enable the settings.
Note: You must Save the settings ( Page 123 ), if you want to maintain these settings if the ES8510 is powered
off.
