14 - Panel Layout
RocketLinx ES8510 and ES8510-XT User Guide: 2000513 Rev. H
Hardware Installation
Panel Layout

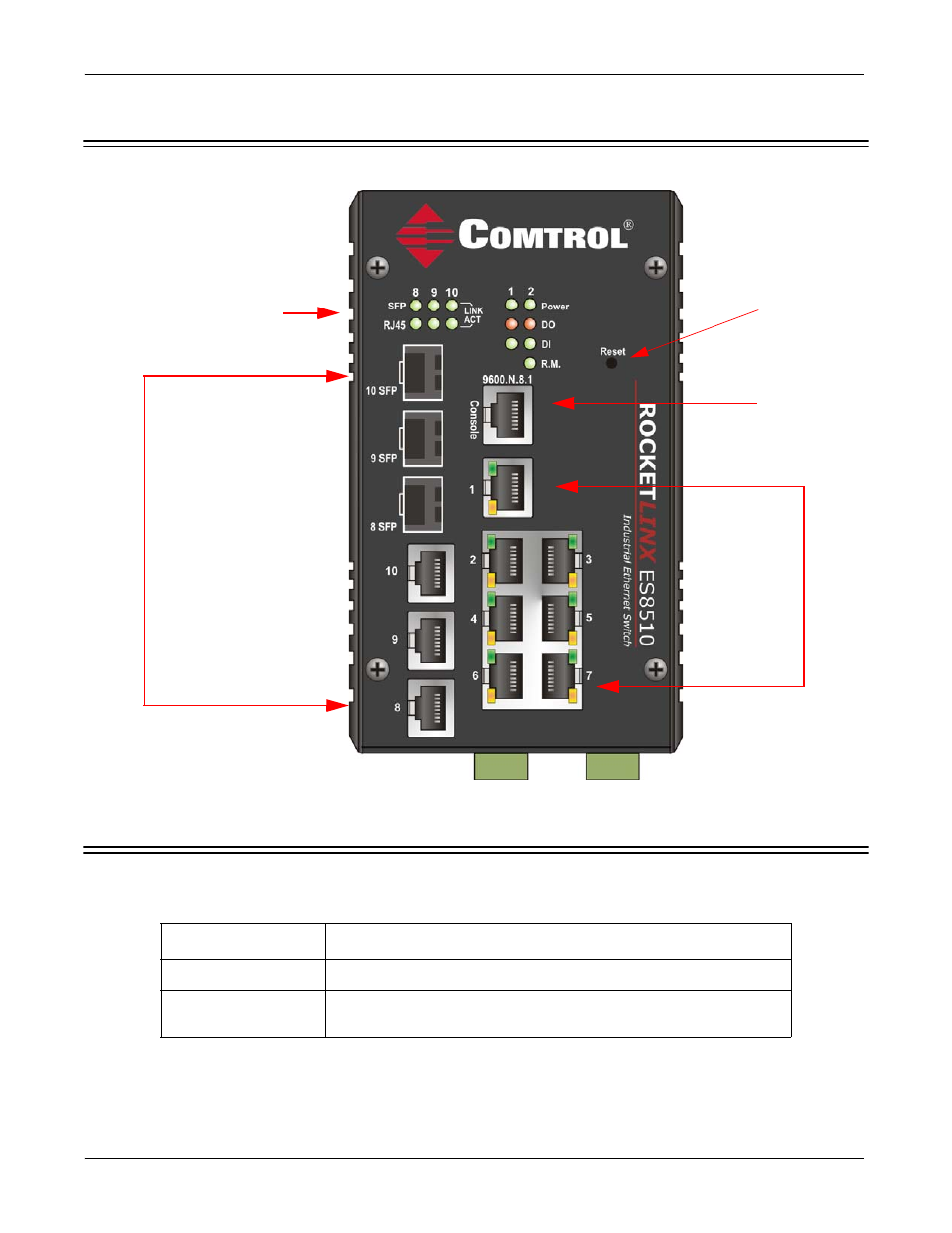

The ES8510 provides ten 10/100BASE-TX ports of which three are Combo ports (RJ45/SFP).
Reset Button
The ES8510has a reset button that you can use to reboot the ES8510 or reset the configuration to the factory
default.
The Reset button is located on the front panel of the ES8510 .
Reset Button
Description
Depress 5 Seconds
This reboots the ES8510 without changing the configuration.
Depress > 10
Seconds
This loads the factory default configuration values into the
ES8510 including the IP address.
Combo Port
LEDs
SFP Ports
Gigabit Ports
Combo Ports
10/100BASE-TX
RS-232 Console
Port
100BASE-FX
Reset
Button
Fast Ethernet Ports
1000BASE-SX/LX
10/100/1000BASE-TX
