70 - Aggregation Status RocketLinx ES8510 and ES8510-XT User Guide: 2000513 Rev. H
Configuration Using the Web Interface
Aggregation Status

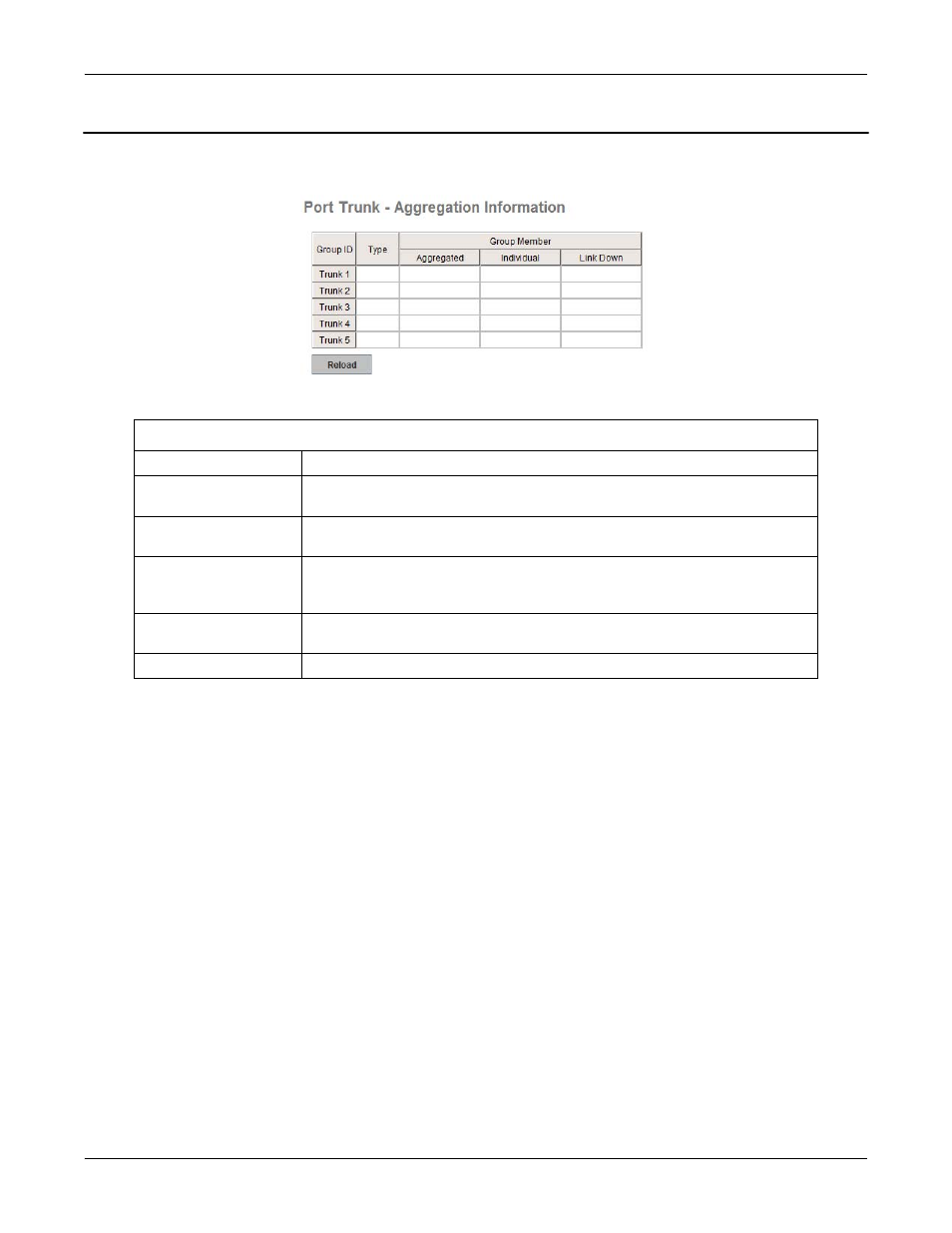

The Port Trunk - Aggregation Information page shows the status of port aggregation. Once the aggregation
ports are negotiated, you see the following status.
Aggregation Status Page
Group ID Displays Trunk 1 to Trunk 5 set up.
Type
The Type is Static or LACP. Static means that LACP is disabled and
configured statically by the Administrator.
Aggregated
When LACP links, you can see the member ports in the Aggregated
column.
Individual
When LACP is enabled, member ports of LACP group that are not
connected to the correct LACP member ports are displayed in the
Individual column.
Link Down
When LACP is enabled, member ports of LACP group that are not
linked up are displayed in the Link Down column.
Reload Click Reload to reload aggregation settings.
