Hardware Installation and Configuration Guide: 2000451 Rev. J Hardware Specifications - 77
Hardware Specifications

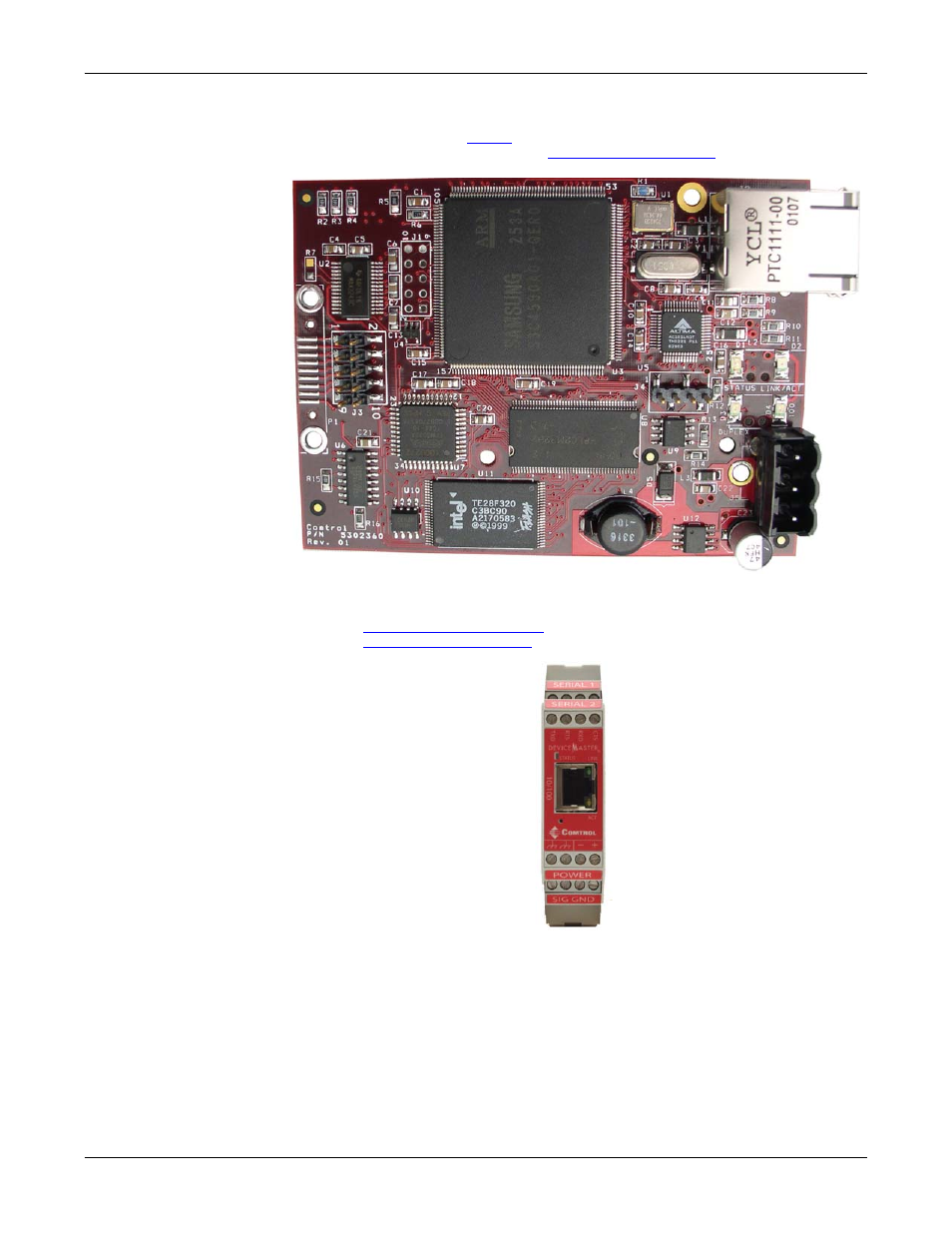

1-Port Embedded This illustrates the DeviceMaster UP 1-port Embedded system that uses a 5-
30VDC power supply. See
1-Port on Page 74 so that you can provide a power
supply for the DeviceMaster UP. See DeviceMaster UP LEDs on Page 84 for
information about the LEDs.
2-Port (Single
Ethernet Port) with
Serial Terminals The DeviceMaster UP 2-port 1E with serial terminals uses a 5-30VDC power
supply. See
2-Port (Serial Terminals) on Page 74 for information about the power
supply. See DeviceMaster UP LEDs on Page 84 for information about the LEDs.
