Installing (or Replacing) Drum Unit

1. Removing a used

drum unit

Do not expose the drum to direct sunlight or strong light.
Do not touch or damage the surface of the drum.
Before starting, turn off the power switch, unplug the power cord and

push down the cover open lever to open the cover

Press the top cover open button to open the top cover.

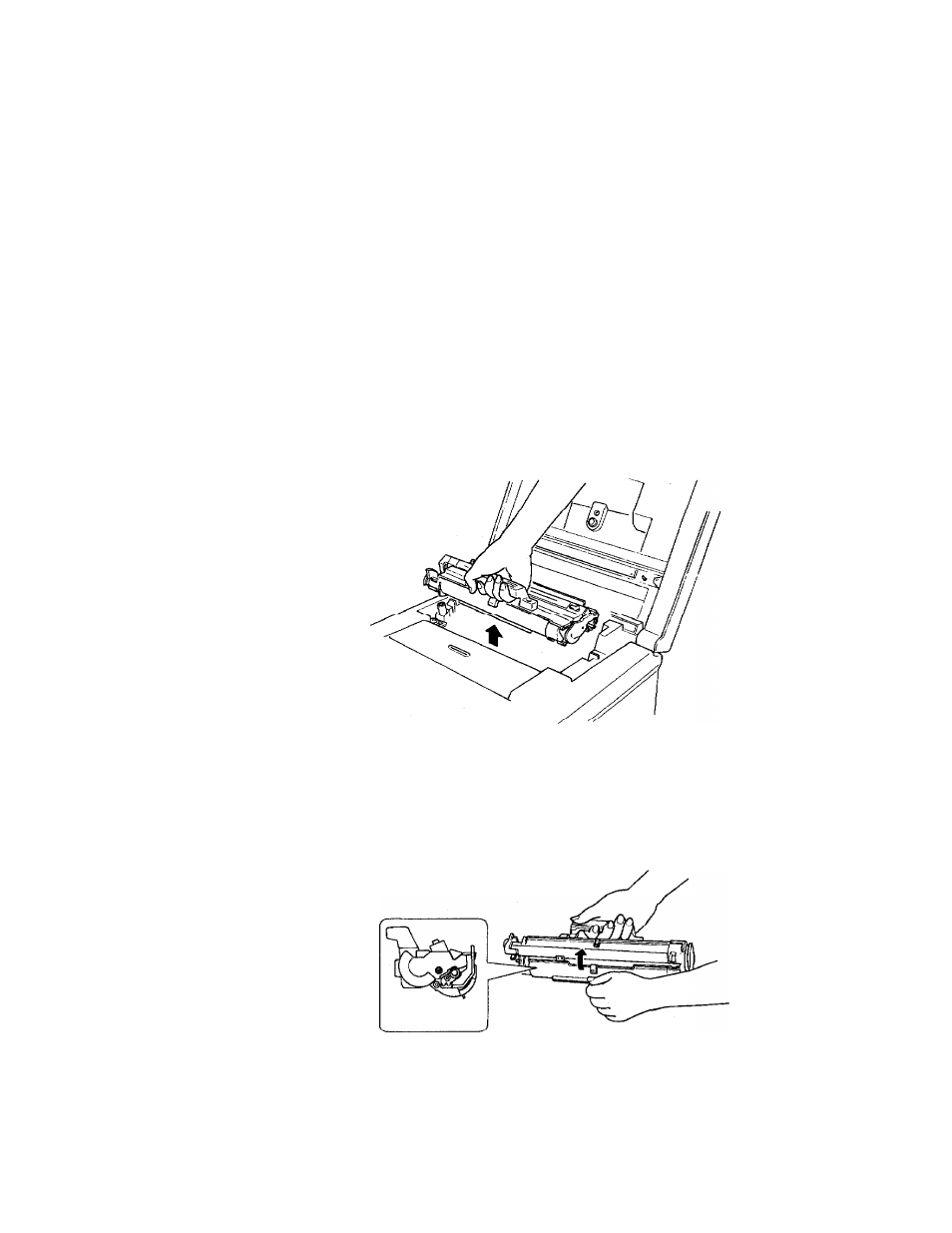

Lift the used drum set upward while holding the grip.
If the drum set housing (transport guide stay, transfer wire) is stained by toner or

any other material, remove the toner unit, then clean the housing with paper.

2. Opening the drum

while holding a new drum set by the hand grip, open the drum cover by pulling

cover of a new

drum unit

in the direction of the arrow as shown. The drum cover should lock back in the

open position.
