Removing Transport Spacers
After unpacking, first remove four transport spacers.
Removing

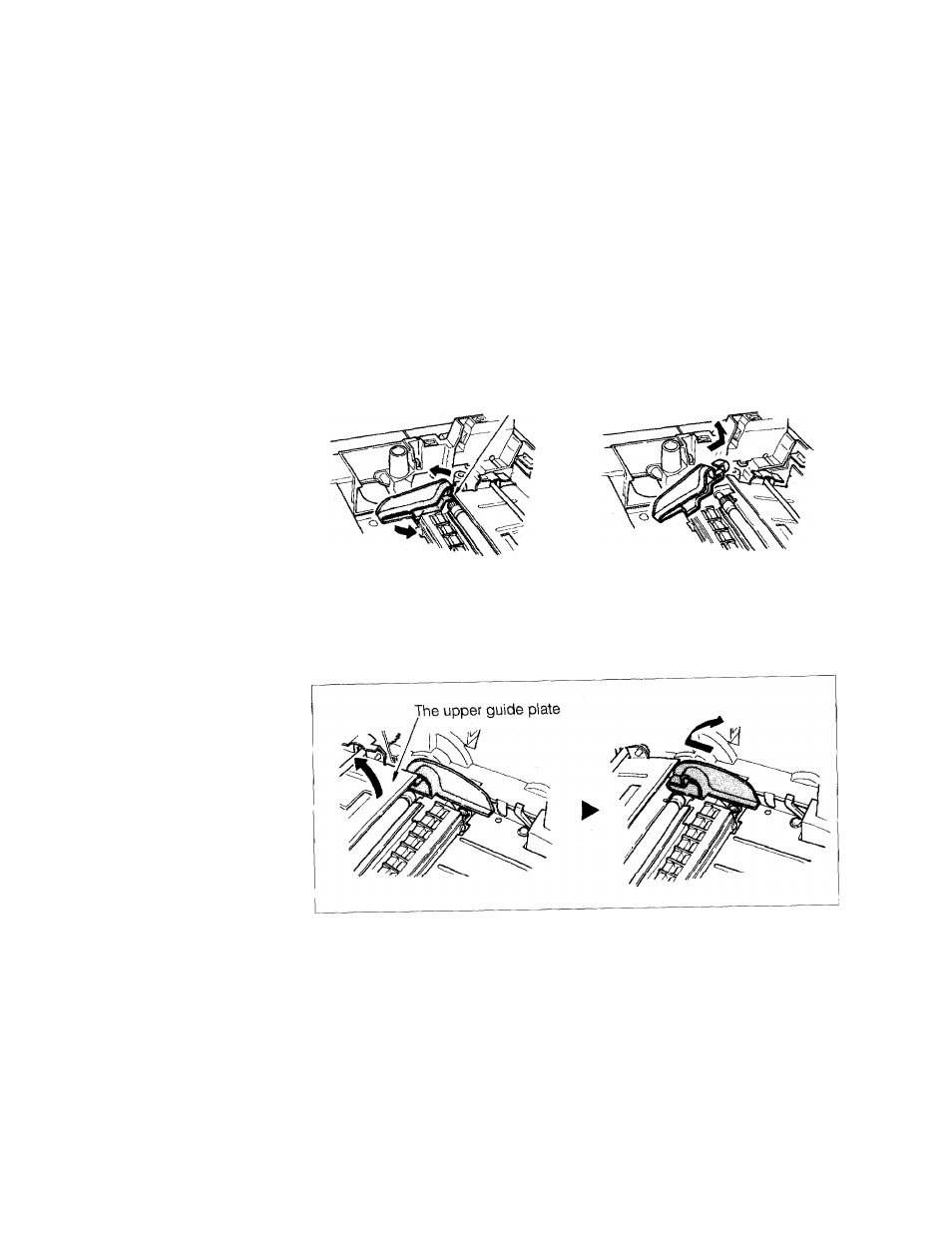

Upper 1. Push the cover release button, and open the top cover.
Guide Plate Spacer
2.
Slightly rotate the spacer on the left to release it, as shown below.
Grip of upper guide plate
3. Lift up the upper guide plate, and remove the spacer as shown at right.
