Installing (or Replocing) Toner Unit

Replacing Toner

Unit

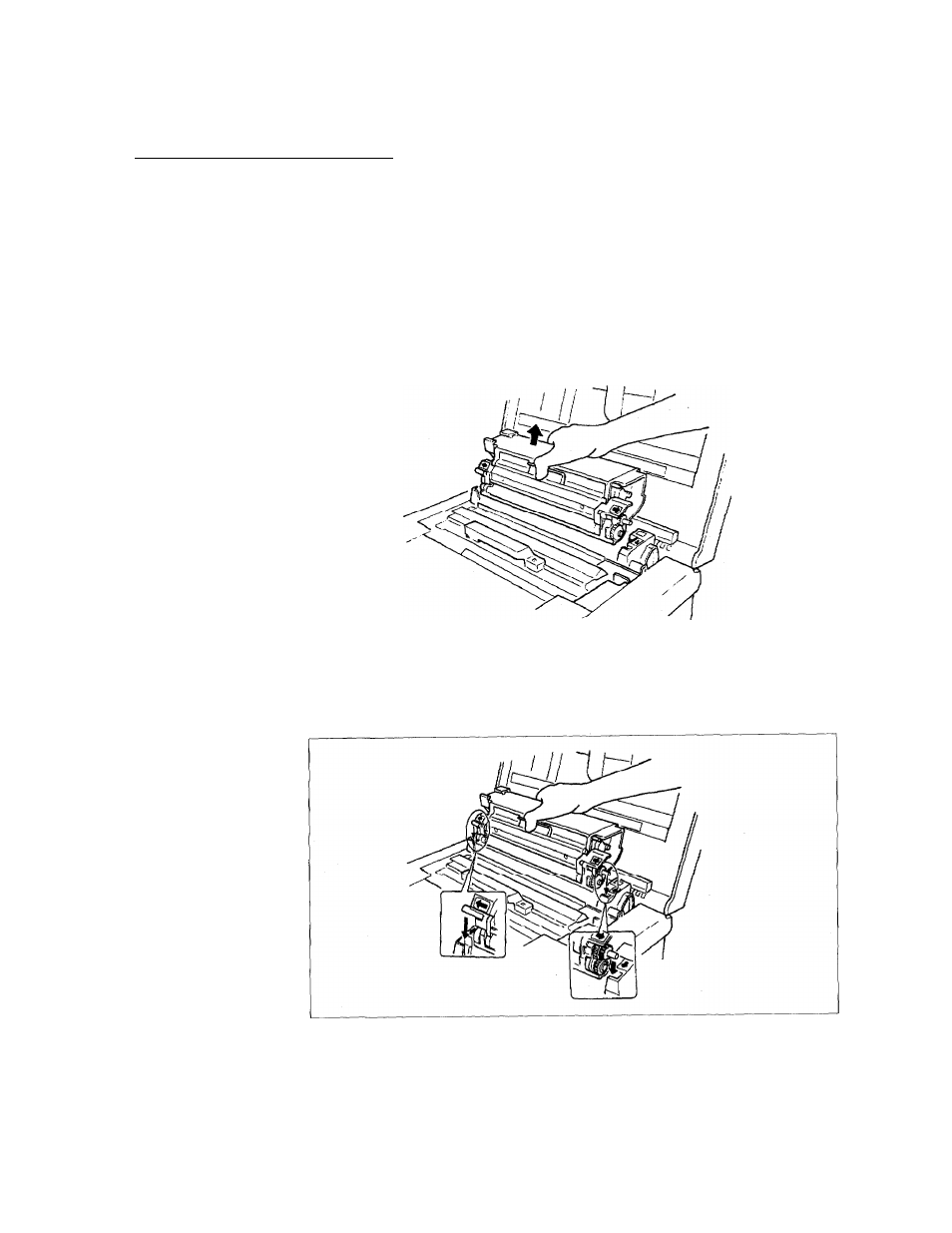

1. Removing a used toner unit

Hold the grip of the used toner unit, and lift it upward.
If the housing of the toner unit (upper guide plate and under guide plate) is
soiled by toner or any other material, remove the drum set, and clean off the
housing with paper.

2. Installing a new toner unit

Hold the grip of the new toner unit.

Engage the left and right projections with the grooves of the main body (see
green arrows), then insert the unit horizontally.

Do not touch the surface of the roller.

1 4
