3-4 Message Communication
3-24
3
C
om
m
uni
ca
tin
g
w
ith
IB
S
er
ie
s

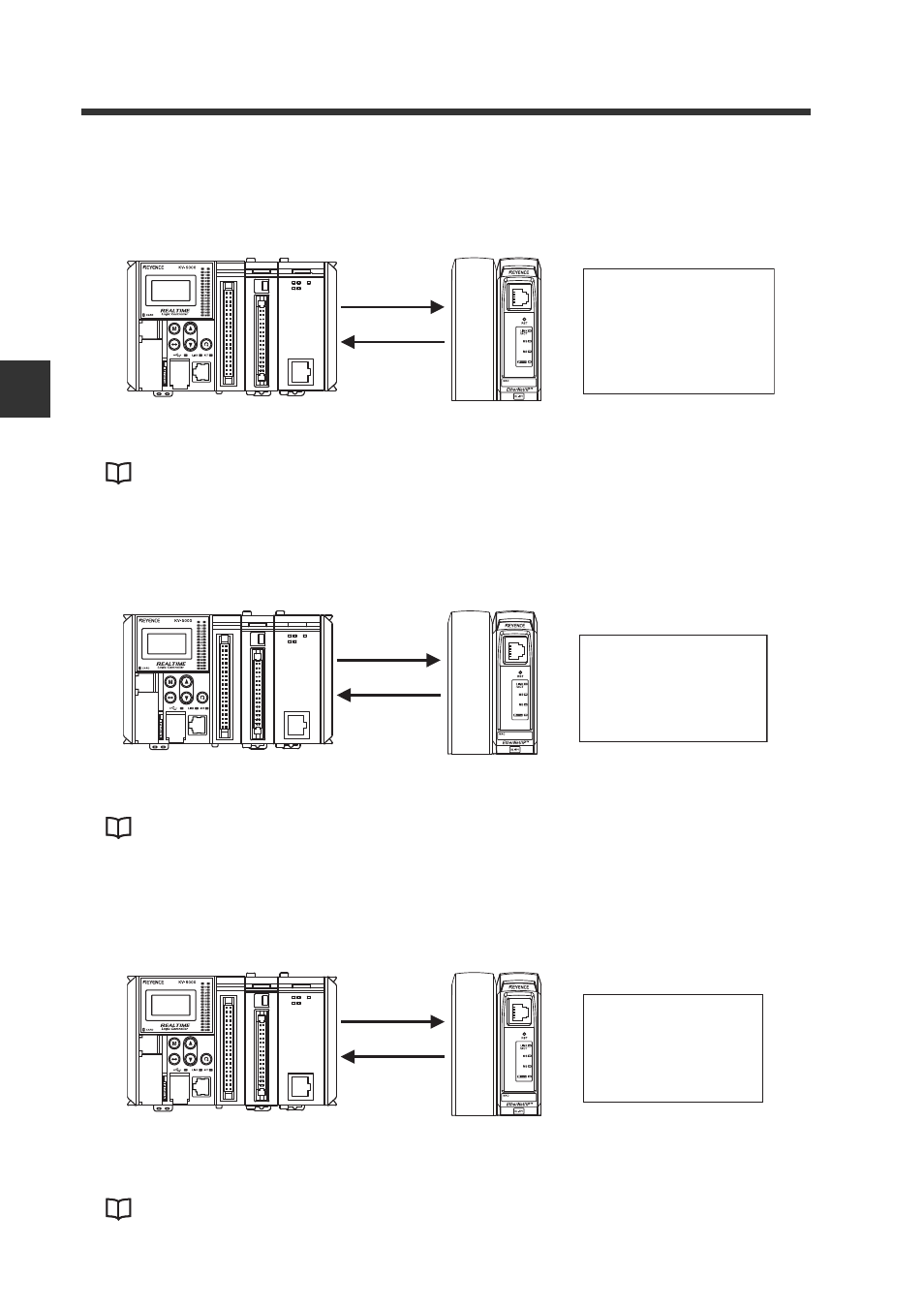

(2) Writing data to a sensor amplifier
Message communication writes parameters to the DL-EP1 and the sensor
amplifier connected to the DL-EP1.
"(2) Writing parameters to a sensor amplifier" (Page 3-54)
(3) Issuing operation commands to a sensor amplifier
Message communication issues operation commands such as preset to the DL-
EP1 and the sensor amplifier connected to the DL-EP1.
"(3) Issuing operation commands to a sensor amplifier" (Page 3-55)
(4) Locking sensor amplifier operations
Message communication locks operations by keys on the sensor amplifier
connected to the DL-EP1.
* If a key is locked, message communication cannot switch a bank.
"(4) Locking sensor amplifier operations" (Page 3-59)
IB
Command:
500
Response
IB
auto hold trigger level: 100500
DL-EP1 Scanner
IB
Command
Response
External input 1
execution by IB
DL-EP1 Scanner
IB
Command
Response
Changes using the
sensor amplifier keys are locked.
DL-EP1 Scanner
