This list could become very lengthy if there are a lot of labels on file. To display the detailed label
information, click on the button to the left of the desired Backup ID.
View by Tape Label ID
To display the backup label in which a physical tape was used, select
View
!Backup Labels!By Tape
Label ID
from the menu bar. A list of tape labels currently associated with backup labels is displayed. Only
tape labels for which the tape ID was written to the tape prior to its use within a backup will be shown.
View by Server
Select
View
!Backup Labels!By Server

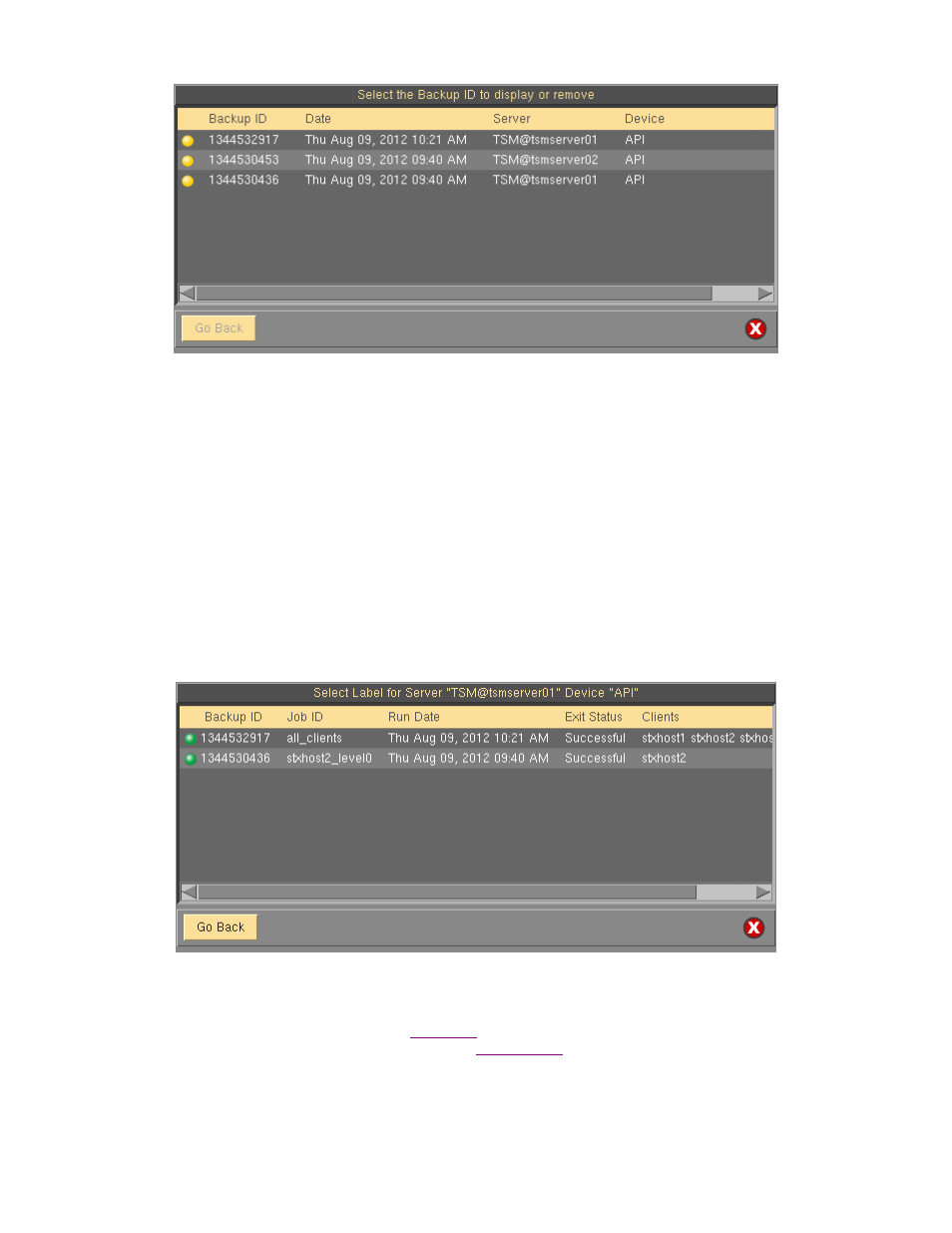

from the menu bar. A list of servers is displayed. Note that, if you
performed a client backup to local tape, the client would be considered the server. Backups to TSM servers
will be shown with the “TSM@” prefix. Select a server from the list to continue. Once you do so, a list of
backups for the selected server is displayed, as shown below:
Note that the color of the button represents whether the backup was successful (
green
) or failed (
red
). A
yellow
button indicates that the job completed successfully, but with warning messages. The Job ID, date and time,
and a list of clients on the media are displayed for each label in the list. To display a label, click the button next
to the Backup ID. The label will be displayed (
). If you want to return to the server and device display
screen, press the
Go Back
button. Otherwise press the
to close this window.
