77
Kontron CG1200 Carrier Grade Server Installation and Maintenance Guide 77

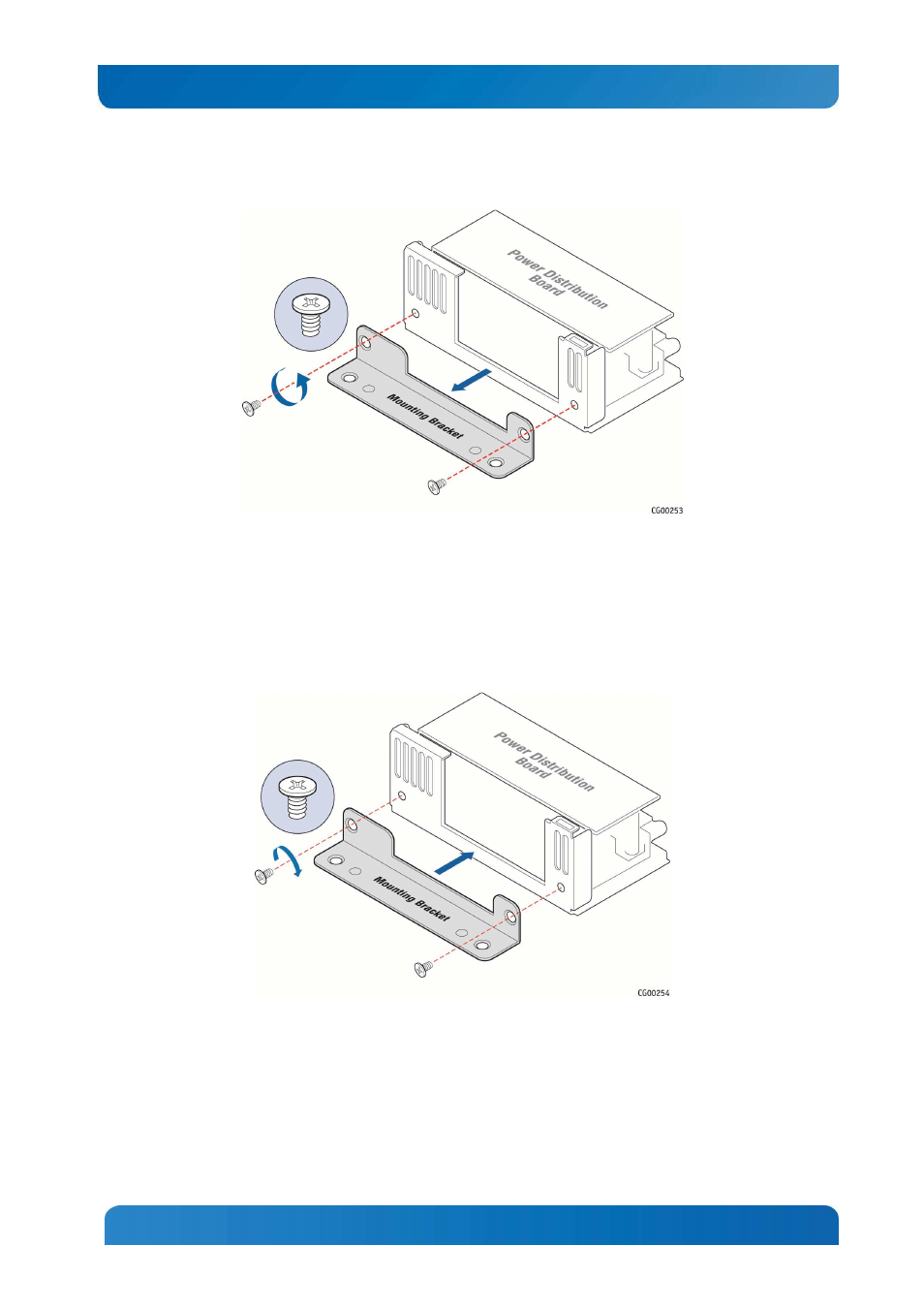

Figure 60: Removing the PDB Mounting Bracket
5.7.2 Installing the New Power Distribution Board
1. Fasten the PDB bracket to the new PDB with the two screws reserved from removing the old PDB.
(Figure 61)
Figure 61: Attaching the PDB Mounting Bracket
2. Place the PDB back into the chassis and fasten the bracket to the chassis floor with the remaining
two screws. (Figure 62, “A” and “B”).
